Inficon Micro GC Fusion 2-Module User Manual

6 | Installation INFICON
114 / 319 074-594-P1H Micro GC Fusion Operating Man-
ual
CAUTION
Ensure the vent tubing is not inclined upward to prevent potential liquid
accumulation in the tubing.

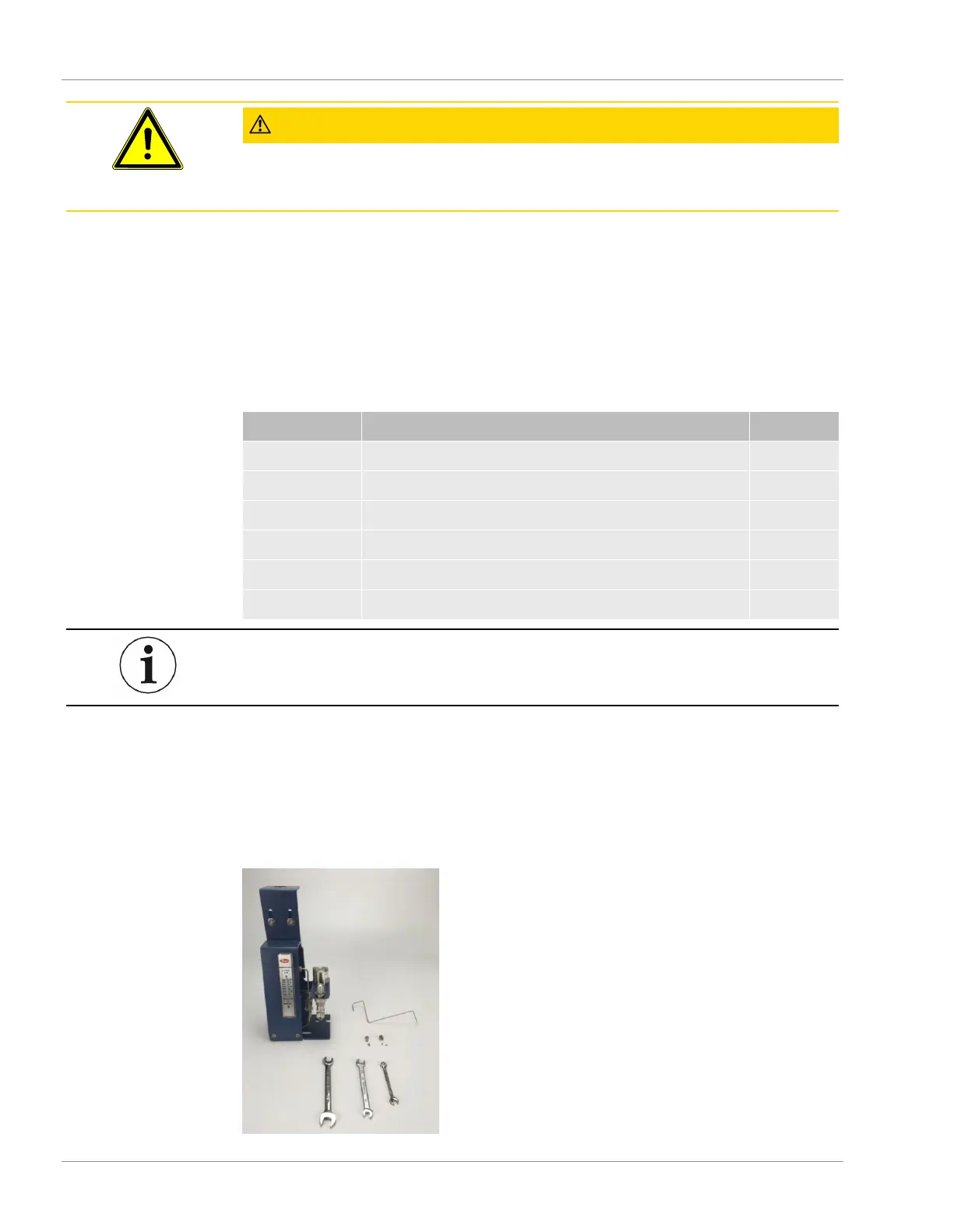

6.15.1 2-Module Micro GC Fusion Chassis Installation - Side
Install
The pressure reducer and gas-liquid separator includes the following items. These
items are needed to install the device on the side of a 2-module Micro GC Fusion
chassis.
PN Description Quantity
059-0696 5/16 in. female nut 1
059-0697 1/16 in. ferrule set 1
059-0336 1/16 in. Valco male nut 1
059-0335 1/16 in. ferrule 1
952-229-G1 sample tube 1
pressure reducer and gas-liquid separator assembly 1
There are three tubes in kit (PN 952-229-G1) and the medium length tube is
used for this installation.
Tools required:
• 3/8 in. open-ended wrench
• 5/16 in. open-ended wrench
• 1/4 in. open-ended wrench
