The following table illustrates the icons on each corner of the front panel display.
Icon Name Enabled on Front
Panel Display (Y/N)
Function
Home Y Return to the main operation screen
Gear Y Access stored report and
chromatogram
Information N Access to Micro GC Fusion Operating
Manual
Wrench Y Access to system status

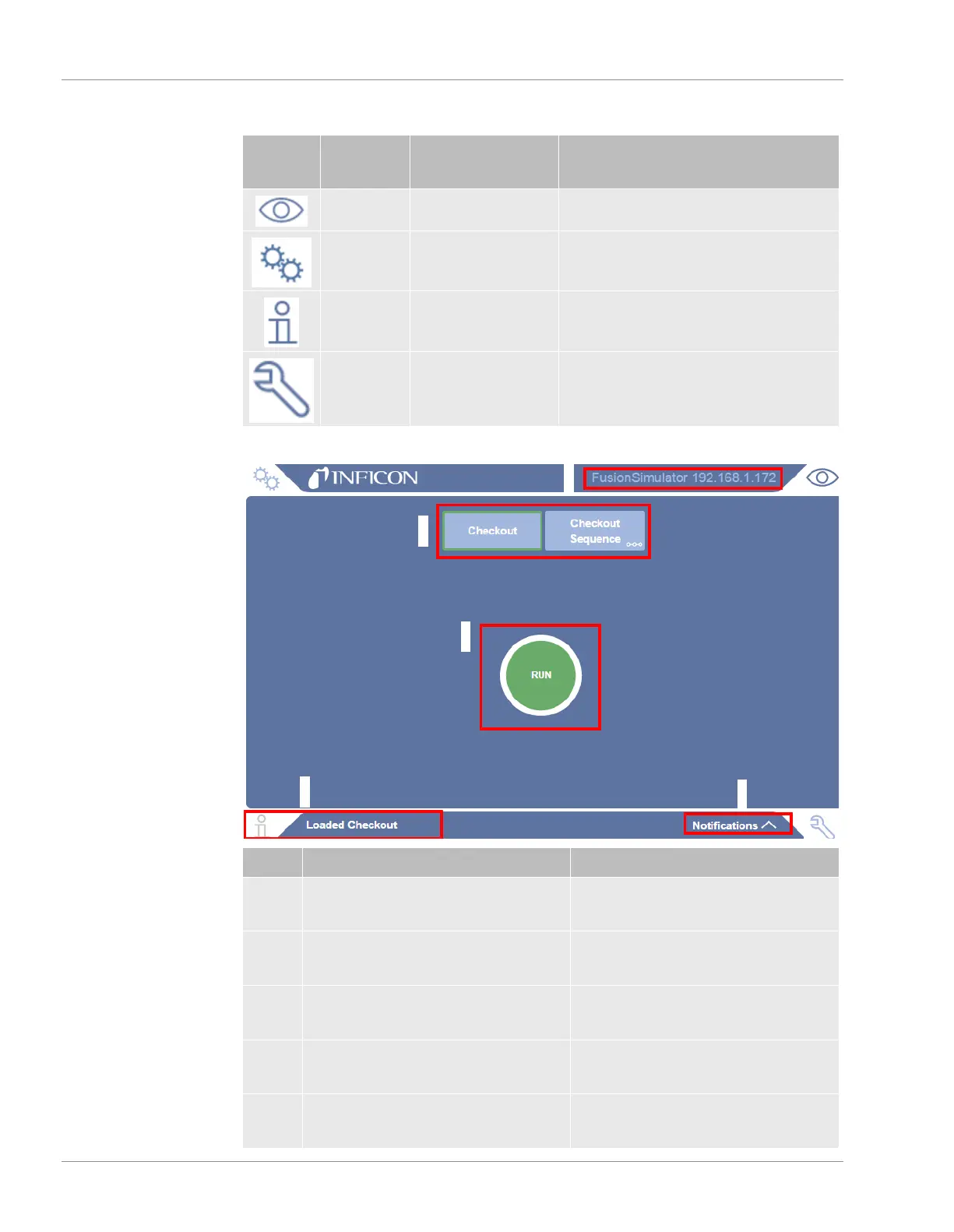

The figure and table below illustrate the labels and buttons on the front panel display.
1
2
3
4
5
Item Name Function
1 Method or Sequence Preset Buttons Provides access to stored methods
or sequences
2 RUN Button Initiates a sample run based on the
loaded method or sequence
3 Method or Sequence Loaded Displays the loaded method or
sequence
4 Notifications Label Displays system status or error
messages
5 Hostname and IP Address Label Displays the instrument network
hostname and IP Address
