Install brackets (PN 952-4005-P2 and 952-4006-P2) onto the 19 in. rack prior to
attaching Micro GC Fusion when access is available from below. Install the rack
mount brackets onto the unit prior to rack installation if access to the underside is
not available.

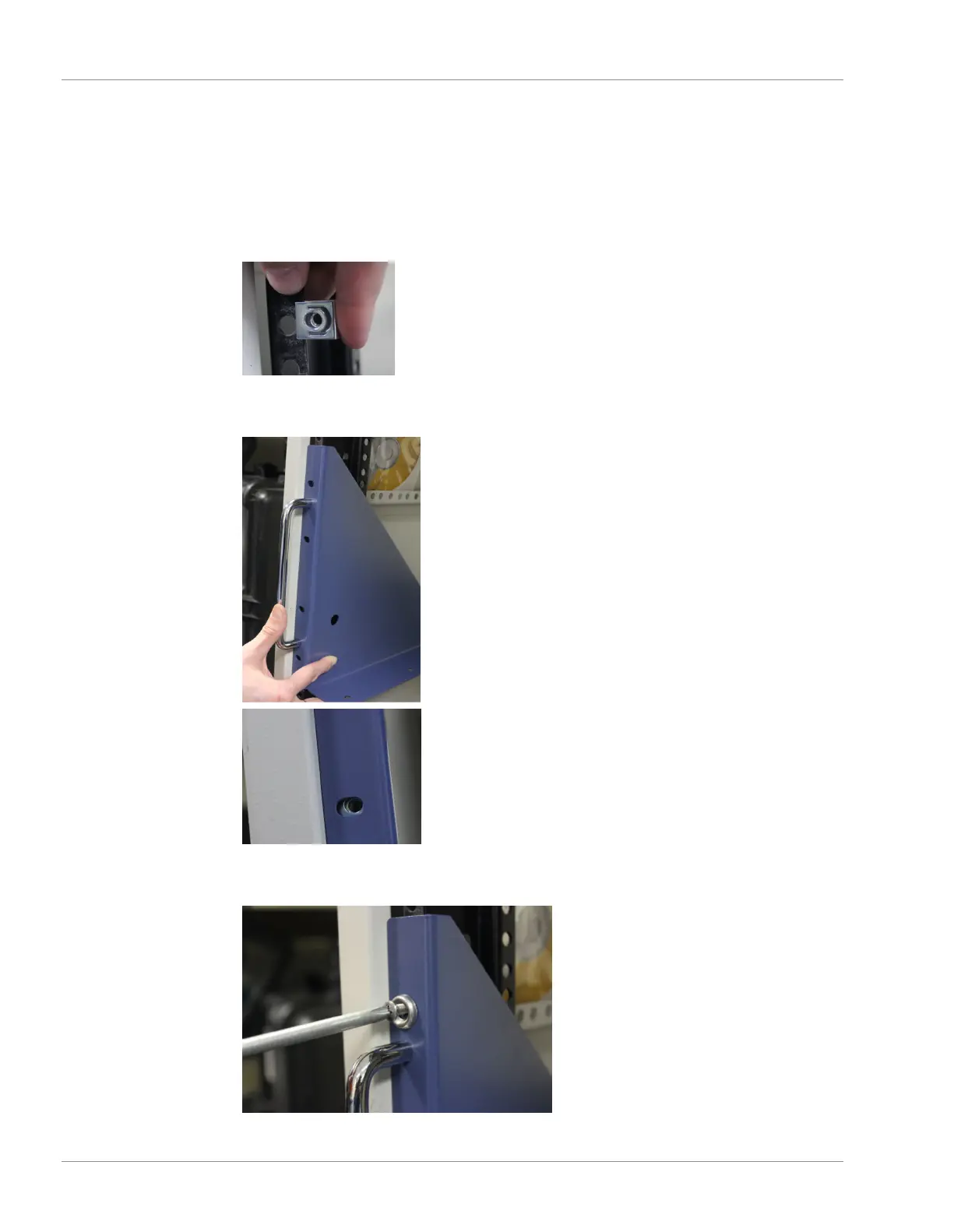

ð Attach the four retainer nuts to the left bracket (PN 952-4006-P2) in the four
hole locations.
ð Place the left bracket (PN 952-4006-P2) on the rack, as shown below, and
line up the holes with the retainer nuts.
ð Thread the oval head screw (PN 090-077) through the washer (PN 070-2028)
as shown, then screw the bracket into the retainer nut.
