6 | Installation INFICON
78 / 319 074-594-P1H Micro GC Fusion Operating Man-
ual
9

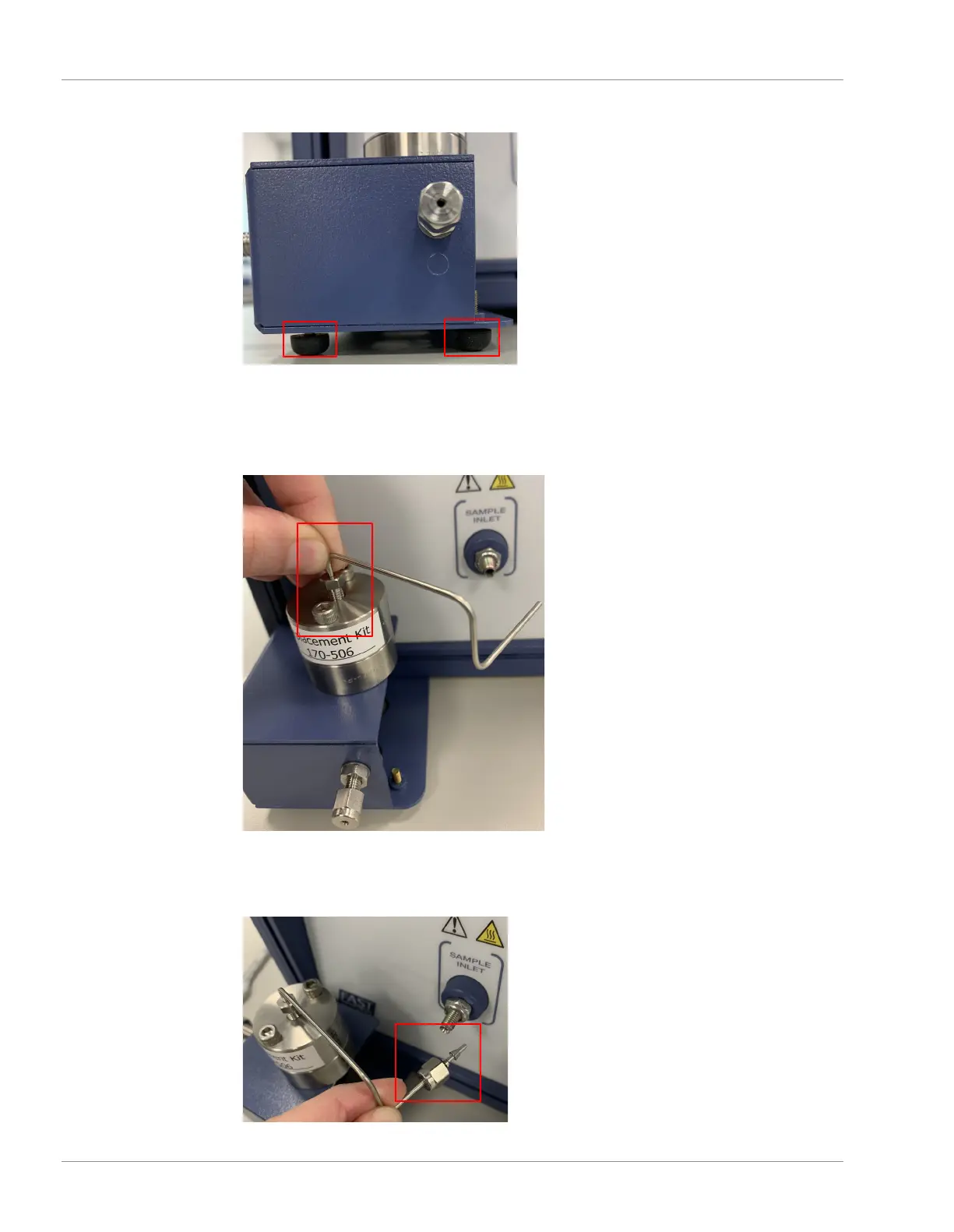

Adjust the front bumpers so that the gas-liquid separator lays flat on the surface.
10
Insert the sample output tubing for the 2-module chassis (952-4029-P4) into the
Valco fitting on the gas-liquid separator. Do not tighten. The tubing should be
loose.
11
Place the 1/16 in. nut (059-0696) and the ferrule set (059-0697) onto the end of
the sample output tubing going to Micro GC Fusion.
