6 | Installation INFICON
96 / 319 074-594-P1H Micro GC Fusion Operating Man-
ual
Pin Function Color
12 Variable GND Black/white
13 GND Red/white
14 Contact closure output FAULT_OUT* Green/white
15 Contact closure output READY_OUT Blue/white
*Not implemented

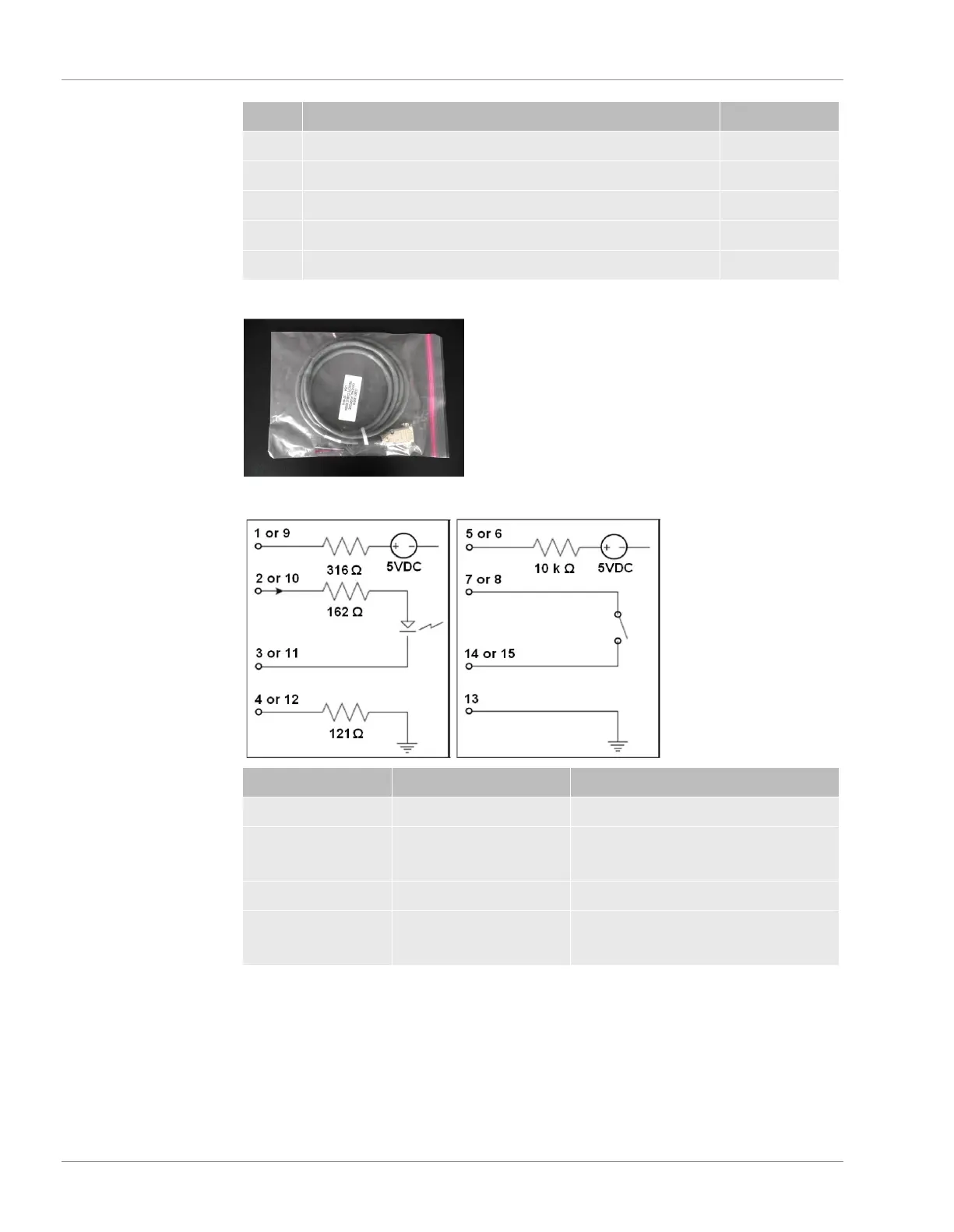

Remote start cable:
Remote start/cancel circuitry:
Purpose Pin Connection Action
Remote Start Pin 1 and pin 2 Connect together to activate circuit
Pin 3 and pin 4 No action when open Trigger
REMOTE_START when closed
Remote Cancel Pin 9 and pin 10 Connect together to activate circuit
Pin 11 and pin 12 No action when open Trigger
REMOTE_CANCEL when closed
If the REMOTE_CANCEL contacts are closed, Micro GC Fusion opens the
READY_OUT relay (pins 8 and 15) to signal the connected device that the run is
terminated.
