How to Use Terminal Block
WARNING
Turn off the power before installing the wire nut connector.

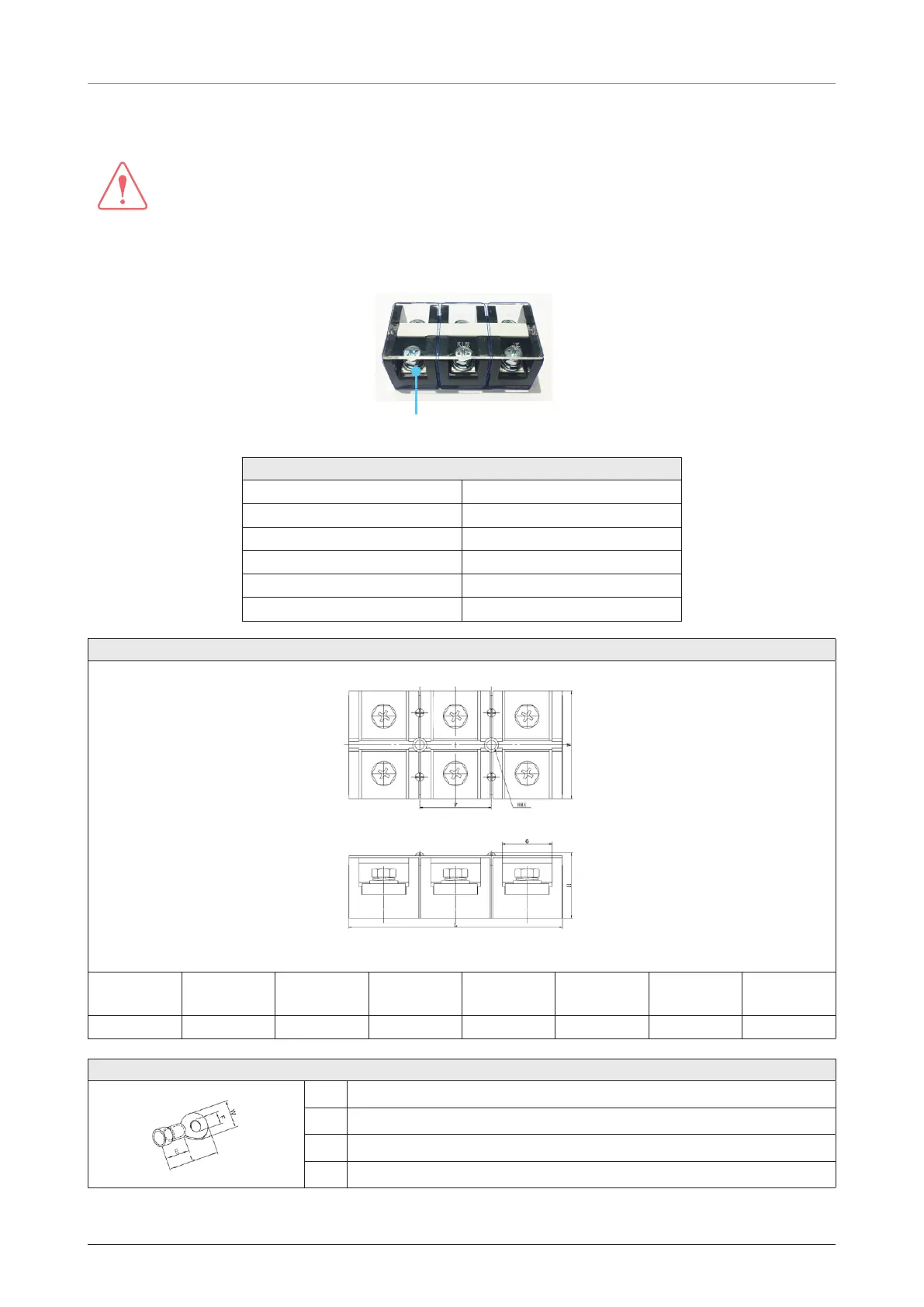

Intellian provides a 3-position double-row barrier terminal block as below.
Terminal Block: KH-6060-3P
Barrier type terminal strip:
3 positions, 6 contacts
Position 1
Position 2 Position 3
KH-6060-3P Specification
Rated Voltage 600 V
Rated Current 60A (250 V)
Insulation Resistance 100MΩ min.
Dielectric Strength 2,500 VAC for 1min.
Wire 22 mm²
Terminal Screw M6
Terminal Blocks Dimension
Rating/Pole F(mm) G(mm) Hole(Ø) L(mm) W(mm) H(mm) Weight
60A 3P 28 16 5.2 85 40 36 142 g
Wiring Lug Dimension
E 14.5 mm
F Min. Ø 6.1
W Max. 16.8 mm
L 35.5 mm
