Invacare Storm 4 - Adjusting the Calf Pad to the Calf Width of the User; Adjusting the Angle of the Foot Plate; Vari-F Footrest; Swivelling the Footrest;Legrest Outward And;Or Removing

Adjustingfootrestsandlegrests

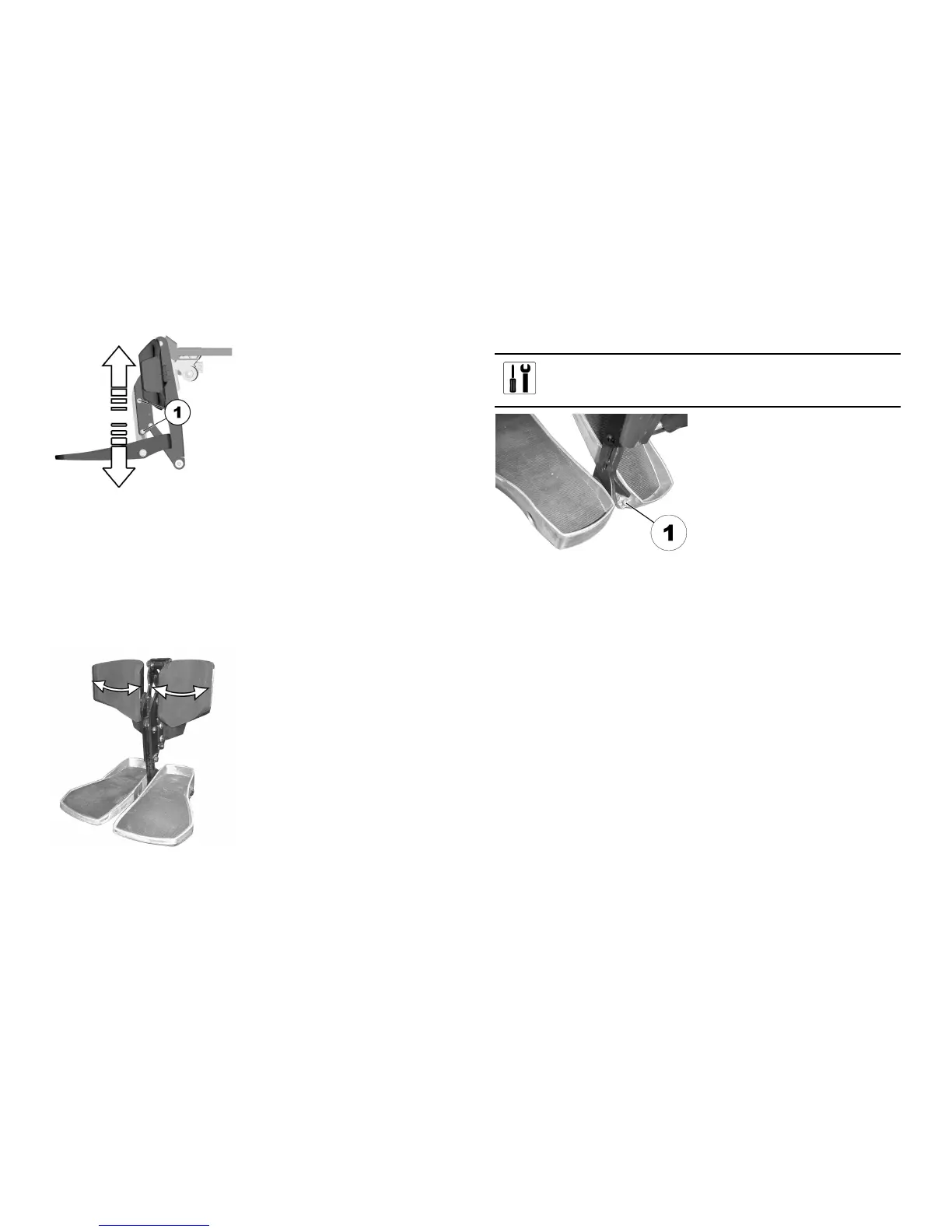

1.Usethesocketheadspannertoloosenthefasteningscrews(1).
2.Slidethefootsupporttothedesiredheight.
3.Tightenthefasteningscrews.
7.2.3Adjustingthecalfpadtothecalfwidthofthe
user
Thecalfpadofthelegrestcanbeadaptedtotheuser’scalfwidthby
bendingapartortogether.
1.Bendingthecalfpadtothedesiredwidth.
7.2.4Adjustingtheangleofthefootplate
Requirements:
•1x5mmsocketheadspanner
1.Foldupthefootplatesinordertoaccesstheadjustingscrews.
2.Usethesocketheadspannertoadjusttheadjustingscrews(1).
3.Foldthefootplatedownagain.
7.3Vari-Ffootrest
7.3.1Swivellingthefootrest/legrestoutwardand/or
removing
Thesmallunlockingbuttonislocatedontheuppersectionofthe
footrest/legrest.Whenthefootrest/legrestisunlocked,itcanbe
swivelledinwardoroutwardwhengettingintothewheelchairas
wellasbeingremovedcompletely.
