4.4.4.9 MATM Attributes - PGM 149
Selecting MATM Attributes will display the MATM Attributes data input page. Enter a valid CO range and click
[Load] to enter the MATM Attributes data. Use the checkboxes to indicate which attributes to modify; data for
checked attributes is stored for the entire range of CO/IP Lines when saved.
Use the checkmark to indicate which attributes to modify; checked attributes are stored by clicking the [Save]
button. These attributes are available for Country code 82.
Enter CO Range: eMG80/100: 1-74 / eMG800: 1-600 / UCP: 1-998

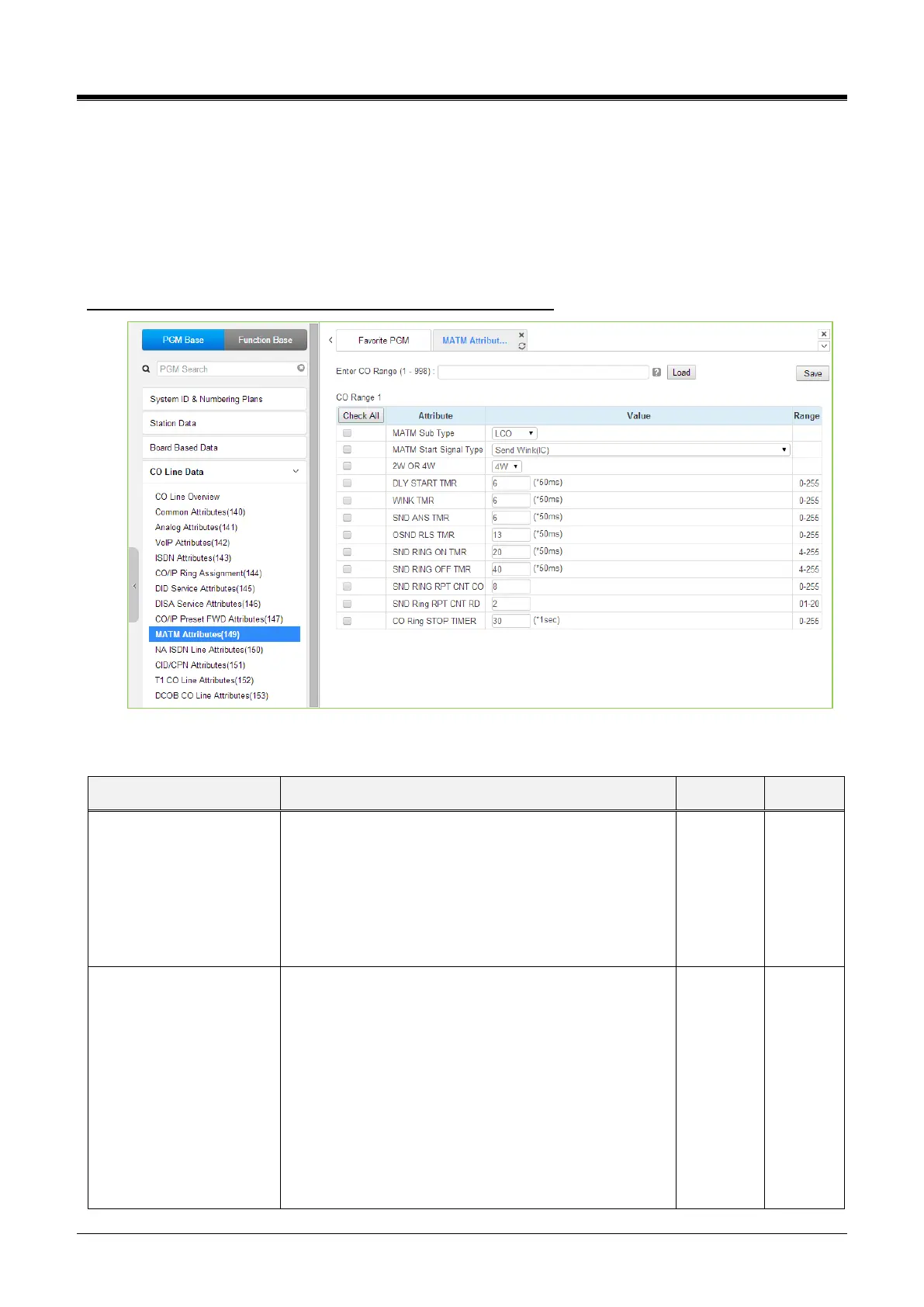

Figure 4.4.4.9-1 MATM Attributes
Table 4.4.4.9-1 MATM ATTRIBUTES
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
MATM Sub Type
This is the analog trunk type for the MATM option board.
 COIU: LCO
 RDIU: RD (ring down, only for the national army)
 LDIU: LD (loop dial, only for the national army)
 EMC: E&M continuous
 EMD: E&M discontinuous
LCO, RD, LD, EMC, EMD, Unused
Refer to
description
LCO
MATM Start Signal Type
This is the signal type for the analog trunk. This should
be set with an alternate trunk type. These can be set by
testing with available values.
 Send Wink (IC), Wait Seize Ack(OG)
 Send Wink (IC) &Wait Seize Ack(OG)
 Send Sub Answer (IC) & Wait Sub Answer(OG)
 Send Wink and Send Sub Answer(IC)
 Wait Ack and Wait Sub Answer(OG)
 Send Wink and Send Sub Answer(IC) & Wait Wink
and wait sub answer(OG)
 Unused Type
Refer to
description
Send
Wink (IC)
