4.4.2 Station Data
Selecting the Station Data group will display the Station Data sub-menu displayed in the left frame below.

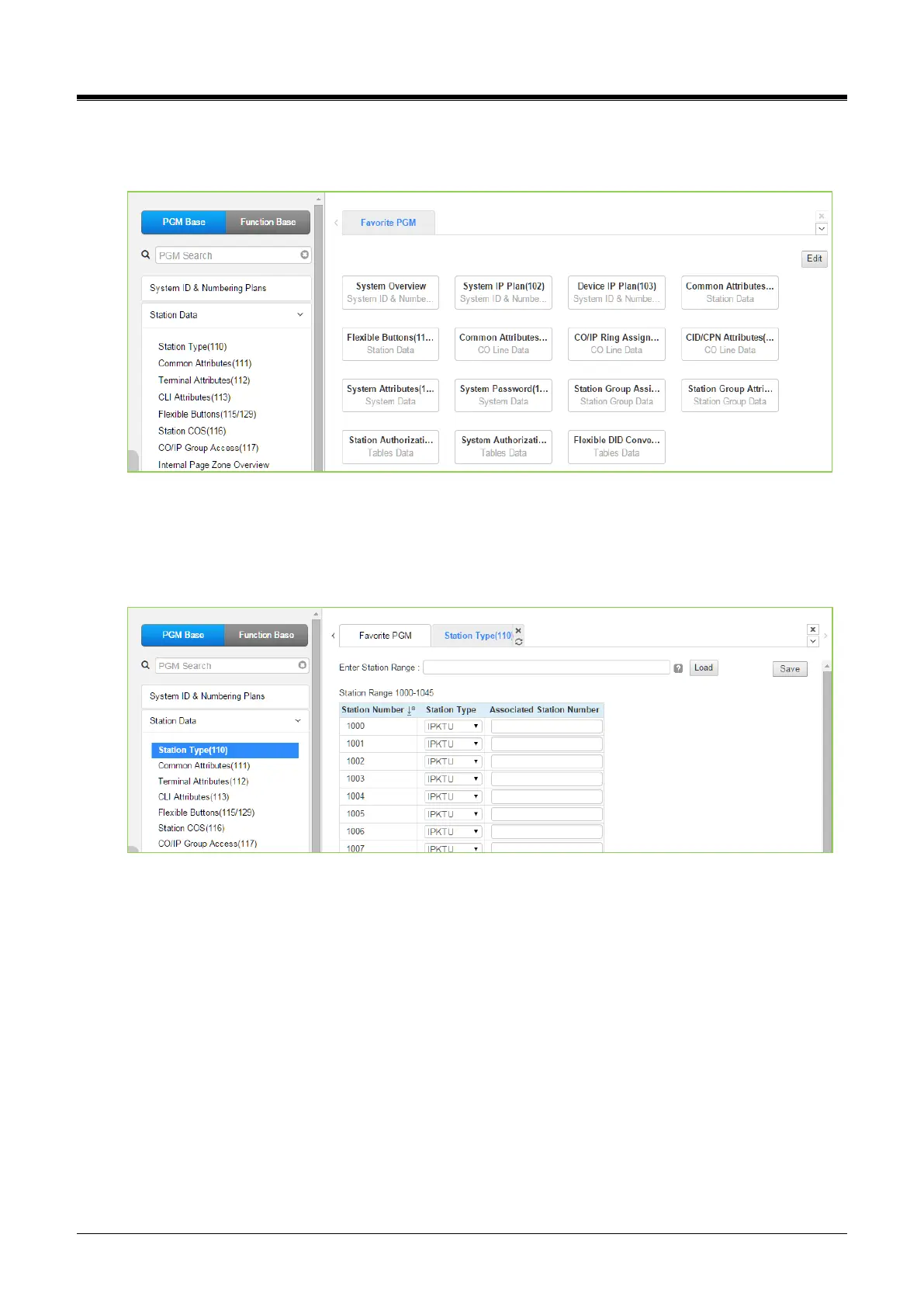

Figure 4.4.2-1 Station Data Main Page
4.4.2.1 Station Type - PGM 110
Selecting Station Type will display the Station Type data input entry page. Enter a valid station range and click
[Load] to modify the Station Type data. Click the [Save] button after changing Value to apply.
Figure 4.4.2.1-1 Station Type
Each station is assigned a type selected from the “Station Type” drop-down menu. The system uses the type
to recognize the station‘s capability and set default Flex button configurations. In addition, for standard iPECS
DSS/BLF consoles, the ‘AssociatedStation Number’ is required, so the system will recognize the station that is
used with the console. Note this is not used with the Serial DSS/BLF Consoles. In the case of selecting SLT
type, there are 6 types as below:
 SLT (DTMF)
 SLT (Pulse)
 SLT (DTMF VOL-MW)
 SLT (Pulse-MW)
 SLT (DTMF FSK-MW)
 SLT (DTMF POL-MW)
