iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
46
4.4.1.6 CO Device Sequence Number - PGM 104
Selecting CO Gateway/board Sequence Number will display the input entry page. Selecting the blue-colored
text in the Table header will sort the table based on the selected column. Click the [Save] button after
changing Value to apply.

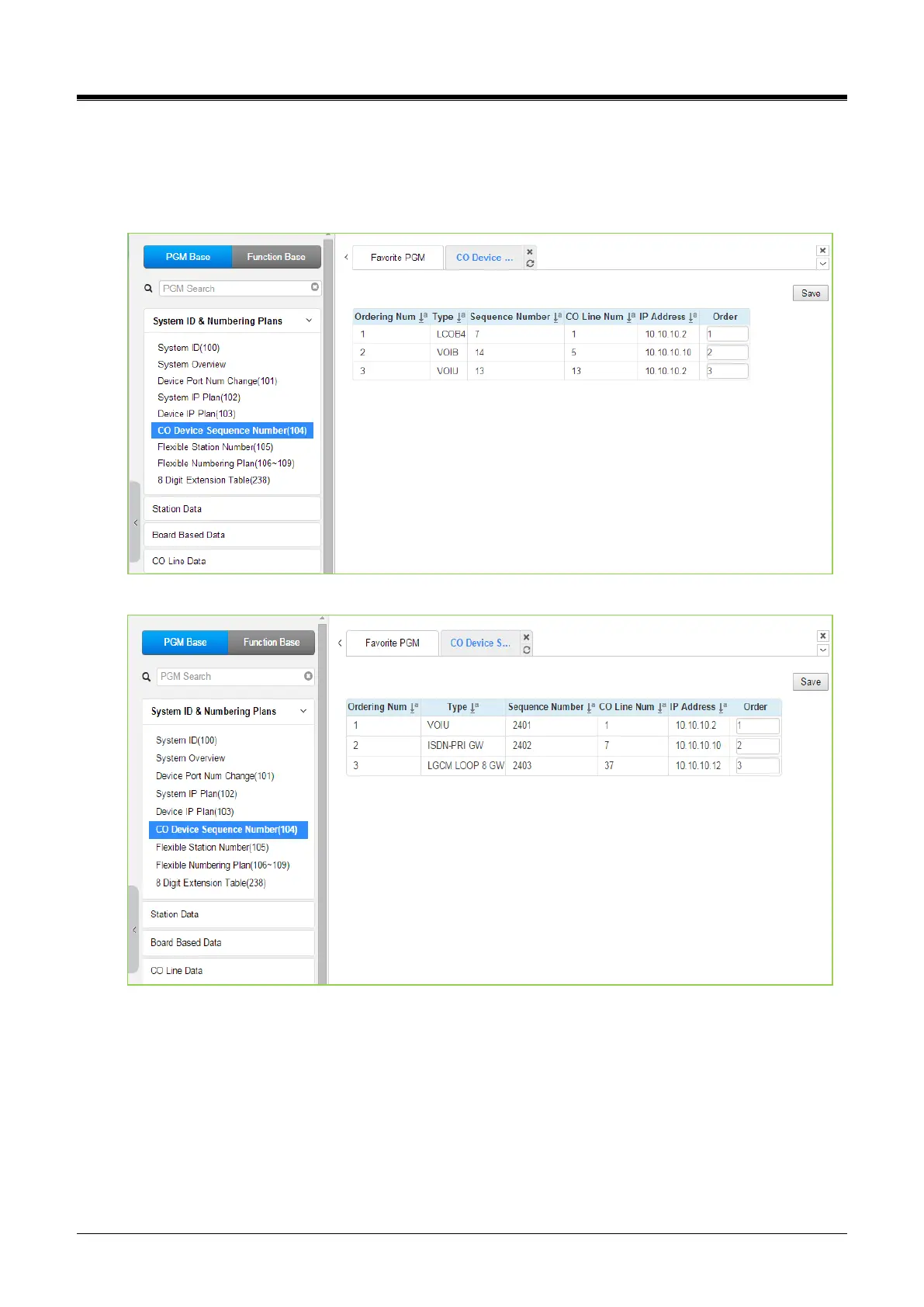

Figure 4.4.1.6-1 eMG CO Device Sequence Number
Figure 4.4.1.6-1 UCP CO Device Sequence Number
The system configures the CO/IP Line numbers as discussed in section 2.3. In the case of eMG, each slot is
assigned the starting CO/IP Line number based on the Order Numbering.
With UCP, each Module is assigned the starting CO/IP Line number based on the registration order.
In place of the default Order Numbering, the “Order” number assigned in this PGM can be used to reorder the
CO/IP numbering.
