4.4.2.5 Flexible Buttons - PGM 115/129
Selecting Flex Buttons will display the Flex buttons data input page. Enter a valid Station range and
click[Load] to enter Flex button data. For convenience, the copy, paste, and drag are available to enter or
modify data. Please click the [Save] button after entering or modifying data to apply.
You can set the initial system default value if there is no assignment in Flexible Button Default Table (239) and
Preset Flexible Button Default (240) by clicking [Default Value]. Otherwise, you can set the flexible button
value according to Flexible Button Default Table (239) and Preset Flexible Button Default (240) by clicking
[Default Value].

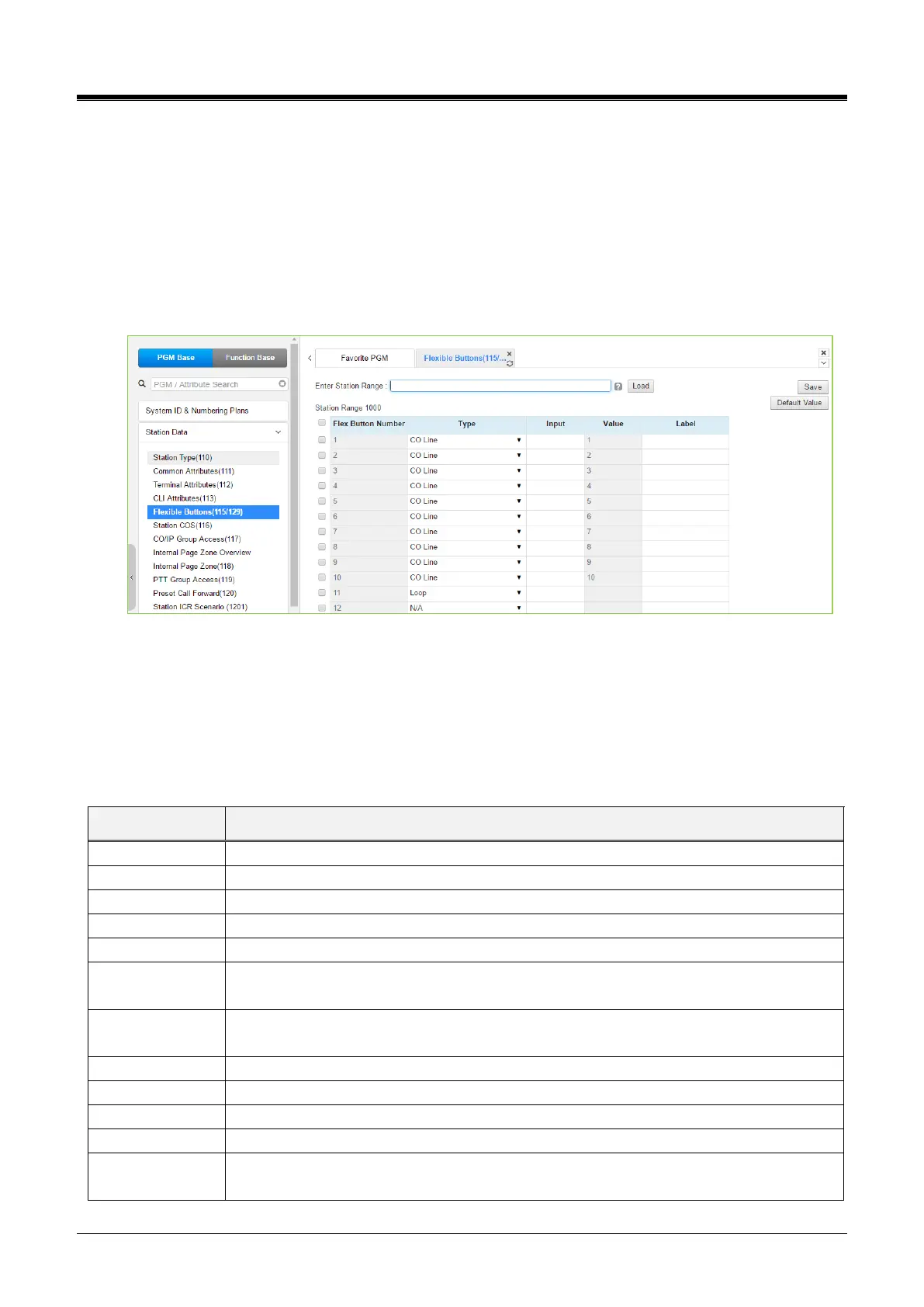

Figure 4.4.2.5-1 Flex Buttons Assignment
Each Flex button for each iPECS IP and LDP Phone and DSS Console can be assigned a function (TYPE) as
below. After selecting the Type for a button, enter the value, if required. The types are available from the drop-
down menu are shown in the table below. In addition, for the LIP Phone models 8040, 8050, 9070, 9071, and
the LSS Console models, a label can be assigned that is used as the designation for the button in the LCD of
the phone.
Table 4.4.2.5-1 FLEX BUTTON TYPE & VALUE
TYPE
REMARK
N/A
Empty (unassigned) may be defined by the user.
CO Line
Assign a button to access a defined CO/IP line.
CO Group
Assign a button to access a free line in the CO/IP Group.
Loop
Assign a button to access a loop line.
Station Number
Assign a button as DSS/BLF for the assigned station number.
Programming
(Numbering Plan)
Assign a button to dial a code from the Flexible Numbering Plan. See Appendix section.
Programming
(PGM)
Assign a button to perform a User Program function from the Fixed Numbering Plan,
Appendix section.
Station Speed
Station Speed Dial bin.
System Speed
System Speed Dial bin.
Net Station
Refer to Network Numbering Plan Table - PGM 324.
U-Loop
U-Loop button for call wait of internal & external call
Dial Digit
The user can assign the desired number on the Flexible button by selecting 'Dial Digit' in
the field of Type. The user can make a call by pressing the assigned flexible button.
