4.4.5.25 SMDR Attributes - PGM 177
Selecting SMDR Attributes will display the SMDR Attributes data entry page. Click the [Save] button after
changing Value.

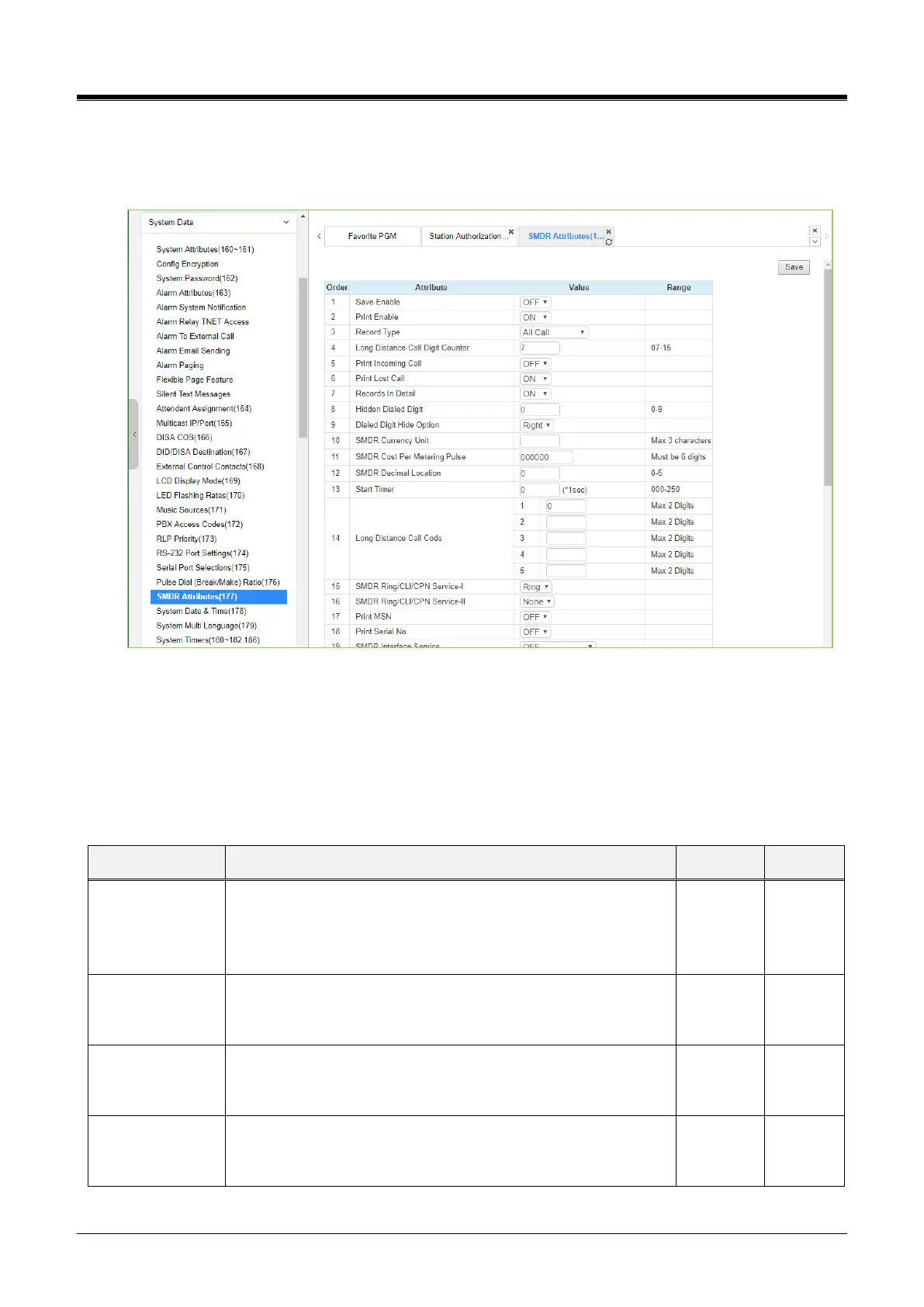

Figure 4.4.5.25-1 SMDR Attributes
Station Message Detail Recording (SMDR), which is output over a RS 232 port or TCP channel, contains both
incoming and outgoing calls. Various SMDR attributes can be assigned, including; output records for all calls
or LD only, call cost per pulse when using call metering, etc.
Refer to the following table for a description of each Attribute and the data entries required.
Table 4.4.5.25-1 SMDR ATTRIBUTES
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
Save Enable
The system can output all outgoing call records (ON) or allow for
PSTN call set-up times, only records for calls exceeding the
SMDR Timer (OFF). For SMDR Timer settings, refer to “Start
Timer” as the below.
OFF
ON
OFF
Print Enable
The system can output SMDR records automatically as they
occur (real-time) or only when requested. When this attribute is
ON, SMDR is sent at call completion.
OFF
ON
ON
Record Type
The system can record all outgoing calls or only long-distance
calls. The LD digit count and LD codes are assigned in “Long
Distance code.”
Long
Distance/
ALL calls
Long
Distance
Long Distance Call
Digit Counter
Dialed numbers, which exceed the assigned LD digit count have
been considered long-distance calls for SMDR and COS
purposes.
07-15
07
