jcb 19C-1E User Manual

Maintenance
Access Apertures
C Hinge pin
3. Disconnect the stay bar from the retaining bracket by lifting the stay bar out of the slot.
4. If necessary, hydraulic compartment cover can be detached from the rear counterweight door by lifting the
cover assembly off the cover hinge pin. Refer to Figure 97.
5. Remove the safety pin. Refer to Figure 98.
6. Pull the quick release latch lever. Refer to Figure 98.

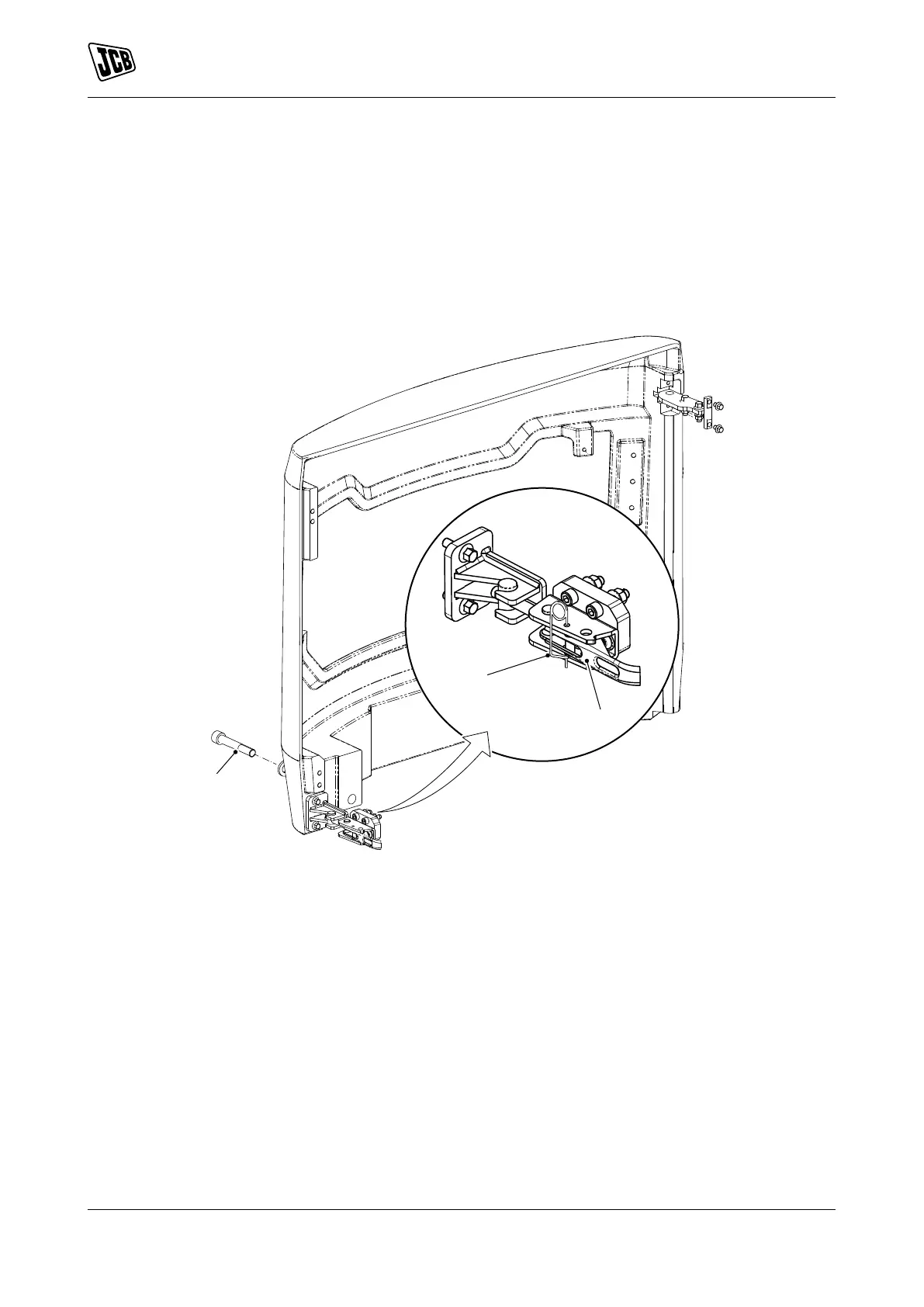

Figure 98.
A
B
C
A Quick release latch lever B Safety pin
C Bolt
7. Remove the bolt if installed for attaching the counterweight door to the chassis of the machine. Refer to
Figure 98.
8. If installed, disconnect the counterweight door retaining strap.
122 9831/8250-4 122
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
