SECTION 6 - TECHNICAL DATA
NOTE:
Placement on a level surface of free of obstructions (including snow, for
winter operation) or air circulation ensures rated performance, reliable
operation, and ease of maintenance. Site restrictions may compromise
minimum clearances indicated below, resulting in unpredictable airow
patterns and possible diminished performance. Johnson Controls
unit controls will optimize operation without nuisance high-pressure
safety cutouts; however, the system designer must consider potential
performance degradation. Access to the unit control center assumes
the unit is no higher than on spring isolators. Recommended minimum
clearances: side to wall – 2m; rear to wall – 2m; control panel to end
wall – 1.2m; top – no obstructions whatsoever; distance between
adjacent units – 3m. No more than one adjacent wall may be higher
than the unit.
Models YCIV0177E/V, YCIV0177S/P, YCIV0187E/V and YCIV0187S/P

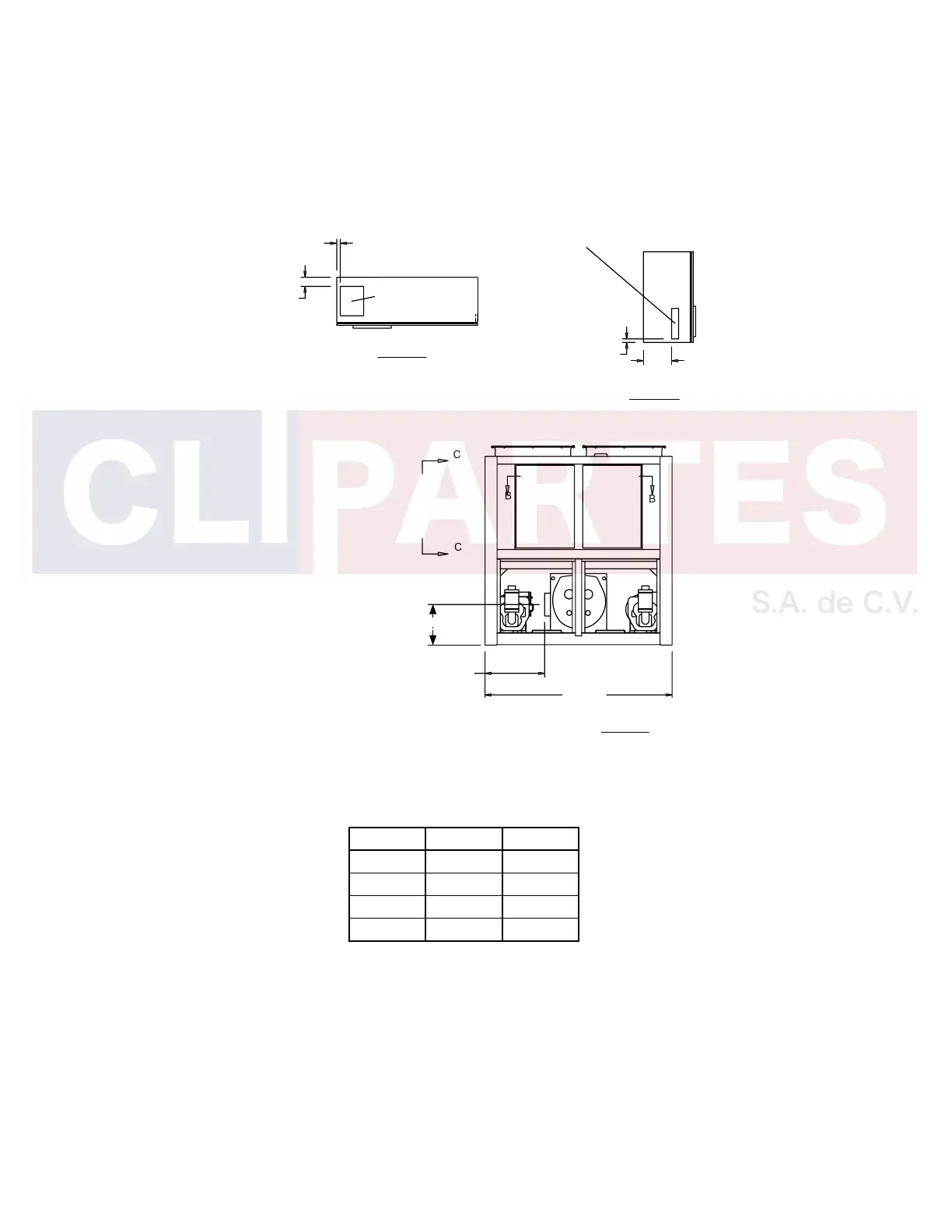

DIMENSIONS - 2 AND 3 COMPRESSOR ENGLISH (CONT'D)
VIEW C-C
VIEW B-B
12"
3" WIDE X 13 1/2" HIGH
1 1/2"
4"
POWER ENTRY
10" WIDE X 13" HIGH
1 3/4"
POWER ENTRY IS ON BOTTOM OF PANEL
88 1/8"
28 1/8" (EDGE OF UNIT
TO COOLER
CONNECTION)
19 1/8"
C
C
B
B
VIEW A-A
POWER ENTRY
10" WIDE X 13"
HIGH
YCIV A B
0177E/V 88.1" 274.0"
0177S/P 80.0" 230.0"
0187E/V 88.1" 274.0"
0187S/P 88.1" 274.0"
19 -1/8"
28-1/8" (EDGE OF
UNIT TO COOLER
CONNECTION)
