5.3.2 Raise the load from the front (standard attachment only)
Requirements
– Prepare the truck for operation, see page 138 or see page 139.
– Load unit correctly palletised.
– Fork spread for the pallet checked and adjusted if necessary, see page 193.
– Load unit weight does not exceed the truck's capacity.
– Forks evenly loaded for heavy loads.
– Good ground conditions.
Procedure
• Press the deadman button.
• Drive carefully up to the storage location.

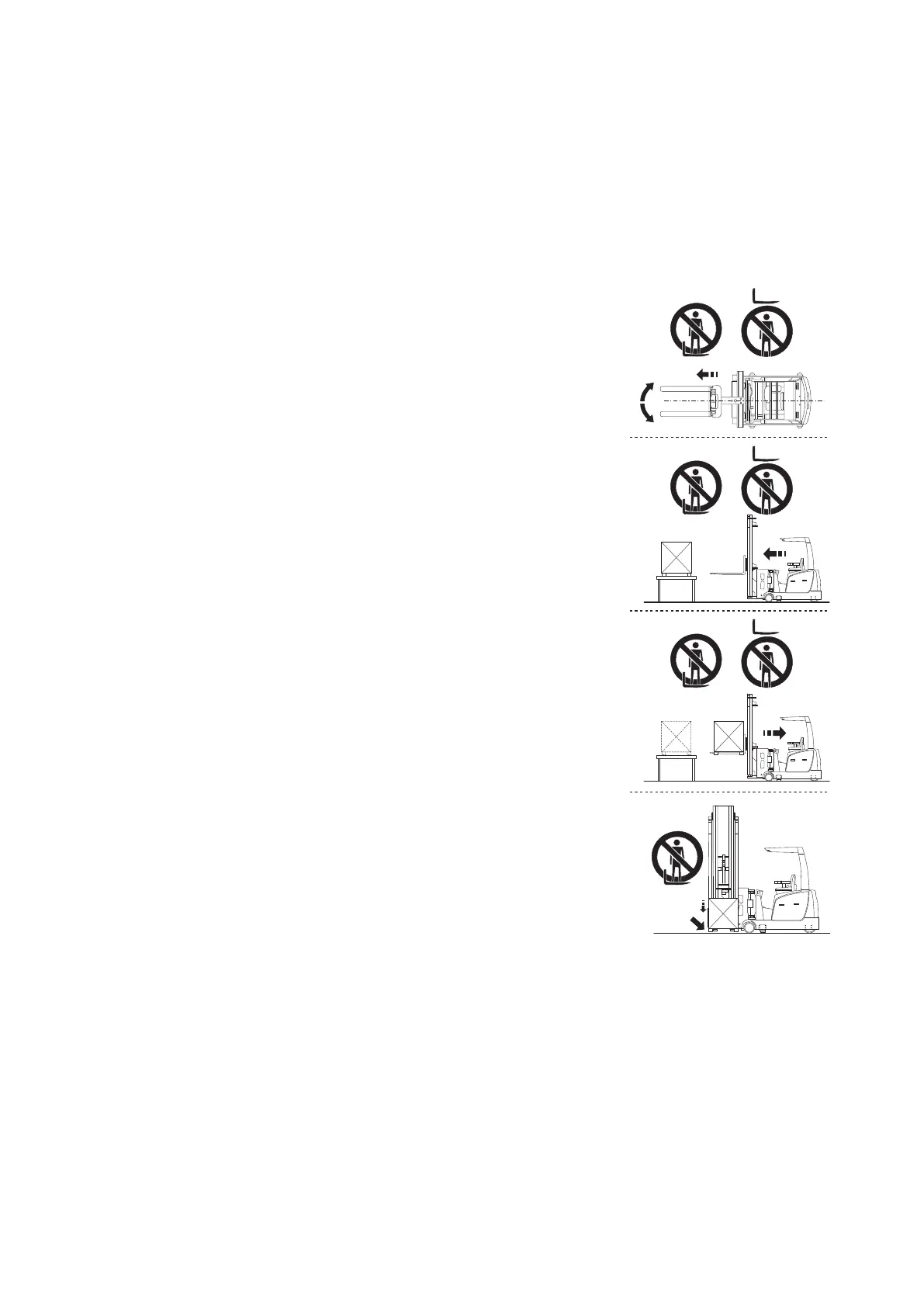

• Set the attachment to the "front lifting" position:
• Do not press the deadman switch.
• Traverse the attachment to the centre position, see
page 177.
• Rotate the forks so that they are at right angles (90°)
to the truck, see page 178.
• Press the deadman button.
• Lower/raise the load handler so that the load can be
lifted.
• Slowly insert the forks into the pallet until the fork shank
touches the load or the pallet.
Z
The load unit must not extend by more than 50 mm
beyond the fork tines.
• Raise the load handler slightly until it rests freely on the
forks.
• Make sure you can see behind you and that you have
sufficient space to move. Now reverse the truck slowly
until the load is clear (e.g. out of the rack).
• Do not press the deadman switch.
• Slowly traverse and rotate the forks in the home
position, see page 192.
• Press the deadman button.
• Make sure you have a clear view and sufficient area to
move in.
• The load can now be transported with the truck, see
page 202.
The load has been lifted correctly.
