Juniper EX3300 Complete Hardware Guide

NOTE: One person must be available to lift the switch while another secures
the switch to the rack.
CAUTION: If you are mounting multiple units on a rack, mount the heaviest
unit at the bottom of the rack and mount the other units from the bottom of
the rack to the top in decreasing order of the weight of the units.
To mount the switch on four posts in a rack:
1. Remove the switch from the shipping carton (see “Unpacking an EX3300 Switch” on
page 82).
2. Attach the front-mounting brackets (either the flush or the 2-in.-recess brackets) to
the side mounting-rails using six 4-40 flat-head Phillips mounting screws. See
Figure 24 on page 88.

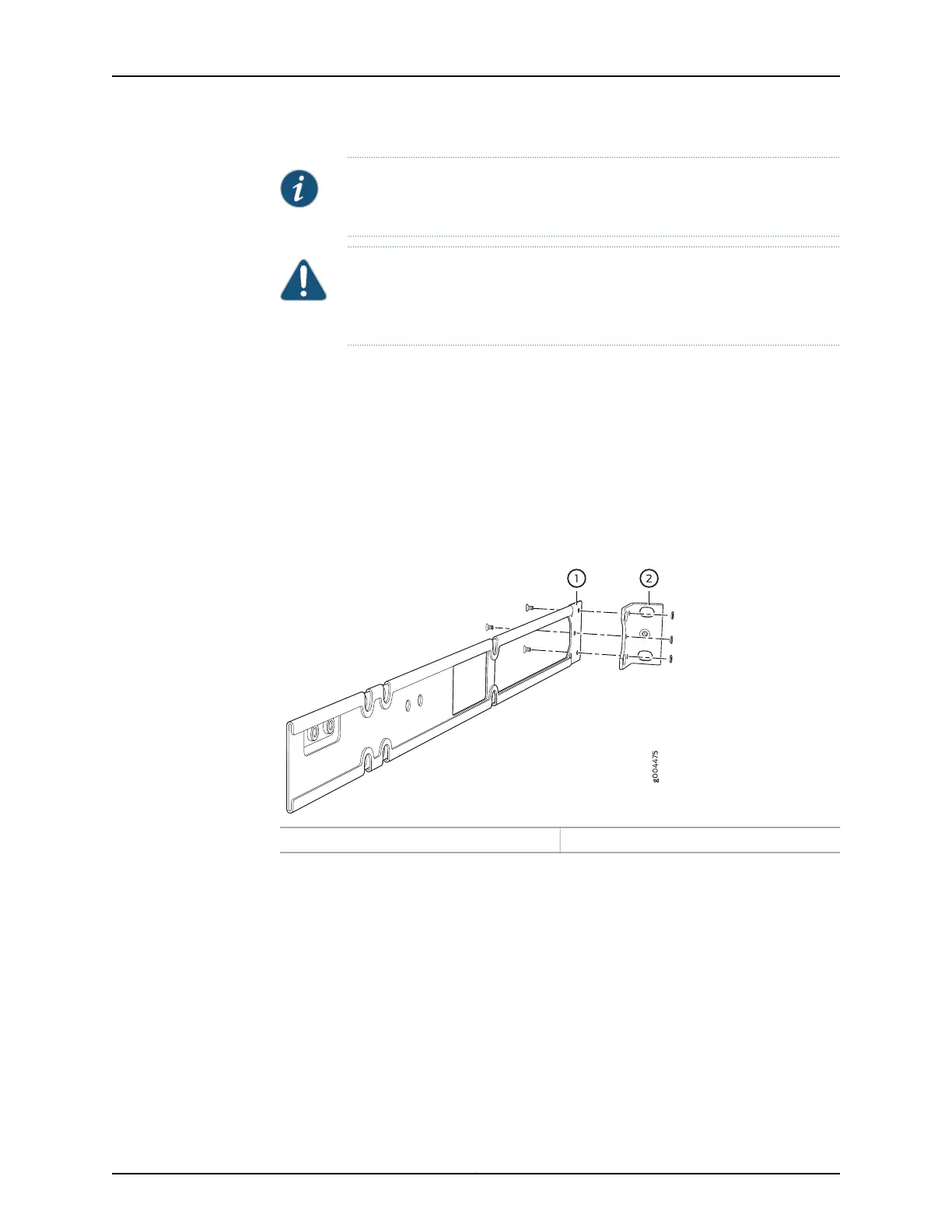

Figure 24: Attaching the Front-Mounting Bracket to the Side Mounting-Rail
2—1— Front-mounting bracketSide mounting-rail
3. Place the switch on a flat, stable surface.
4. Align the side mounting-rails along the side panels of the switch chassis. Align the
two holes in the rear of the side mounting-rails with the two holes on the rear of the
side panel.
5. Insert 4x6-mm Phillips flat-head mounting screws into the two aligned holes and
tighten the screws. Ensure that the two holes in the rear of the side mounting-rails
are aligned with the remaining two holes in the side panel. See Figure 25 on page 89.
Copyright © 2015, Juniper Networks, Inc.88
Complete Hardware Guide for EX3300 Ethernet Switches

Juniper EX3300 Specifications

General

Ethernet LAN	Yes
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Ethernet interface type	Gigabit Ethernet
Number of VLANs	4096
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Console port	-
ExpressCard slot	No
Fiber ports quantity	4
USB 2.0 ports quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Throughput	130 Mpps
Number of queues	8
MAC address table	16000 entries
Maximum data transfer rate	176 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Switch type	Managed
Switch layer	L2
Security algorithms	SSH-2
Power source	AC
AC input voltage	100 - 240 V
Power consumption (typical)	100 W
Form factor	1U
Product color	Black
Flash memory	1024 MB
Processor frequency	1000 MHz
Compatible operating systems	Junos
Operating altitude	0 - 3049 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Supported network protocols	IPv6

Weight and Dimensions

Depth	310 mm
Width	437 mm
Height	44 mm
Weight	4900 g
