To connect and configure the switch by using the J-Web interface:
1. Transition the switch into initial setup mode:
•
EX2200 and EX2200-C switch—Press the mode button located on the lower right
corner of the front panel for 10 seconds.
•
EX3200, EX3300, EX4200, EX4300, EX4500, EX4550, EX6200, or EX8200
switch—Use the Menu and Enter buttons located to the right of the LCD panel (see
Figure 44 on page 124 or Figure 45 on page 124):

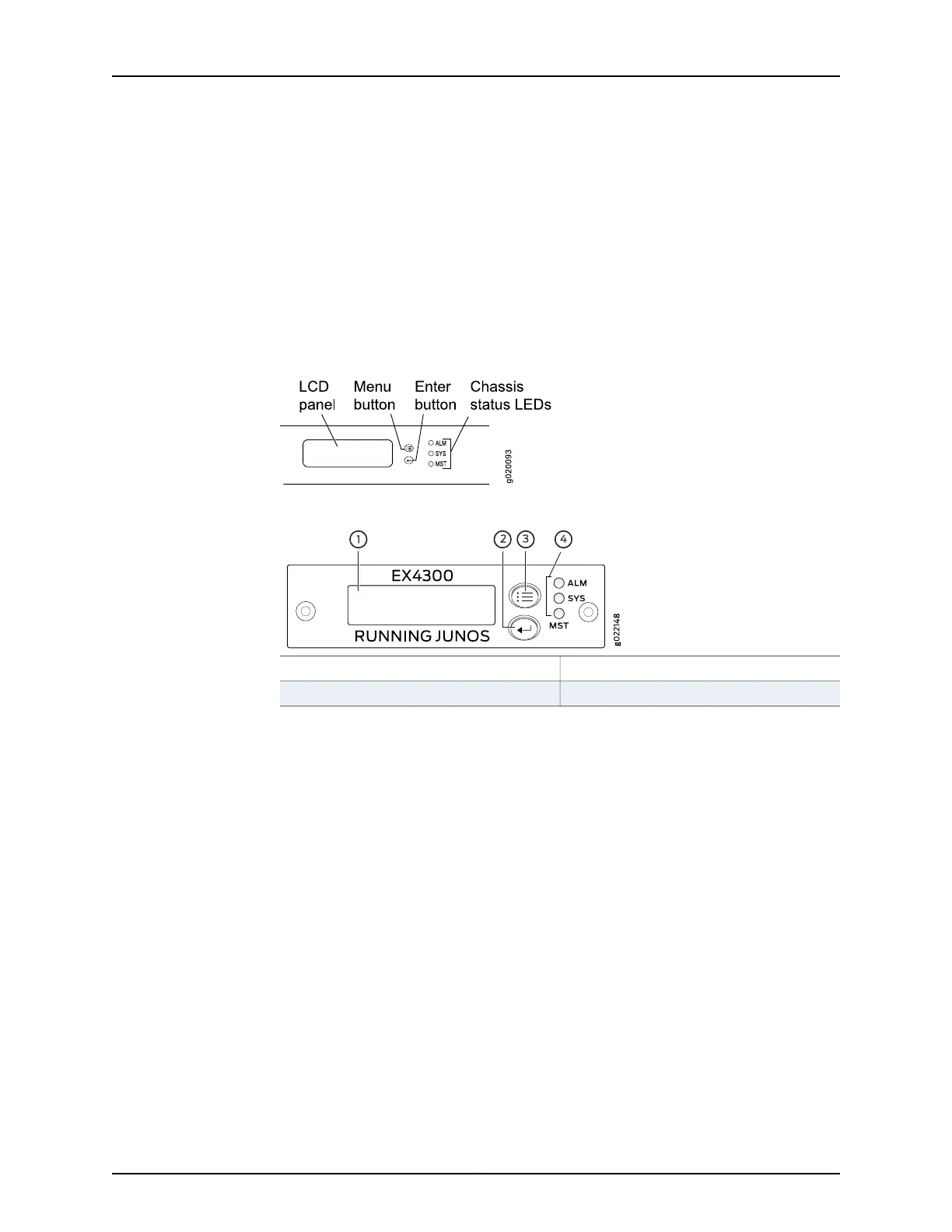

Figure44: LCD Panel in an EX3200, EX4200, EX4500, EX4550, or EX8200
Switch
Figure 45: LCD Panel in an EX4300 Switch
3—1— LCD panel Menu buttonLCD panel
4—2— Chassis status LEDsLCD panel Enter button
1. Press the Menu button until you see MAINTENANCE MENU. Then press the Enter
button.
2. Press Menu until you see ENTER EZSetup. Then press Enter.
If EZSetup does not appear as an option in the menu, select Factory Default to
return the switch to the factory default configuration. EZSetup is displayed in
the menu of standalone switches only when a switch is set to the factory default
configuration.
3. Press Enter to confirm setup and continue with EZSetup.
2. Connect the Ethernet cable from the Ethernet port on the PC to the switch.
•
EX2200, EX3200, or EX4200 switch—Connect the cable to port 0 (ge-0/0/0) on
the front panel of the switch.
•
EX3300, EX4500, or EX4550 switch—Connect the cable to the port labeled MGMT
on the front panel (LCD panel side) of the switch.
•
EX4300 switch—Connect the cable to the port labeled MGMT on the rear panel of
the switch.
Copyright © 2015, Juniper Networks, Inc.124
Complete Hardware Guide for EX3300 Ethernet Switches

Juniper EX3300 Specifications

General

Ethernet LAN	Yes
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Ethernet interface type	Gigabit Ethernet
Number of VLANs	4096
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Console port	-
ExpressCard slot	No
Fiber ports quantity	4
USB 2.0 ports quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Throughput	130 Mpps
Number of queues	8
MAC address table	16000 entries
Maximum data transfer rate	176 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Switch type	Managed
Switch layer	L2
Security algorithms	SSH-2
Power source	AC
AC input voltage	100 - 240 V
Power consumption (typical)	100 W
Form factor	1U
Product color	Black
Flash memory	1024 MB
Processor frequency	1000 MHz
Compatible operating systems	Junos
Operating altitude	0 - 3049 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Supported network protocols	IPv6

Weight and Dimensions

Depth	310 mm
Width	437 mm
Height	44 mm
Weight	4900 g
