Juniper EX3300 - EX3300 Switch Overview; Figure 1: Front Panel of an EX3300 Switch with 48 Gigabit Ethernet Ports; Figure 2: Front Panel of an EX3300 Switch with 24 Gigabit Ethernet Ports; Rear Panel of an EX3300 Switch

Figure 1 on page 7 shows the front panel of an EX3300 switch with 48 Gigabit Ethernet
ports. Figure 2 on page 7 shows the front panel of an EX3300 switch with 24 Gigabit
Ethernet ports.

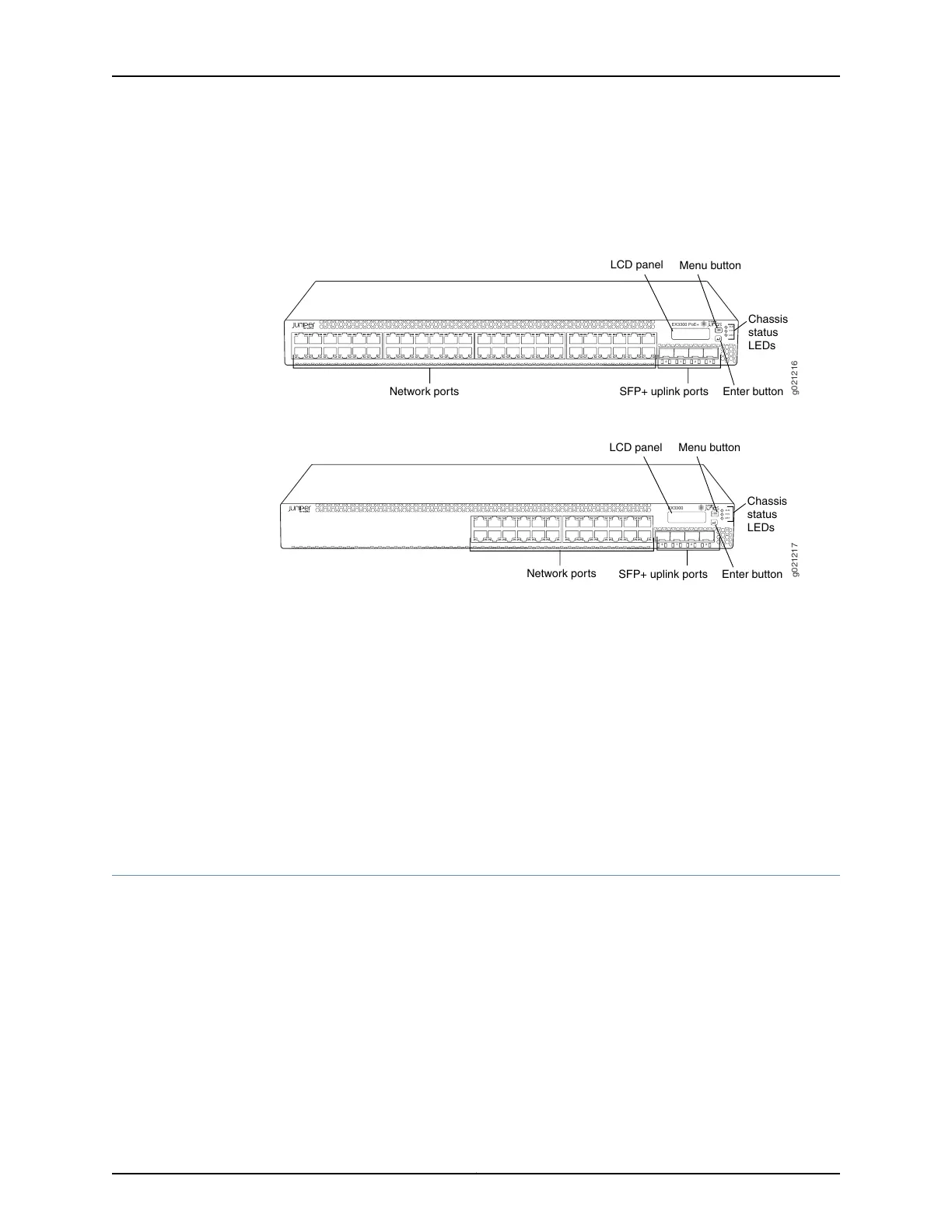

Figure 1: Front Panel of an EX3300 Switch with 48 Gigabit Ethernet Ports
g021216
0 1 2 3
ALM
EX3300 PoE+
SYS
MST
LCD panel
Network ports
Chassis
status
LEDs
Enter buttonSFP+ uplink por ts
Menu button
Figure 2: Front Panel of an EX3300 Switch with 24 Gigabit Ethernet Ports
g021217
0 1 2 3
ALM
EX3300
SYS
MST
LCD panel
Network ports
Chassis
status
LEDs
Enter buttonSFP+ uplink por ts
Menu button
Related
Documentation
Chassis Status LEDs in EX3300 Switches on page 16•
• Network Port and Uplink Port LEDs in EX3300 Switches on page 17
• Network Port Connector Pinout Information for an EX3300 Switch on page 26
• Rear Panel of an EX3300 Switch on page 7
• EX Series Virtual Chassis Overview
• Installing a Transceiver in an EX Series Switch on page 95
• Removing a Transceiver from a Switch on page 129
• Installing and Connecting an EX3300 Switch on page 81
Rear Panel of an EX3300 Switch
The rear panel of the EX3300 switch consists of the following components:
•
Management Ethernet port
•
USB port
•
Console port
•
Protective earthing terminal
•
ESD point
•
Air intake or air exhaust, depending on the switch model
