Juniper EX3300 Complete Hardware Guide

Use the wall-mount kit from Juniper Networks to mount the switch on a wall. The
wall-mount kit is not part of the standard package and must be ordered separately.
Related
Documentation
Clearance Requirements for Airflow and Hardware Maintenance for EX3300 Switches
on page 66
•
• Wall-Mounting Warning for EX3300 Switches on page 169
• Mounting an EX3300 Switch on a Desk or Other Level Surface on page 91
• Mounting an EX3300 Switch on a Wall on page 92
Clearance Requirements for Airflow and Hardware Maintenance for EX3300 Switches
When planning the site for installing an EX3300 switch, you must allow sufficient
clearance around the installed switch (see Figure 13 on page 66).

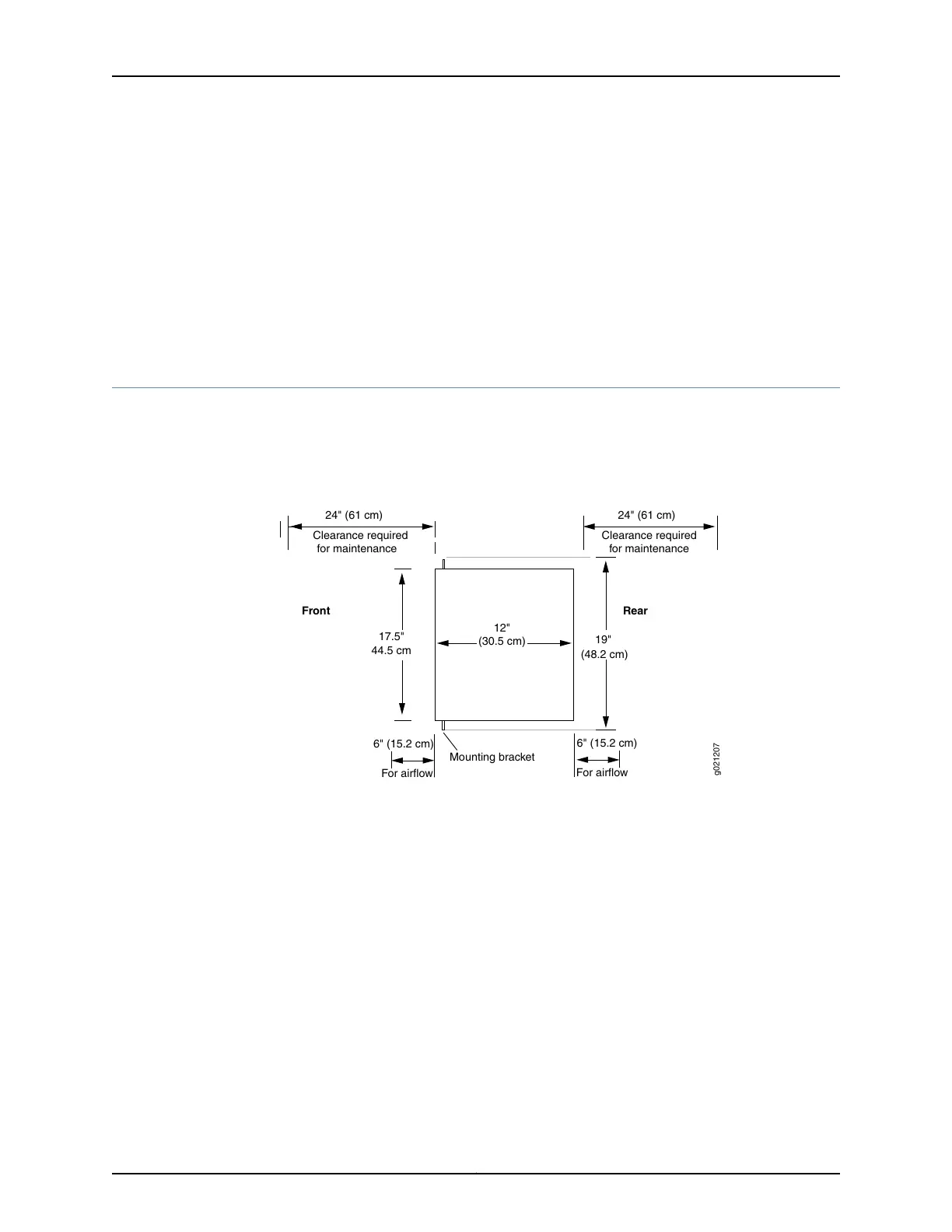

Figure 13: Clearance Requirements for Airflow and Hardware Maintenance
for EX3300 Switches
g021207
Mounting bracket
Rear
Front
17.5"
44.5 cm
12"
(30.5 cm)
Clearance requiredClearance required
for maintenancefor maintenance
24" (61 cm) 24" (61 cm)
19"
(48.2 cm)
For airflow
For airflow
6" (15.2 cm)
6" (15.2 cm)
The power cord retainer extends out of the rear of the chassis by 3 in. (7.62cm).
Follow these clearance requirements:
•
For the cooling system to function properly, the airflow around the chassis must be
unrestricted. See Figure 14 on page 67 and Figure 15 on page 67.
Copyright © 2015, Juniper Networks, Inc.66
Complete Hardware Guide for EX3300 Ethernet Switches

Juniper EX3300 Specifications

General

Ethernet LAN	Yes
Authentication method	RADIUS, TACACS+
Connectivity technology	Wired
Ethernet interface type	Gigabit Ethernet
Number of VLANs	4096
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Console port	-
ExpressCard slot	No
Fiber ports quantity	4
USB 2.0 ports quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Throughput	130 Mpps
Number of queues	8
MAC address table	16000 entries
Maximum data transfer rate	176 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Switch type	Managed
Switch layer	L2
Security algorithms	SSH-2
Power source	AC
AC input voltage	100 - 240 V
Power consumption (typical)	100 W
Form factor	1U
Product color	Black
Flash memory	1024 MB
Processor frequency	1000 MHz
Compatible operating systems	Junos
Operating altitude	0 - 3049 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Supported network protocols	IPv6

Weight and Dimensions

Depth	310 mm
Width	437 mm
Height	44 mm
Weight	4900 g
