Hollow wall anchors rated to support up to 75 lb (34 kg) if you are not screwing the
screws directly into wall studs (not provided)
•
Phillips (+) screwdriver, number 2
To mount one or two switches on a wall:
1. Remove the switch from the shipping carton (see “Unpacking an EX3300 Switch” on
page 82).
2. Attach the wall-mount brackets to the sides of the chassis using four wall-mount
bracket screws on each side, as shown in Figure 29 on page 93.

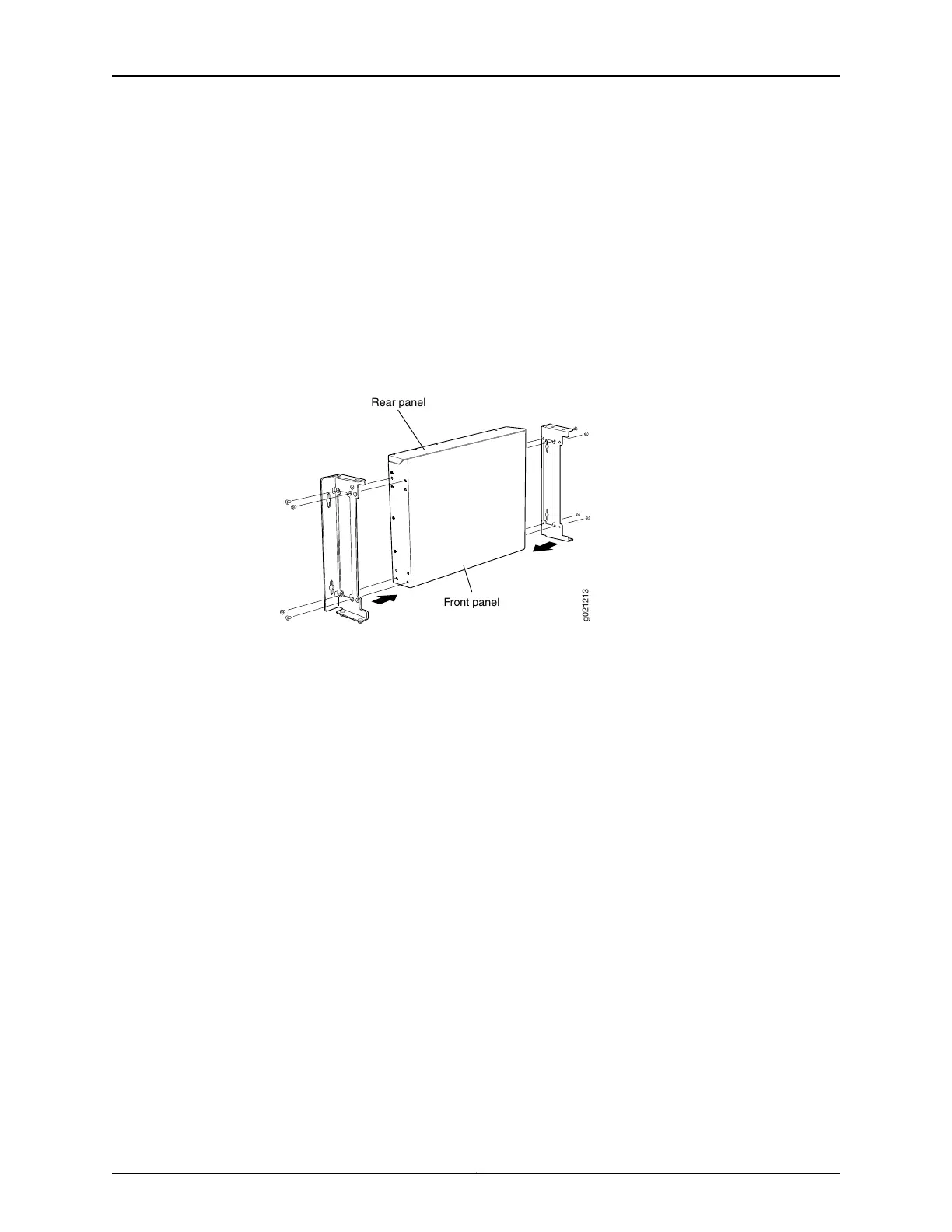

Figure 29: Attaching Wall-Mount Brackets to a Switch Chassis
g021213
Front panel
Rear panel
3. If you are mounting two switches together, align the second switch on top of the first
in such a way that both the switches have airflow in the same direction and attach it
to the mounting brackets using two additional wall-mount bracket screws on each
side. (Figure 31 on page 94 shows two aligned switches.)
4. Install six mounting screws in the wall for the wall-mount brackets and baffle as
shown in Figure 30 on page 94:
•
Use hollow wall anchors rated to support up to 75 lb (34 kg) if you are not inserting
the mounting screws directly into wall studs.
•
Turn the screws only part way in, leaving about 1/4 in. (6 mm) distance between
the head of the screw and the wall.
a. Install screw A.
b. Install screw B 18.68 in. (47.4 cm) from screw A on a level line.
c. Install screw C 5.98 in. (15.2 cm) on a plumb line down from screw A and screw D
5.98 in. down from screw B.
d. Install screw E 2.76 in. (7 cm) up from and 8.32 in. (21.1 cm) to the right of screw A.
e. Install screw F 4.49 in. (11.4 cm) to the right of screw E.
93Copyright © 2015, Juniper Networks, Inc.
Chapter 9: Installing the Switch
