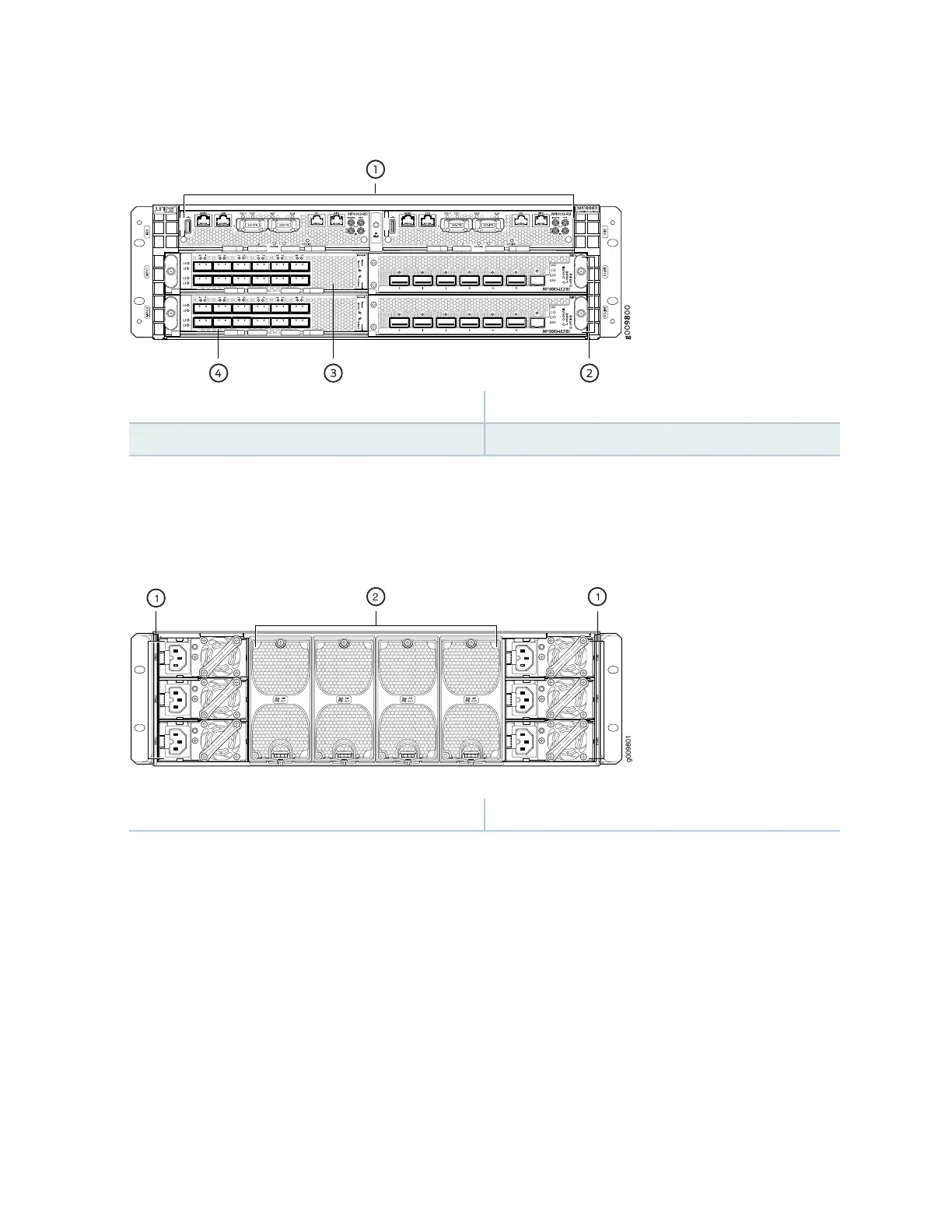

Figure 1: Front View of the MX10003 Router
3—1— MIC installed in MIC1 slot of MPC1Routing and Control Boards (RCBs)
4—2— MIC installed in MIC1 slot of MPC0MPCs
The router comes in two variants–AC-powered and DC-powered. Figure 2 on page 26 and
Figure 3 on page 27 shows the rear of the fully configured chassis.
Figure 2: Rear View of the AC-Powered MX10003 Router
g009801
2 1
1
2—1— Fan modulesPower supply modules (AC)
26
