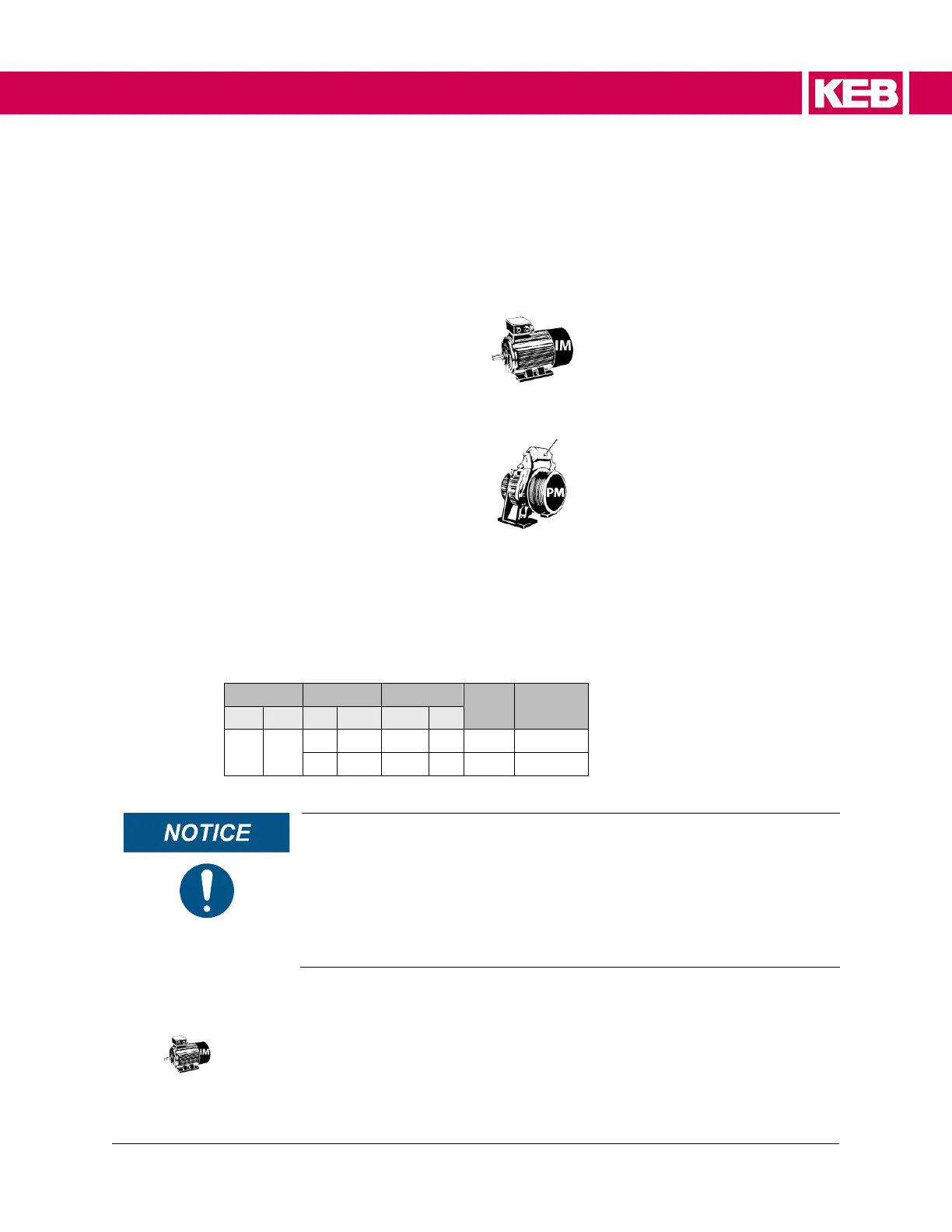

Parameter Descriptions
© 2024 KEB America, Inc.
103
8.4 Motor Data Parameters (LM)
These parameters define and display all relevant motor values and motor protection
settings. The drive will only allow access to motor parameters related to the motor loaded
in US03.
Parameters that pertain to induction motors will have the following icon listed beside it:
Parameters that pertain to permanent magnet motors will have the following icon listed
beside it:
LM01 Motor Power
The rated power of the motor, according to nameplate. The unit will be either HP or kW,
according to the US02 System Units setting.
LM01 is writable for both motor types: permanent magnet and induction. When LM01 is
written, LM07 will be calculated.
Motor Type
Range
Units
Default
Pass
Level
Ind.
PM
Min.
Max.
Imp.
Met.
RW
RW
0.5
225
-
kW
7.5
Basic
0.7
300
hp
-
10
Avoid slip and verify speed/frequency.
For PM SYNCHRONOUS MOTORS, the relationship between the rated
motor speed, rated motor frequency and the number of motor poles
MUST NOT include any slip. For a given number of motor poles, the
rated motor speed or frequency should be verified against the nameplate
values and changed accordingly in the drive, as rounding may occur on
the nameplate. Refer to LM02 for details.
Conversion:
1kW = 1.36 HP
1 HP = 0.735 kW
For induction motors, enter the nameplate motor power. LM07 will be calculated. Refer
to LM07 for further details.
