10. After the Parameter Backup is done, there should be two parameter lists: one for
each node.

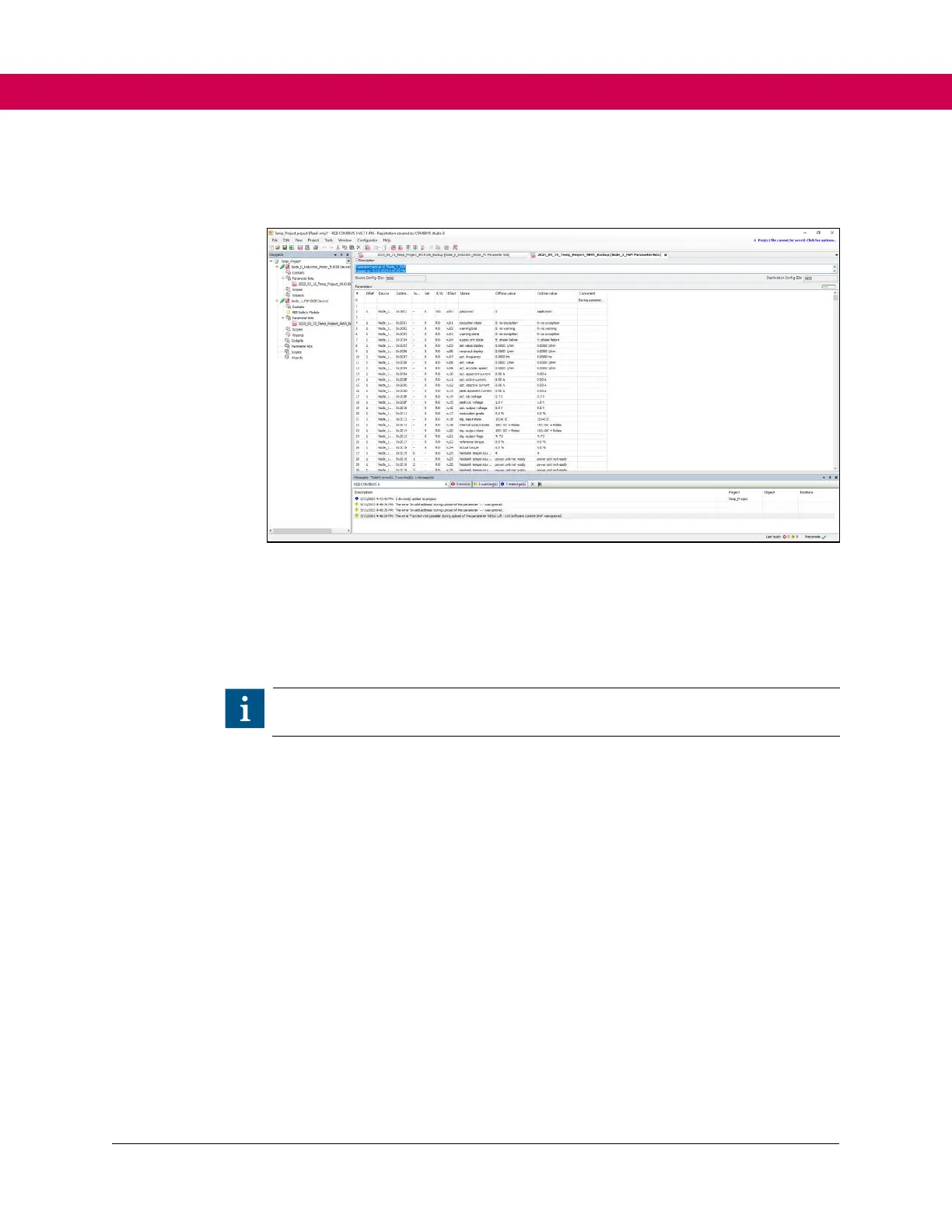

Figure 51. Parameter lists
11. In the top menu, select FILE > SAVE PROJECT.
9.4.3 Downloading Parameters
Only one of the connections is needed, depending on which cables are used.
• Connecting KEB USB-to-Serial Converter - DIN+HSP5 to Computer
1. Connect USB end into computer.
2. Connect serial end into the F6 drive (F6 Operator connection X4A).
• Connecting Alternative Cables to Computer
1. Connect the USB-to-Serial Adapter to the computer (USB end).
2. Connect Combivis Cable to USB Serial Adapter (Serial end) and Serial Port on the
F6 (F6 Operator connection X4A).
After connecting cables:
1. Turn on drive if drive is not already on.
2. Open Combivis project with Parameter Backup or the .dw5 Parameter Backup file.
3. If the parameter list does not open, double click on the PARAMETER BACKUP
LIST under both nodes.
4. Select NODE 0 PARAMETER LIST tab.
5. Right Click on the list and select DOWNLOAD LIST.
