KEB F6 User Manual

Combivis
250
© 2024 KEB America, Inc.

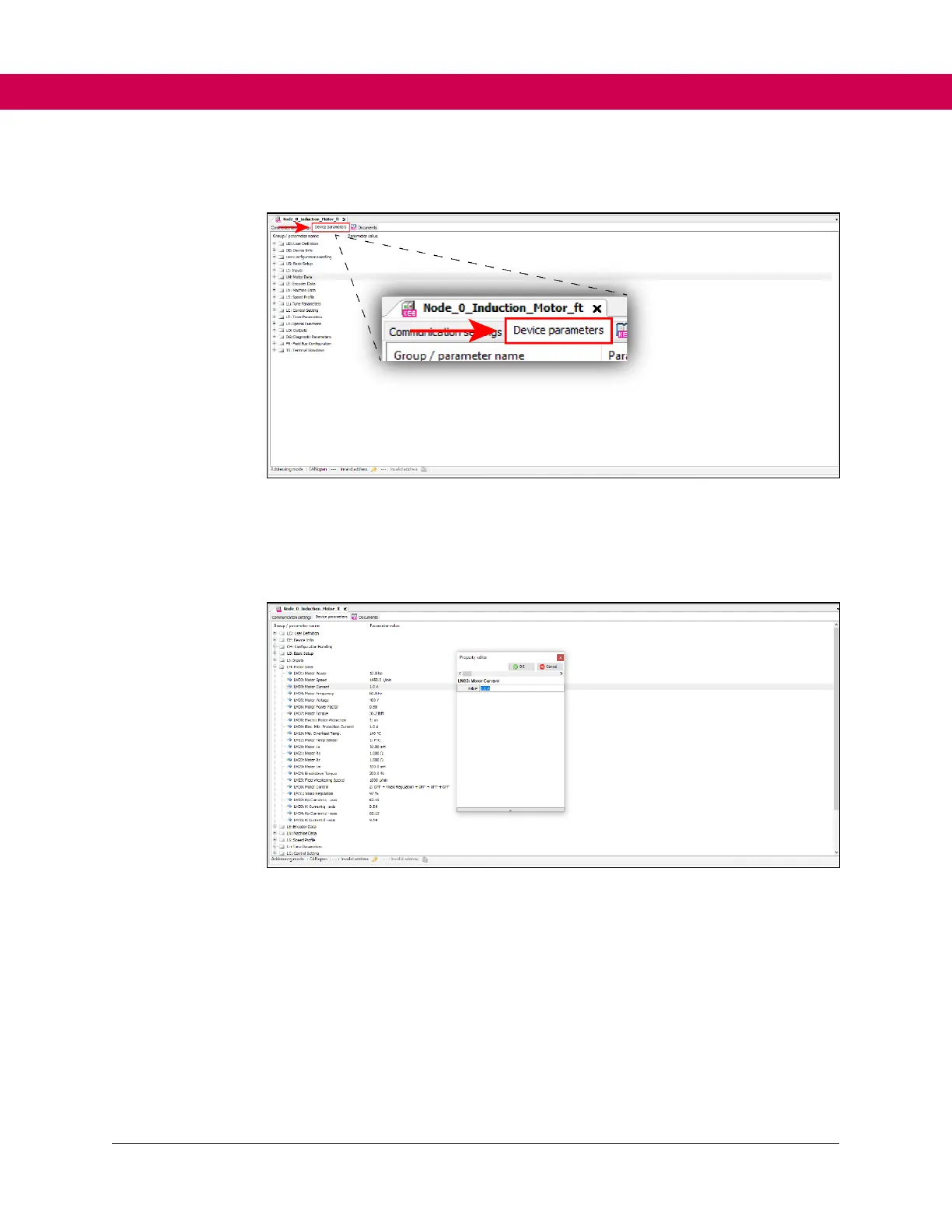

7. Select Device Parameters:
Figure 39. Combivis: Device parameters
8. Double-click on the parameter group to open the parameter group.
9. Double-click on the parameter name or number:
Figure 40. Combivis: Define parameters
10. Define the parameter then select OK to save.
9.3.4 Scoping on Combivis
9.3.4.1 Connecting the Cables
For connecting the cables,  refer to Connecting the Cables section, pg. 246.

KEB F6 Specifications

General

Category	Inverter
Protection Class	IP20
Communication Interfaces	PROFIBUS, CANopen, RS485
Operating Temperature	-10°C to +50°C
Series	F6
Output Frequency	0 Hz to 600 Hz
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m above sea level
Control Modes	Sensorless vector control
Storage Temperature	-25°C to +70°C
