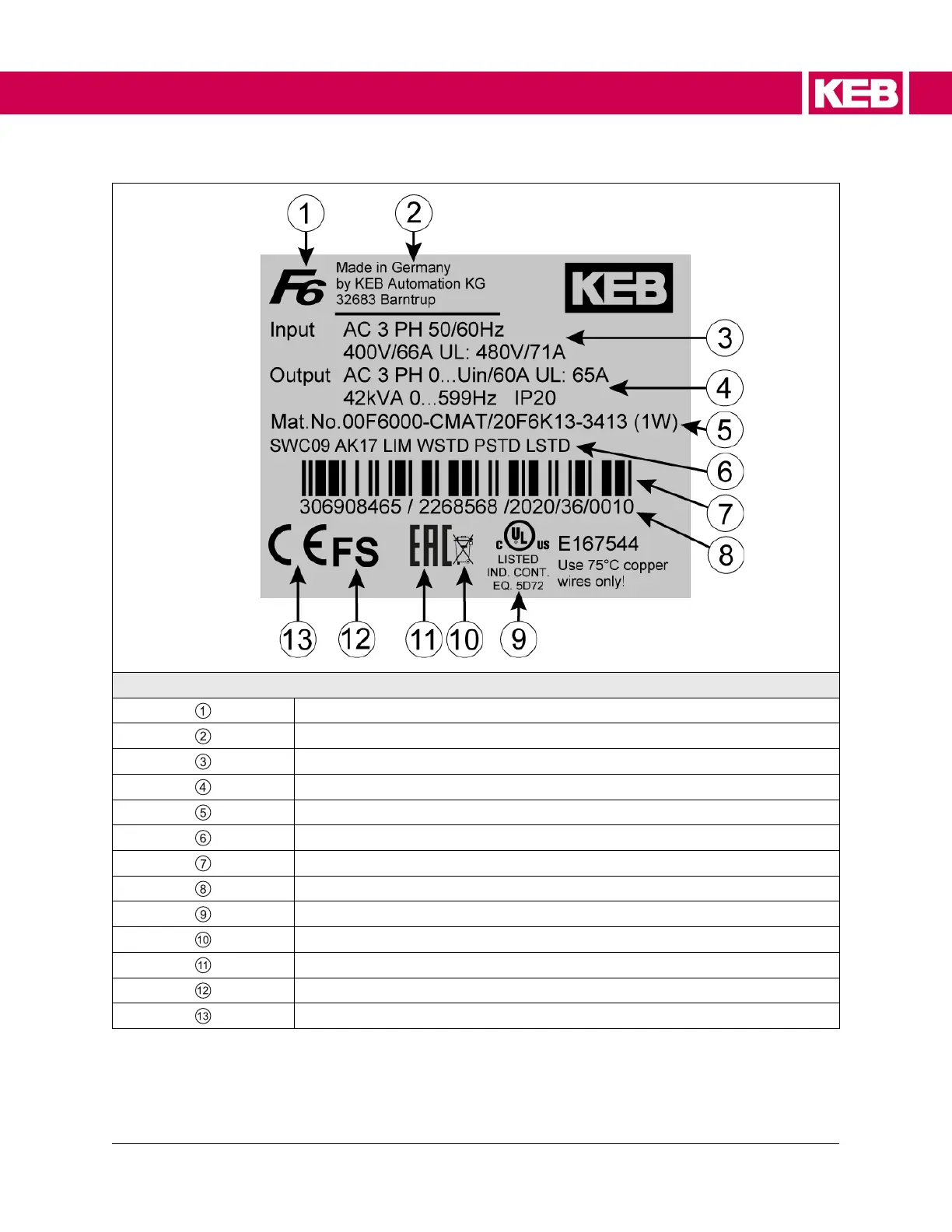

KEB F6 - Figure 2. Nameplate

To Next Page

To Previous Page

Product Description

Legend

Device series

Manufacturer identification

Technical data input

Technical data output

Model number / Order number / KEB internal version number

Configurable options or customer material number/version

Barcode Interleaved 2/5 (serial number)

Serial No. / Order No. / Year / Week of Production / Factory

UL certification

Disposal information

EAC certification

FS certification

CE certification

Figure 2. Nameplate
