Combivis

249

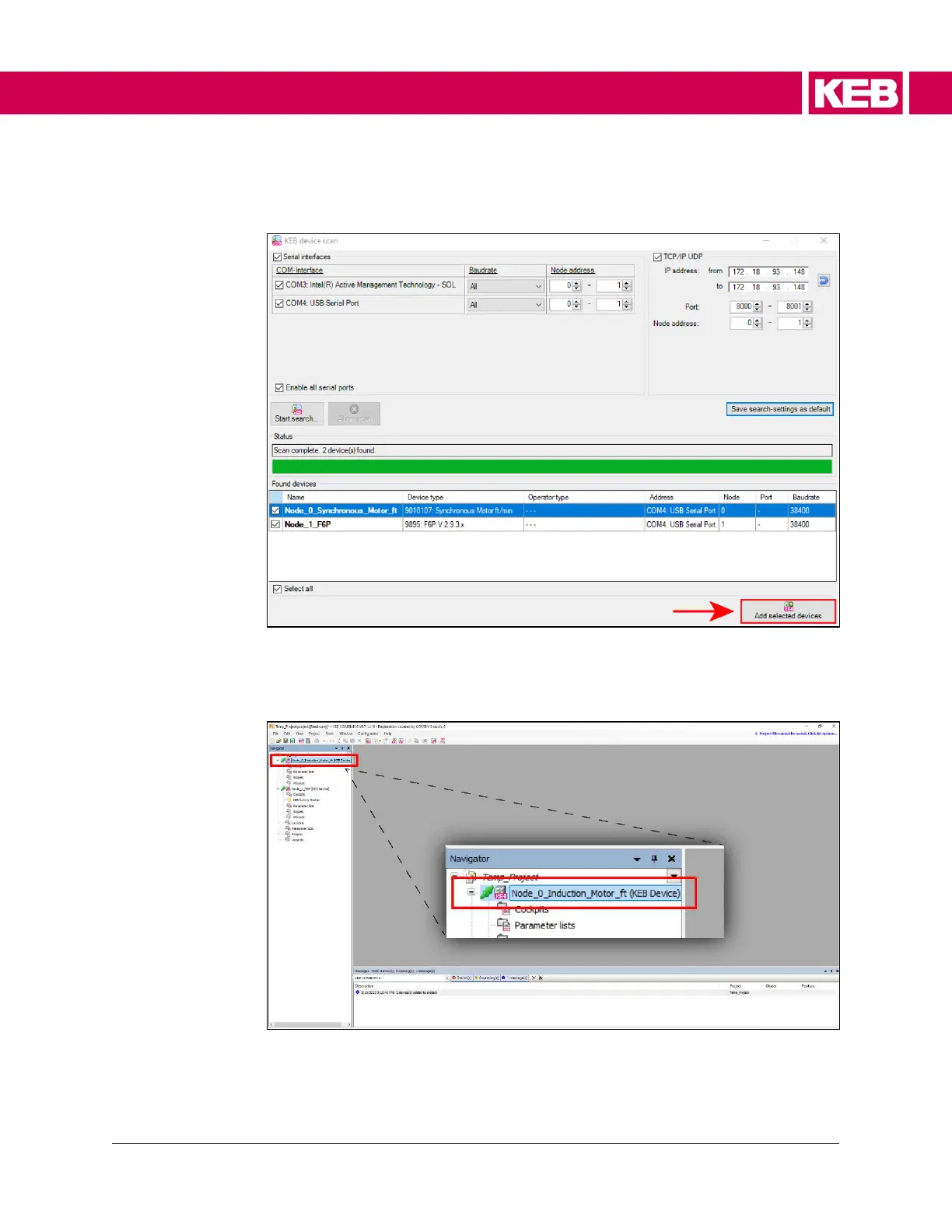

5. Once the search is complete, nodes will appear under Found Devices, make sure

all nodes are selected and select ADD SELECTED DEVICES:

Figure 37. Combivis: Add selected devices

6. Double-click on NODE 0:

Figure 38. Combivis: Node 0
