KEB F6 - Figure 20. LM08 Electric Motor Protection Trip Curve

Parameter Descriptions
© 2024 KEB America, Inc.
109
The trip curve is in accordance with UL 61800-5-1, CSA B44.1, VDE 0660 Part 104,
UL508C section 42, and NFPA 70 Article 430 part C. It is defined as follows:
• 100% of trip current > continuous running
• 120% of trip current > trip after 2 hours
• 150% of trip current > trip after 2 minutes
• 200% of trip current > trip after 1 minute
• 800% of trip current > trip after 5 seconds

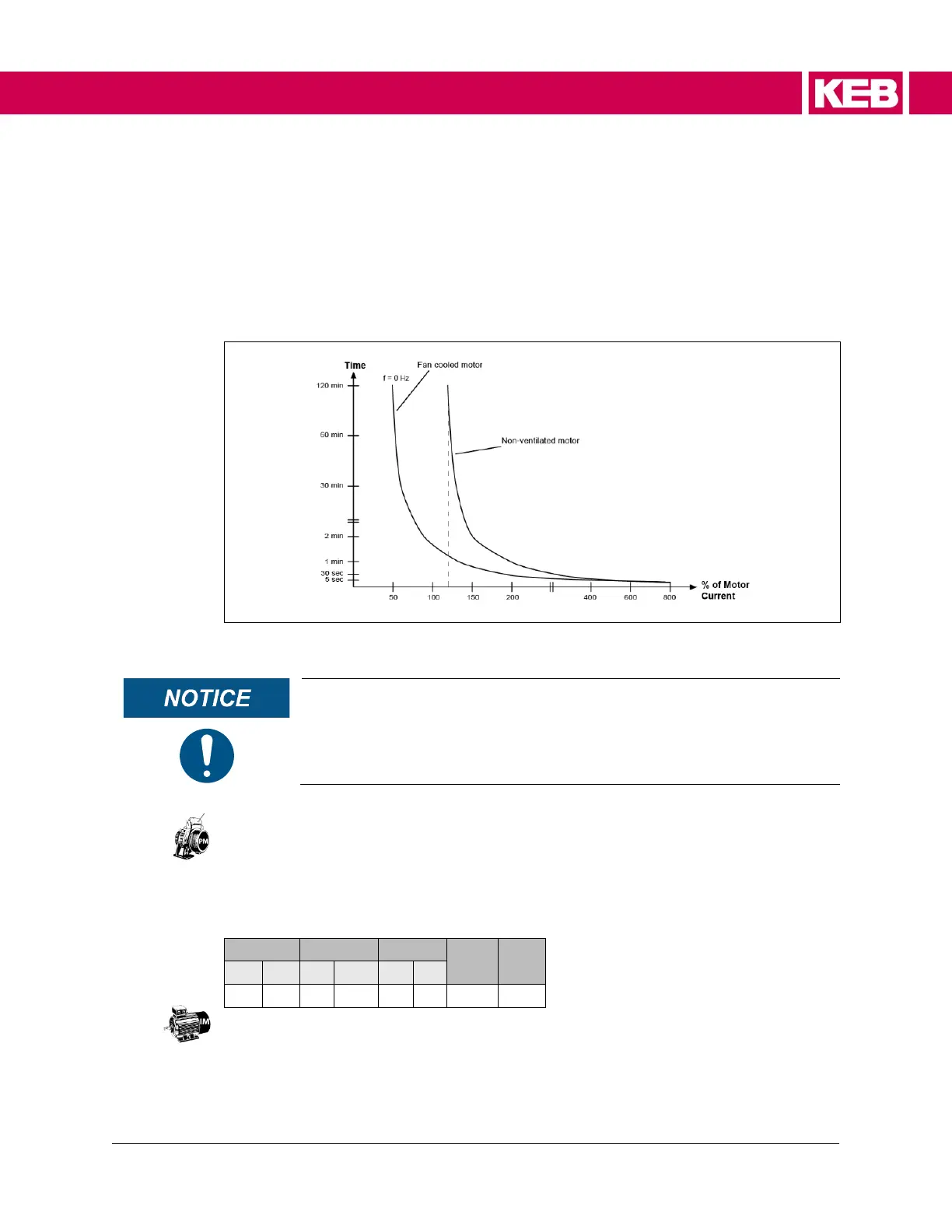

Figure 20. LM08 Electric motor protection trip curve
Ensure operational motor protection function!
 This function must be activated to ensure the motor protection function is
operational!
The trigger level is established from the LM03 Motor Rated Current and LM11 Peak
Motor Current Factor.  Refer to LM11 Peak Motor Current below for additional details.
LM09 Electric Motor Protection Current
Current level for Electric motor protection.
Motor Type
Range
Units
Default
Pass
Level
Ind.
PM
Min.
Max.
Imp.
Met.
RW
RW
1
1000
A
-
1
Basic
This parameter sets the current threshold in amps above which the Elevator drive
activates the motor overload function, described in LM08 Electric motor protection. This
parameter should be set in accordance with motor rated current.
