KEB F6 - Figure 23. Run Profile Settings; Table 21. Run Profiles

To Next Page

To Previous Page

Parameter Descriptions

131

Table 21. Run profiles

Profile

Parameters

High Speed Profile

LS20-27

One Floor Profile (Intermediate Speeds 1, 2)

LS30-38

Emergency Profile (Intermediate Speed 3)

LS40-47

ESD/ETS Profile

LS48-49

Inspection Speed Profile

LS50-55

Each profile will have the following settings*:

• Acceleration

• Starting Jerk

• Acceleration Jerk

• Deceleration

• Deceleration Jerk

• Stopping Jerk

*ESD and ETS Profile will only have deceleration and deceleration jerk settings.

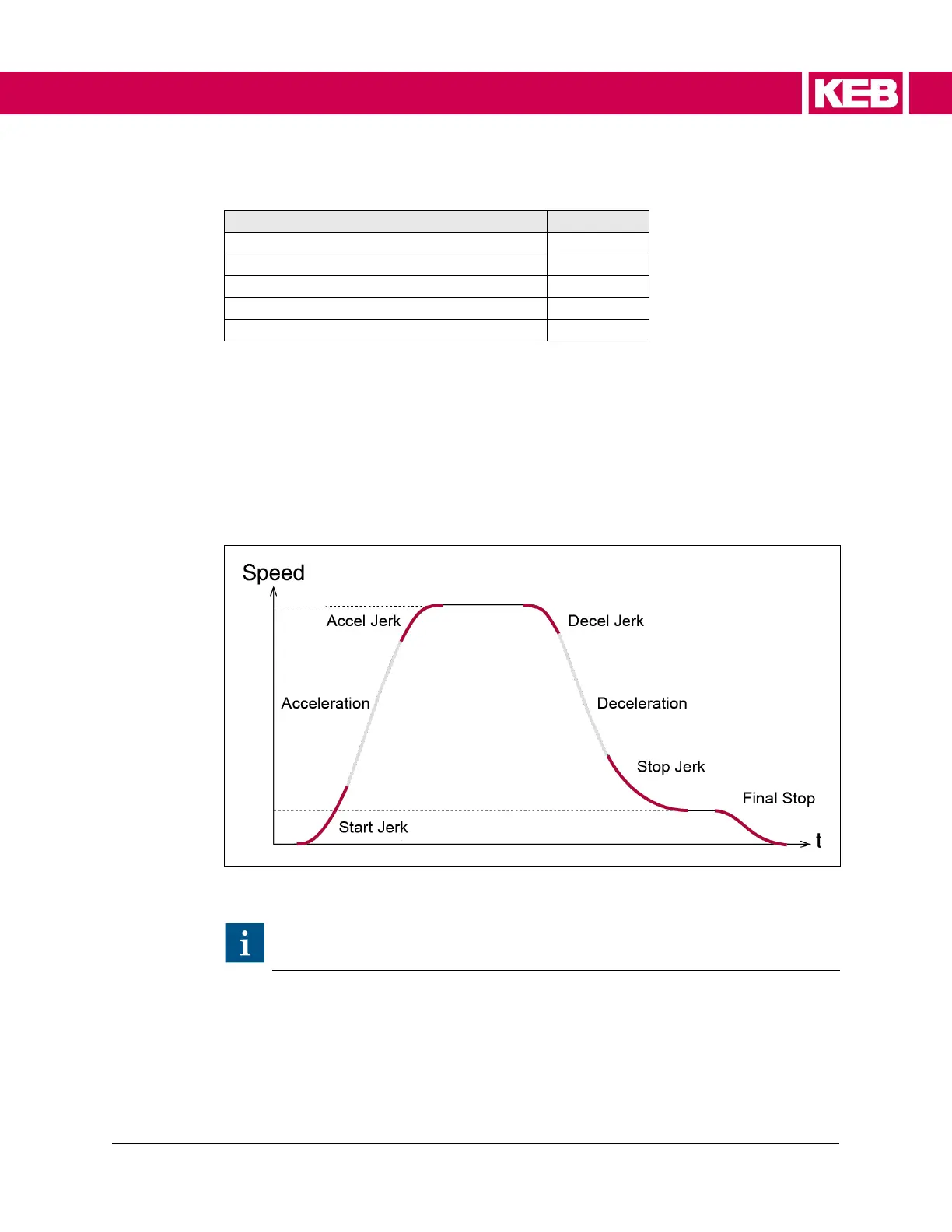

Figure 23. Run profile settings

All speeds will use the LS43-45 deceleration and jerk settings for the Final Stop

portion of the profile.

In general, higher values result in a hard/fast profile, while lower values give softer,

slower transitions.
