Control Connections
© 2024 KEB America, Inc.
45

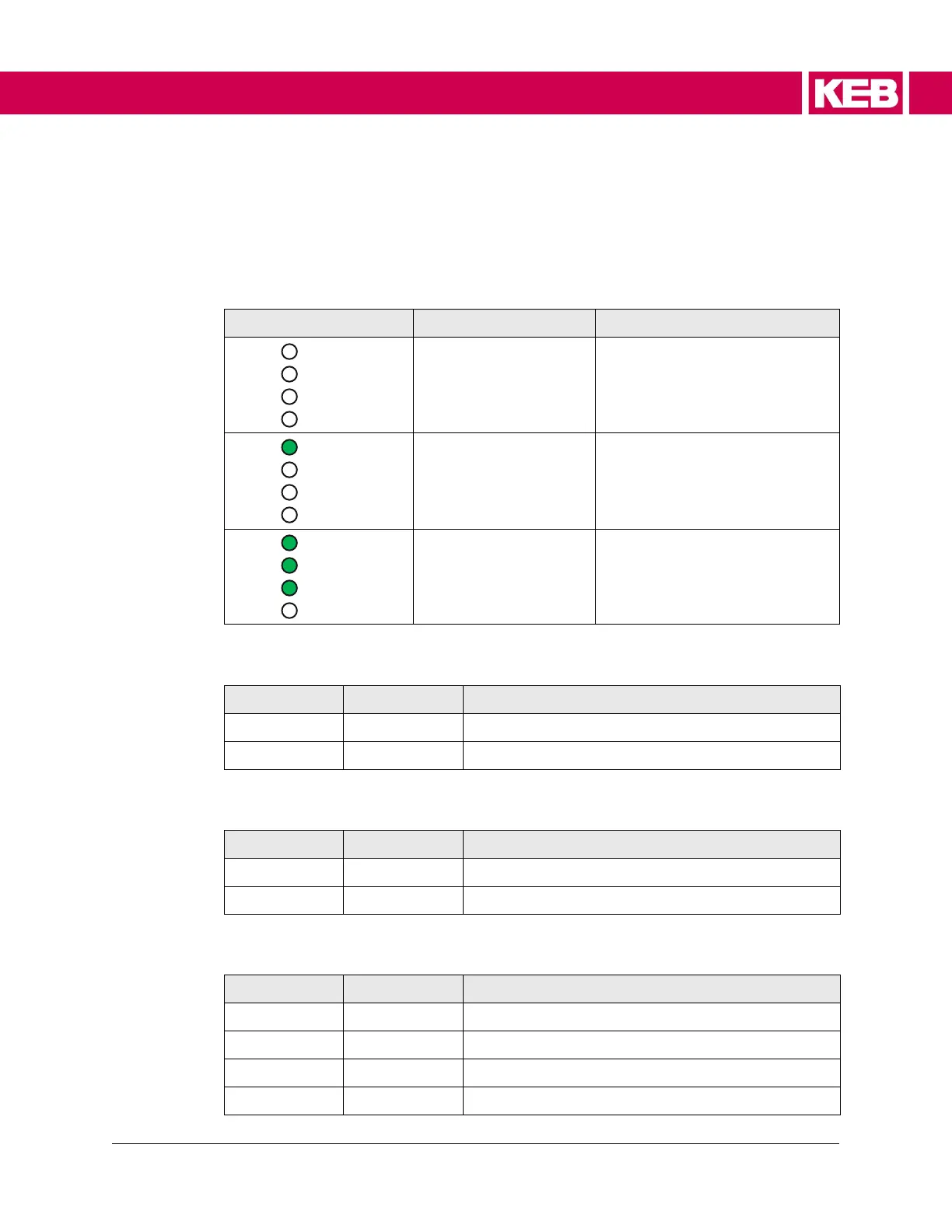

4.8 Status LEDs
4.8.1 Boot Display
Before the LEDs start their normal function, they signal the boot procedure after switching
on:
LEDs
Status
Note
VCC
NET
DEV
OPT
ST
ST
Off
Device Off
VCC
NET
DEV
OPT
ST
ST
Initialization
Control is supplied with 24V
VCC
NET
DEV
OPT
ST
ST
Ready for Operation
Device is ready for operation
and the LEDs start with their
.
4.8.2 VCC - LED
VCC
LED Color
Description
Off
-
Power supply of the control card switched off.
On
Green
Control is supplied with 24V
4.8.3 NET ST - LED
NET ST
LED Color
Description
Off
-
Device Off or Booting
Blink Code
Various
Depending on fieldbus => fieldbus interfaces
4.8.4 DEV ST - LED
DEV ST
LED Color
Description
Off
-
Device Off or Booting
On
Red
Error
On
Yellow
No error; DC bus not charged.
On
Green
No error; ready for operation.
