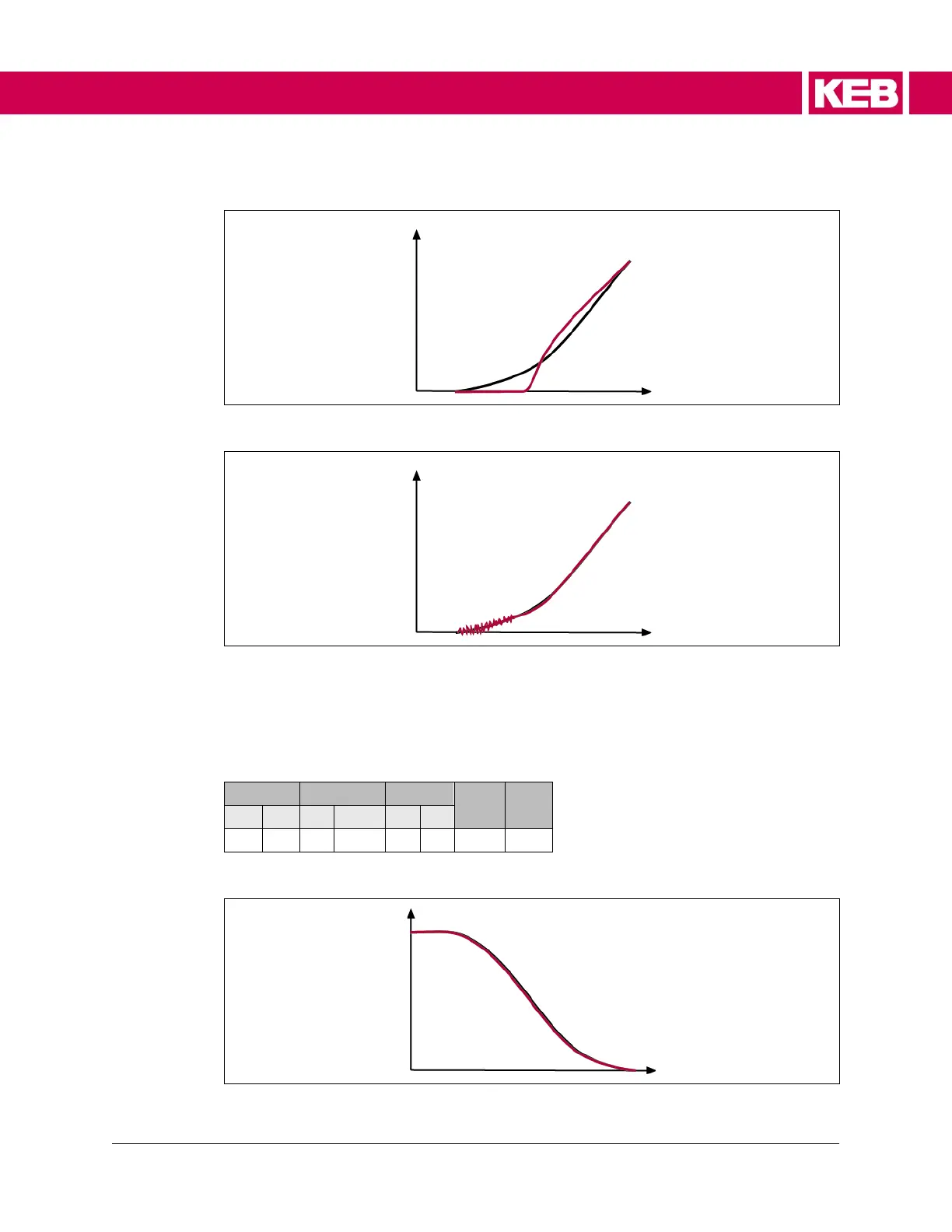

Integral Offset Acceleration Too Low - Speed lags command on take-off

Integral Offset Acceleration Too High - Vibration at take-off

LC12 KI Offset Deceleration

The integral offset gain for deceleration.

The offset deceleration gain will allow the system to track the command speed tightly at

low speed. Often lower values are required for starting. Values of 500 to 2,000 are useful.

Motor Type

Range

Units

Default

Pass

Level

Ind.

Min.

Max.

Imp.

Met.

20000

1000

Basic

Integral Offset Deceleration Correct
