Keithley 2002 User Manual

Front Panel Operation
2-57

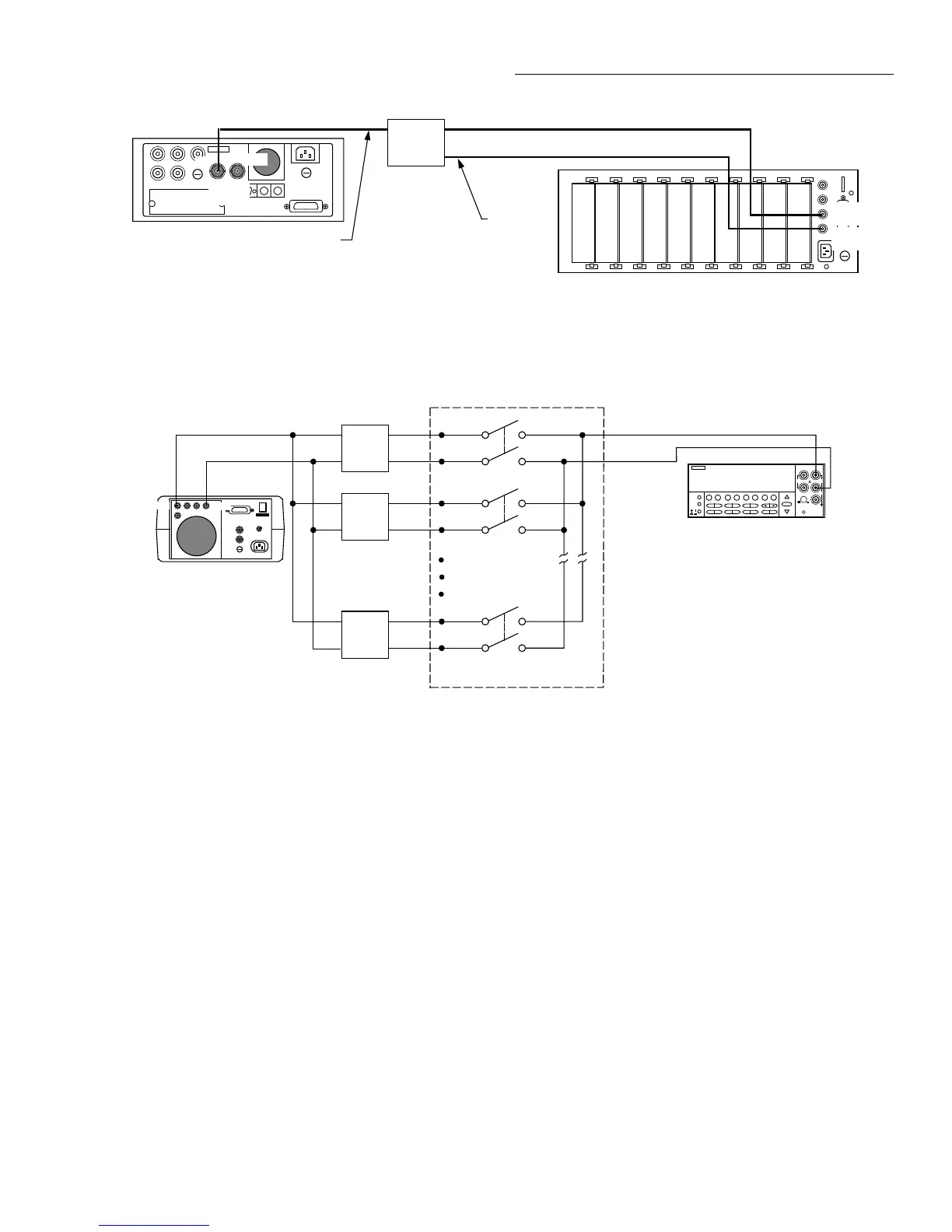

Figure 2-22
Connections using Trigger Link adapter
Trigger
Link
2002 Multimeter
Trigger
Link Cable
(8501)
706 Scanner
IN
OUT
BNC to BNC
Cables (2)
(7501)
1
2
8502
Trigger
Link
Adapter
Channel
Ready
External
Trigger
Figure 2-23
DUT test system (asynchronous example #2)
NEXT
DISPLAY
PREV
POWER
2002 MULTIMETER
SENSE
Ω 4 WIRE
HI
INPUT
LO
INPUTS
CAL
500V
PEAK
F
R
FRONT/REAR
2A 250V
AMPS
350V
PEAK
1100V
PEAK
1
DUT
#1
2
DUT
#2
10
DUT
#10
2002 Multimeter
Input HI
Input LO
Output
Card 1
7011 MUX Card
COM
OUT
230 Voltage Source
