Keithley 2002 User Manual

Front Panel Operation
2-58
Since this example uses an instrument that does not have
Trigger Link (Model 230), the Model 8502 Trigger Link
Adapter is required. Connections are shown in Figure 2-24.
For this example, the Model 230 is programmed for External
Triggering and is set to source the first voltage level. The
Models 2002 and 7001/7002 are configured as follows:
Model 2002:
Idle state:
Bench reset = :INIT:CONT ON*
Arm layer:
Arm source = Immediate*
Arm count = 1*
Arm trigger control = Acceptor*
Scan layer:
Scan source = Immediate*
Scan count = Infinite*
Scan trigger control = Acceptor*
Measure layer:
Measure source = TrigLink
Trigger link mode = Asynchronous
Input line = #3
Output line = #4
Measure count = 20
Measure trigger control = Acceptor*
* Indicates that the setting is the BENCH RESET (and factory) default con-
dition.

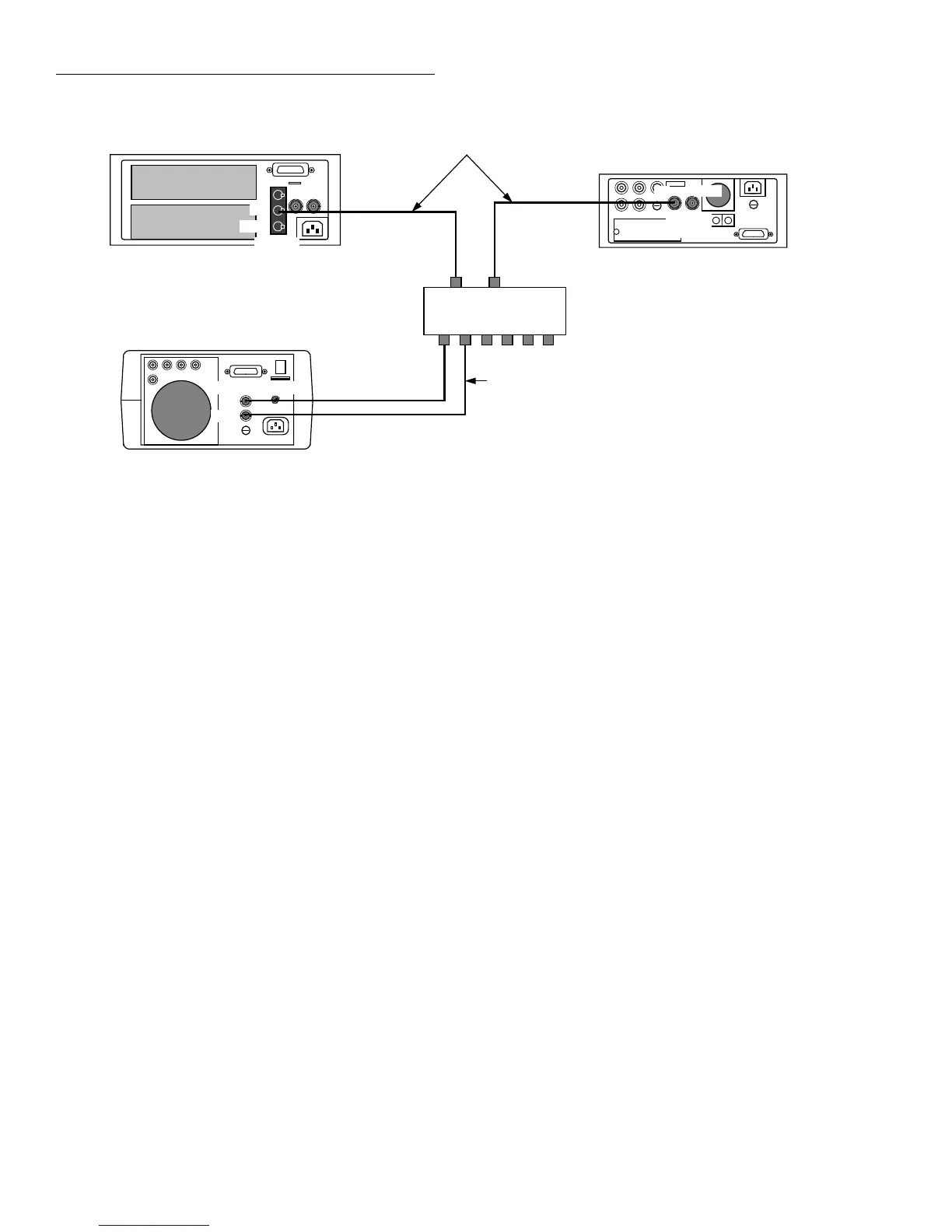

Figure 2-24
Trigger Link connections (asynchronous example #2)
Trigger
Link
7001 or 7002 Switch System
Trigger
Link Cables
(8501)
IN
OUT
External Trigger
IN
OUT
230 Voltage Source
8502
Trigger Link
Adapter
BNC to BNC
Cables
(7501)
23 4
2002 Multimeter
Trigger
Link
IN
OUT
561
Model 7001 or 7002:
Idle state:
Reset = :INIT:CONT OFF*
Scan list = 1!1-1!10,
Arm layer:
Arm spacing = Immediate*
Arm count = 1*
Arm trigger control = Acceptor*
Scan layer:
Scan spacing = TrigLink
Trigger link mode = Asynchronous
Input line = #2
Output line = #1
Number of scans = 2
Scan trigger control = Source
Channel layer:
Channel spacing = TrigLink
Trigger link mode = Asynchronous
Input line = #4
Output line = #3
Number of channels = 20
Channel trigger control = Source*
* Indicates that the setting is the RESET (and factory) default condition.
Notice that the Model 2002 is reset to BENCH defaults. With
this selection, the multimeter stays armed. Since the arm
source and scan source are set to Immediate, the Model 2002
waits in the measure layer for a trigger.

Keithley 2002 Specifications

General

Resolution	8.5 digits
DC Voltage Accuracy	±0.0006%
Maximum DC Voltage	1000 V
Maximum AC Voltage	750 V
Maximum DC Current	3 A
Maximum AC Current	3 A
Connectivity	GPIB, RS-232
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	10 Ω to 1 GΩ
Model	2002
Category	Multimeter
Interface	GPIB, RS-232
AC Current Accuracy	±0.1%
Frequency Range	0.1Hz to 300kHz
Display	VFD
Type	Digital
Power Supply	100-240V AC, 50/60Hz
Current Range (DC)	100 μA to 3 A
Current Accuracy (DC)	±0.01%
Current Range (AC)	100 μA to 3 A
Current Accuracy (AC)	±0.1%
DC Current Range	100 μA to 3 A
AC Current Range	100 μA to 3 A
