Series 2230G
Triple-Channel Power Supplies User's Manual Section 6:
Status register
2230G-900-01 Rev. A / June 2018 6-3

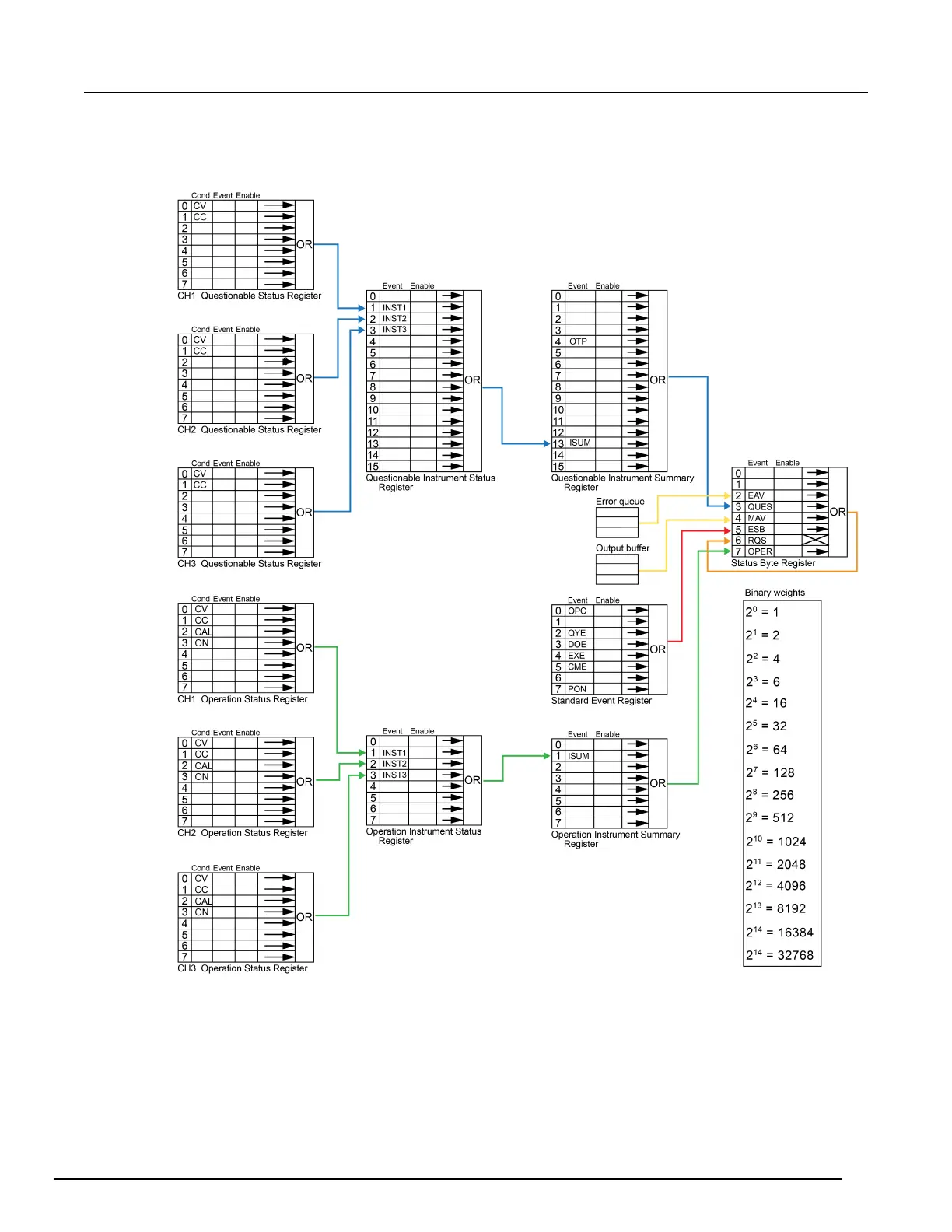

The following figure shows the status register structure of the Series 2230G power supply.
Figure 17: Status register structure
