Section
3: Function and features Series 2230G Triple-Channel Power Supplies
User's Manual
3-12 2230G-900-01 Rev. A / June 2018
I1+I2 parallel
You can connect two Series 2230G output terminals in parallel and display the combined output
current value on channel 1.
The wiring between the power supply output terminals affects the accuracy of measurements in this
mode. Make sure that wire sizes are sufficient, wires are short, and connections are tightened to
ensure maximum accuracy. See Wire specifications (on page 1-4
) for wire size guidelines.
To combine channel 1 and channel 2 when the outputs are connected in parallel:
1. Connect the outputs in parallel, as shown in the following figure.

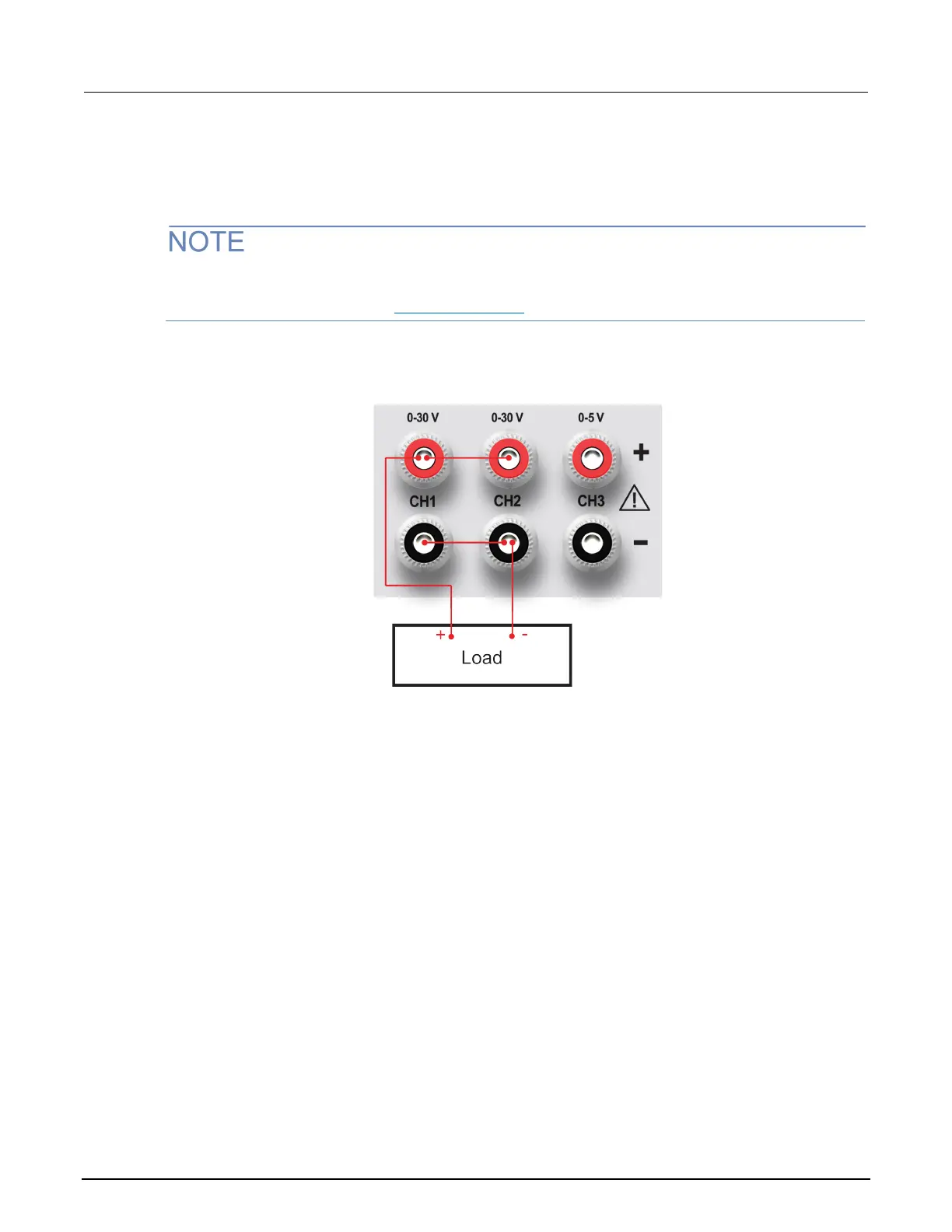

Figure 8: CH1 and CH2 outputs connected in parallel
2. Press the Menu key.
3. Use the arrow keys to select Combine.
4. Press the Enter key.
5. Press the down arrow key to select I1+I2 Parallel.
6. Press the Enter key. The screen returns to meter mode. Verify that the Para indicator is
displayed, replacing the channel 2 voltage and current readings. This indicates that the power
supply is in the I1+I2 parallel state. The total output current is displayed on channel 1.
1.000V Para 1.000V
SV0.000A SV0.000A
7. Set channel 1 current to the current value you want.
