2: Quick reference Series 2230G Triple-Channel Power Supplies
2-6 2230G-900-01 Rev. A / June 2018

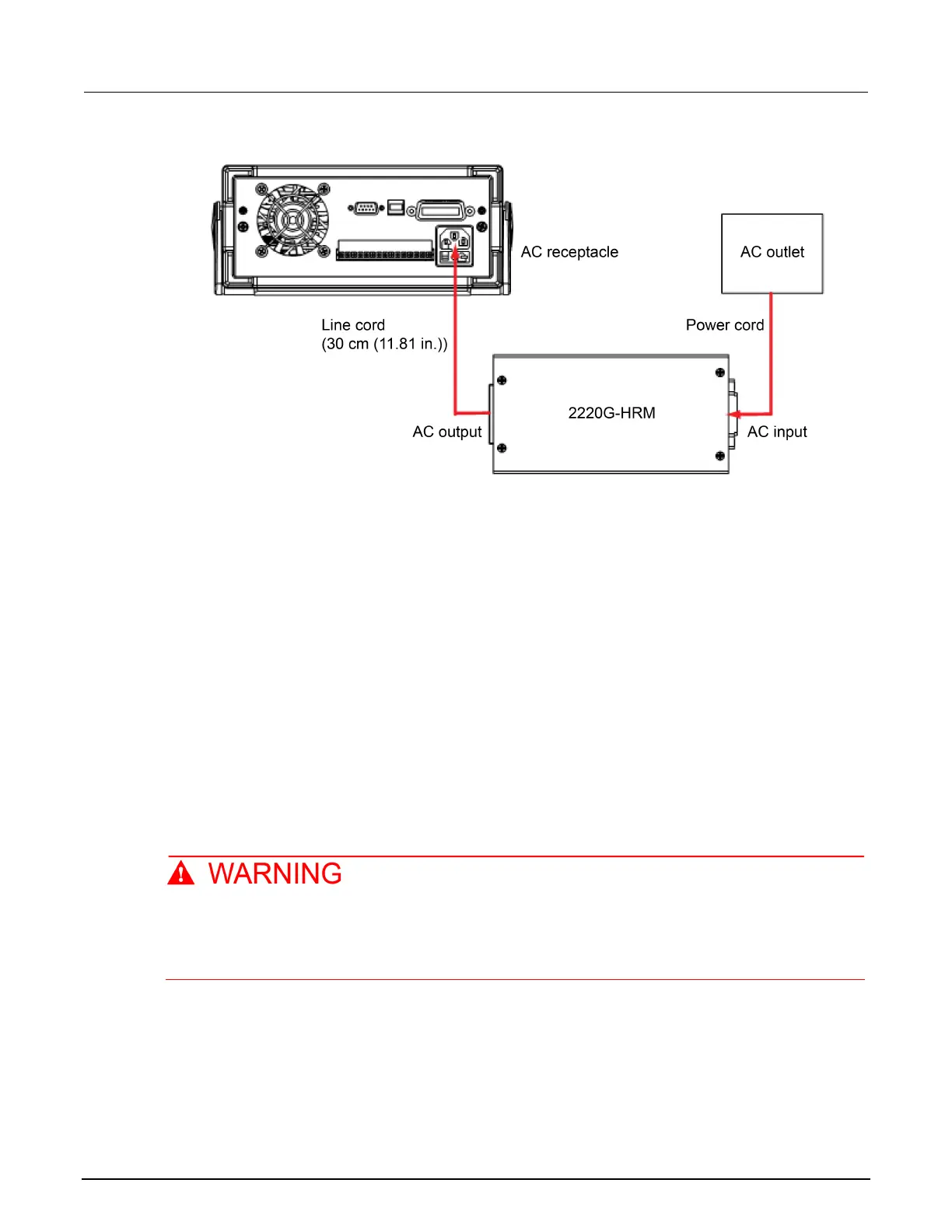

Figure 4: Connecting the power cord for 2230G-30-6 or 2230G-60-3
To connect the power cord:
1. Make sure that the front-panel power switch is in the OFF position.
2. Properly set the 110 V/220 V selector switch located on the bottom of the instrument.
3. Connect the female end of the supplied line cord (30 cm (11.81 in.)) to the AC receptacle on the
rear panel.
4. Connect the other end of the supplied line cord to the AC output of the 2230G-HRM inductor.
5. Connect the female end of the supplied power cord to the AC input of the 2230G-HRM inductor.
6. Connect the plug of the power cord to a grounded AC outlet.
Turn the power supply on and off
To turn the power supply on and off
1. Disconnect any devices under test (DUTs) from the Series 2230G before turning the instrument
on.
2. To turn your instrument on, press the front-panel power switch to put it in the ON position. The
display screen illuminates.
3. To turn your instrument off, press the front-panel power switch to put it in the OFF position.
To avoid fire or electric shock, ensure that the AC input voltage fluctuation does not exceed the
range of the selected AC line voltage rating.
Make sure that wire sizes are sufficient to ensure safety in the case of short circuit and full load test.
See Wire specifications (on page 1-4
) for wire size guidelines.
