Keysight B1505A User’s Guide, Edition 12 3-19
Accessories
If MCSMU, HCSMU, or DHCSMU is used, High Force and Sense must be
connected to Force and Sense used for the high terminal of a device under
test (DUT), respectively. Low Force and GNDU Force must be connected to
Force used for the low terminal of the DUT, and Low Sense and GNDU
Sense must be connected to Sense used for the low terminal of the DUT.
c. Set the DUT on the socket.
d. Close the fixture cover and perform measurement.
CAUTION Do not apply voltage/current over the maximum limit of the socket module.

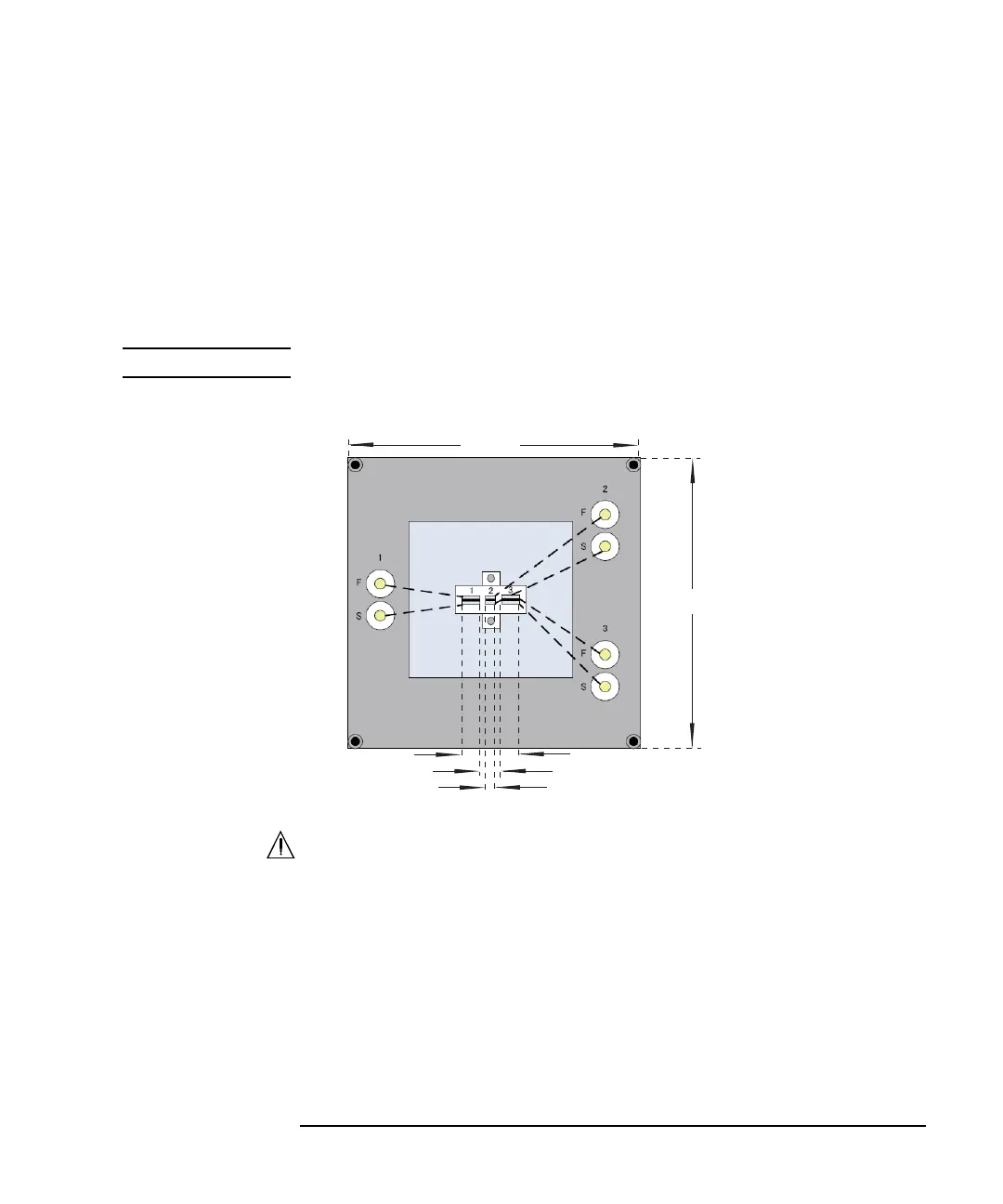

Figure 3-3 Inline Package Socket Module
5. Universal Socket Module (N1259A-011)
This is a blank module, kind of a do-it-yourself kit for supporting variety of
packaged devices. This module can be used by mounting your desired socket or
packaged device and making connections same as the N1259A-010 Inline
Package Socket Module.
To use this module, see the following simple instruction. For the component
locations and dimensions, see Figure 3-4. Also see “Inline Package Socket
Module (N1259A-010)” on page 3-18 to perform measurement.
2
Force
Sense
3
Force
Sense
1
Force
Sense
165 mm
165 mm
3.48 mm
1.78 mm
14 mm
Height: 34 mm
(45 mm including terminal)
(58 mm including socket)
Maximum voltage: 3000 V
Maximum current: 40 A pulse, 2 A dc
