3 Sequencing
106 M8190A User’s Guide
3.8.1.1 Self Armed
Trigger Mode Continuous
After programming, the segment is started automatically and is repeated infinitely.
Time
Offset
Stop
(Abort)
RUN
Offset

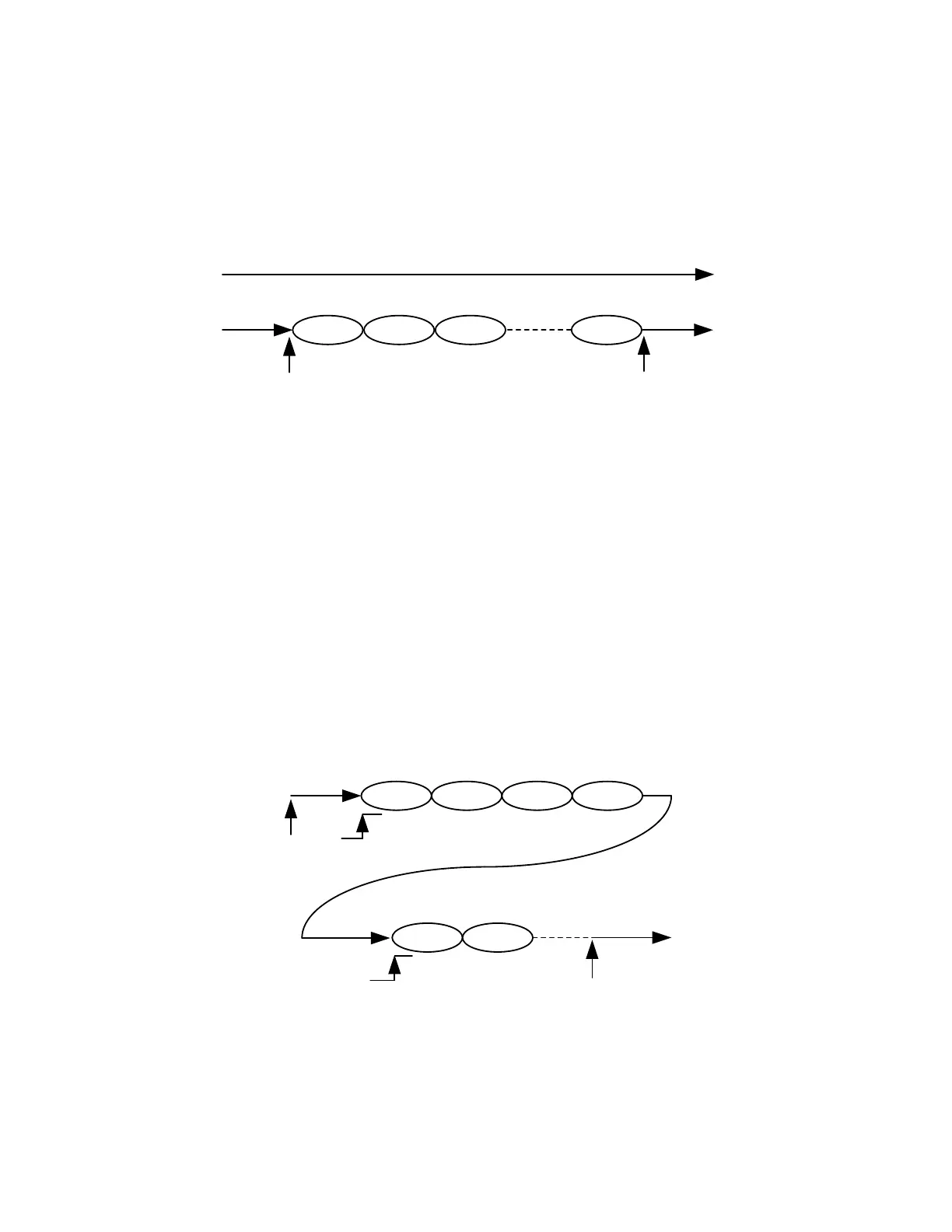

Figure 3-10: Trigger Mode Continuous
Trigger Mode Triggered
An Offset value is provided after programming. A trigger starts the segment.
The following segment advancement modes are available:
 Auto: The segment is executed the number of times specified by its loop count.
Then the last sample is played at the end.
 Repeat: This advancement mode is quite the same like “Auto” with the difference
that an advancement event is required at the end.
 Single: An advancement event is required for each segment repetition.
 Conditional: The segment is played infinitely after receiving a trigger. After being
stopped (See SCPI command :ABORt[1|2]) the offset value is played.
RUN
Trigger
Trigger
Stop
(Abort)
Offset
Offset
Last
Value
21 3 4
1 2
Figure 3-11: Segment Advance = Auto
