Use this tab to create a sequence with one or more sequence entries. The
characteristics of a sequence depend on the parameters’ values of the constituent
entries. This tab allows to create, configure, and send new sequence configuration to
the instrument and also to extract the existing one.
Please note that scenarios are not supported by the Sequence Table tab.
This tab has the following controls:

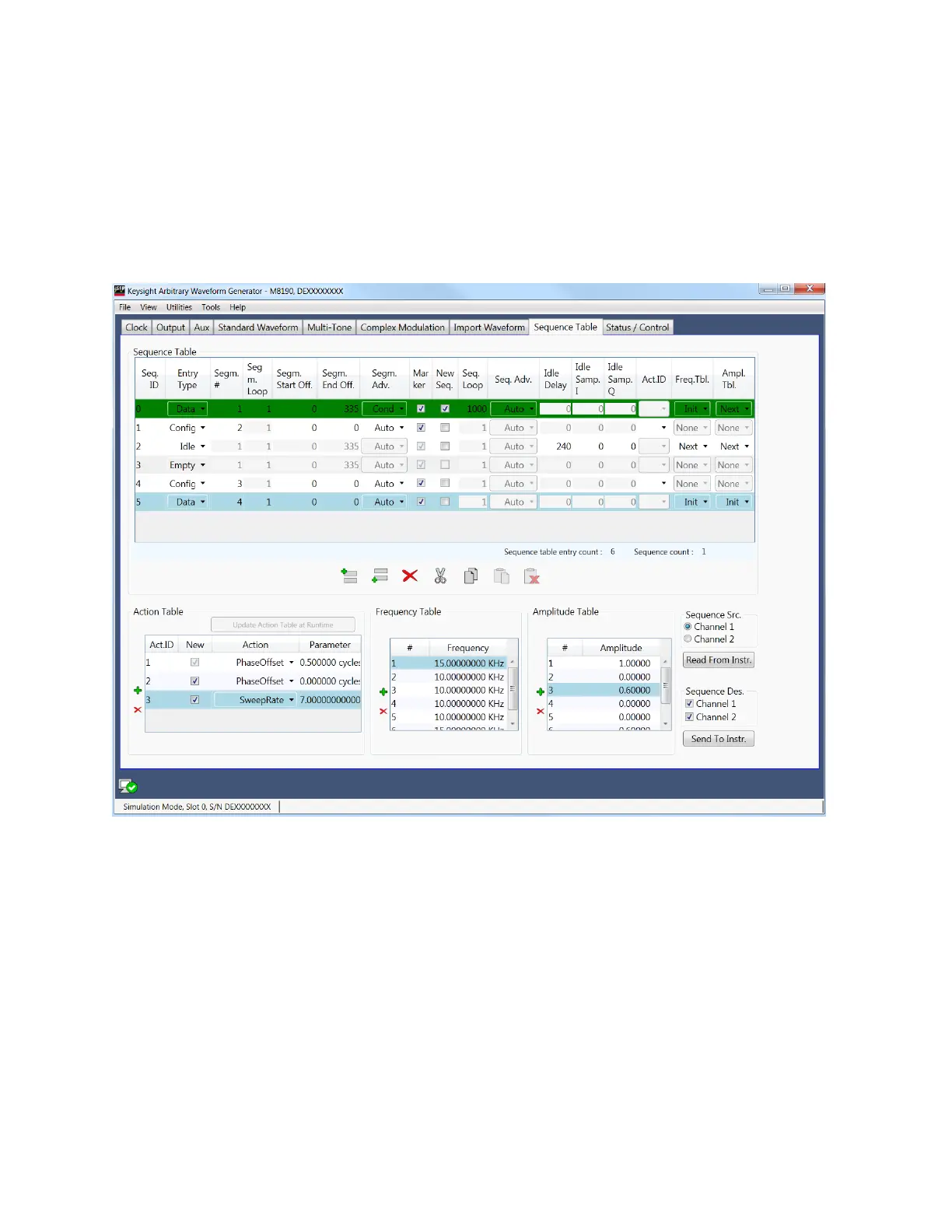

Sequence Table
Seq.ID (Sequence ID)
When a new sequence entry is created, it is automatically allocated a numeric ID
termed as Seq ID. First entry has the Seq.ID as 1, second as 2, and so on. The
total number of sequence entries is displayed by the counter “Sequence table
entry count.”
Entry Type
Data: Each data entry has a waveform segment associated with it which is
played during sequence execution. It is also possible to specify the
number of iterations for the segment. Amplitude and frequency table is
available for standard data entry in interpolated mode.
