5 Streaming
156 M8190A User’s Guide
5.3.3.2 Sample Data Storage Using a RAID System
This example shows the use of streaming with data stored on hard disks. A RAID system
is used to generate an adequate read performance.

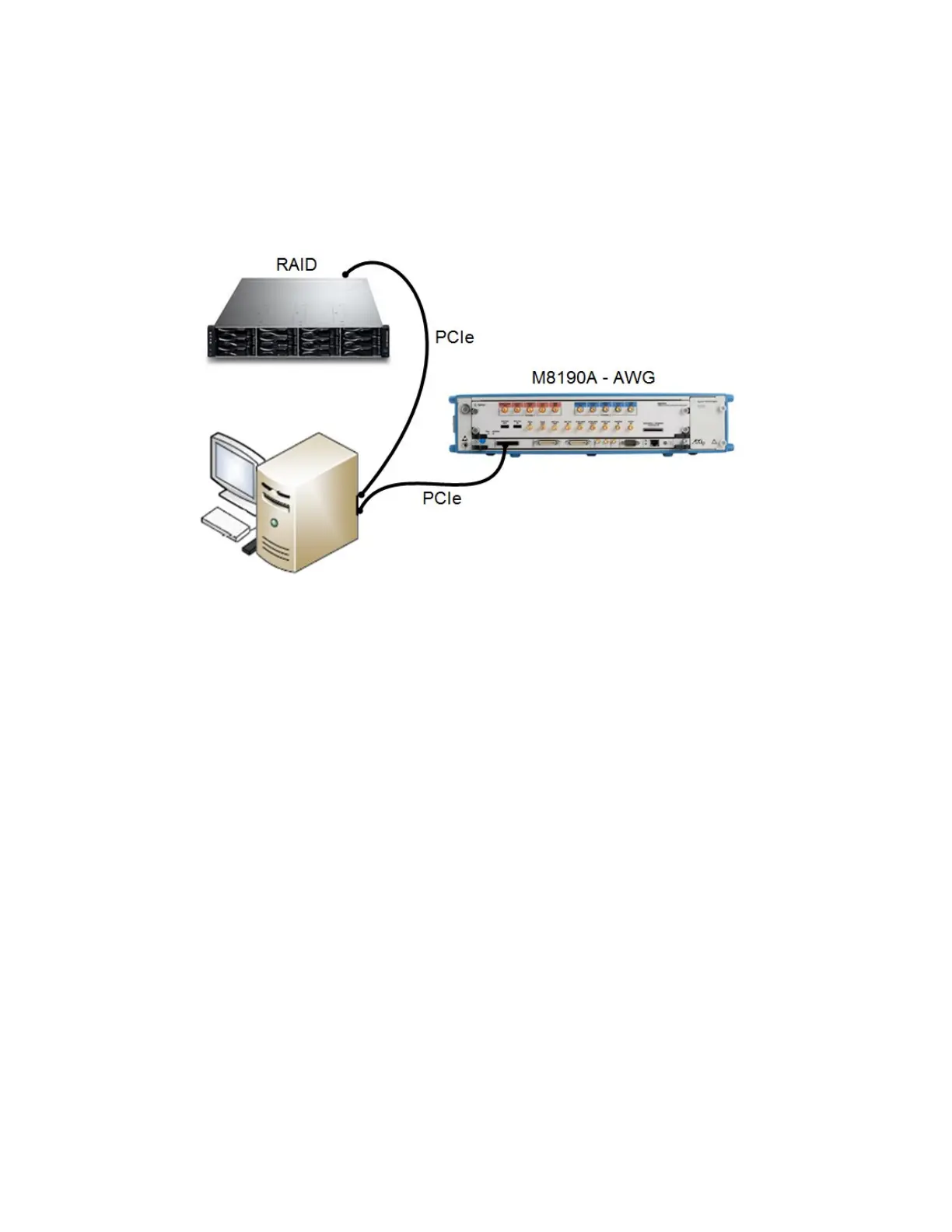

Figure 5-4: Sample Data Storage Using a Raid System
The use of RAID systems allows a playtime that is only limited by the size of the hard
disks. The measured download rate with a 16 TByte RAID system from JMR Electronics
(Model AGIL-G4-16T) connected to a Dell Precision T7600 PC is around 620 MByte/s
providing a modulation bandwidth of around 130 MHz.
