9 Programming the Instrument
9.4 Status Register System & STATus Subsystem

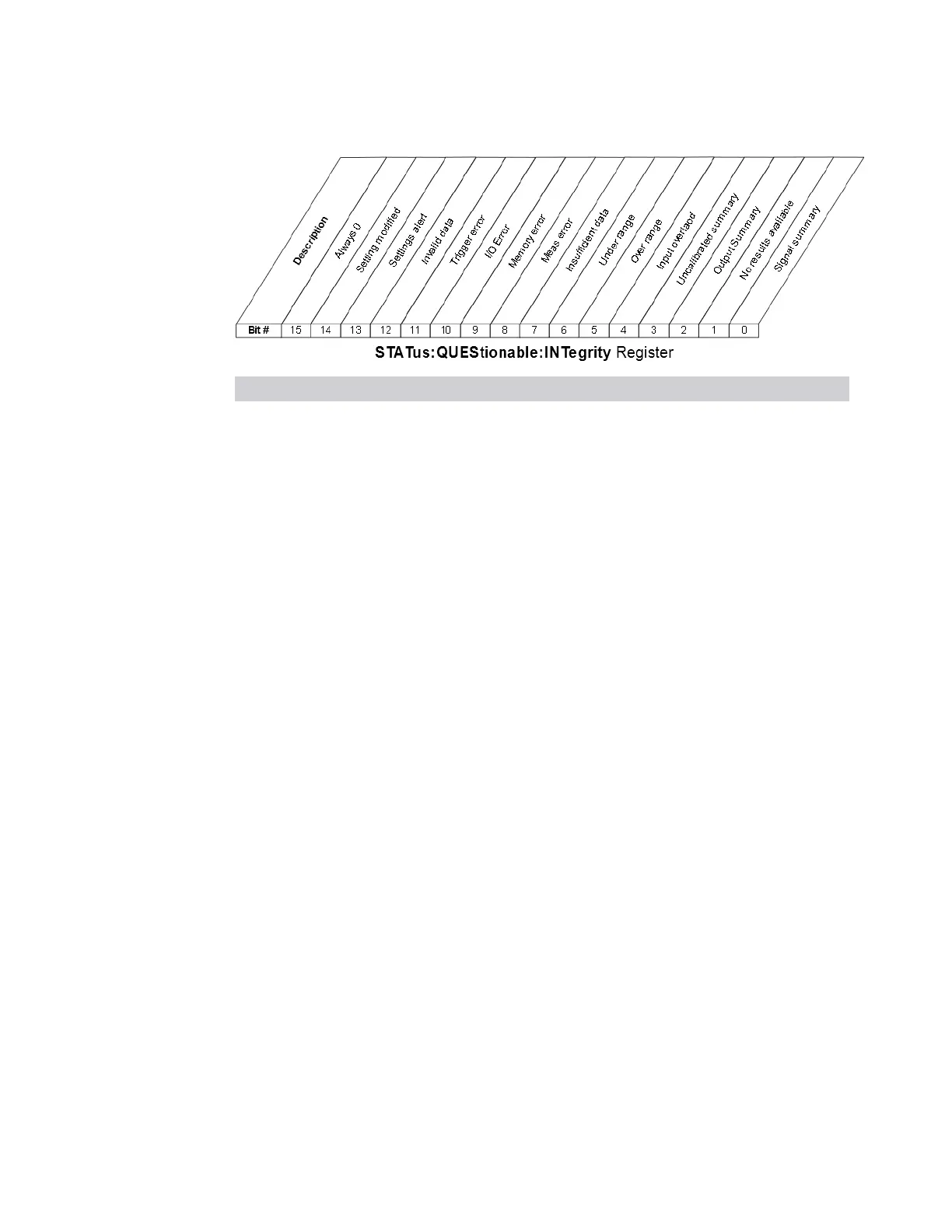

Bit Condition Operation
0 Signal Summary The summary bit for the "Questionable Integrity Signal Register" on
page 2621
1 No Result The current measurement is incompatible with a setting or
combination of settings, such as the selected Input, Radio Standard,
etc.
2 Output Summary The summary bit for the "Questionable Integrity Output Register" on
page 2624
3 Uncalibrated
Summary
The summary bit for the "Questionable Integrity Uncalibrated
Register" on page 2627
4 Input Overload A signal overload condition exists
5 Over Range The signal at the input for this measurementis too high. You should
increase the attenuation or decreasethe signal level
6 Under Range The signal at the input for this measurement is too low. You should
decrease the attenuation or increasethe signal level
7 Insufficient Data Signal or settings conditions did not allow enough data to be taken
during an acquisition for a valid measurement
8 Meas Error (not currently in use)
9 Memory Error There is not enough memory to perform the desired operation
10 I/O Error I/O settings are preventing communication with an instrument or
peripheral
11 Trigger Error Signal or settings conditions did not allow enough data to be taken
during an acquisition for a valid measurement
12 Invalid data The Invalid Data indicator (* in upper right of display) is on, indicating
that onscreen data may be stale and not match the current settings
13 Settings Alert Settings are not right for a valid measurement, but the instrument is
nonetheless allowing a measurement to be taken
14 Setting Modified Settings are not right for a valid measurement, and the instrument is
using different settings than the ones you entered in order to take a
measurement
Filter Registers
