7
INFORMATION FOR DISASSEMBLY
EN 96

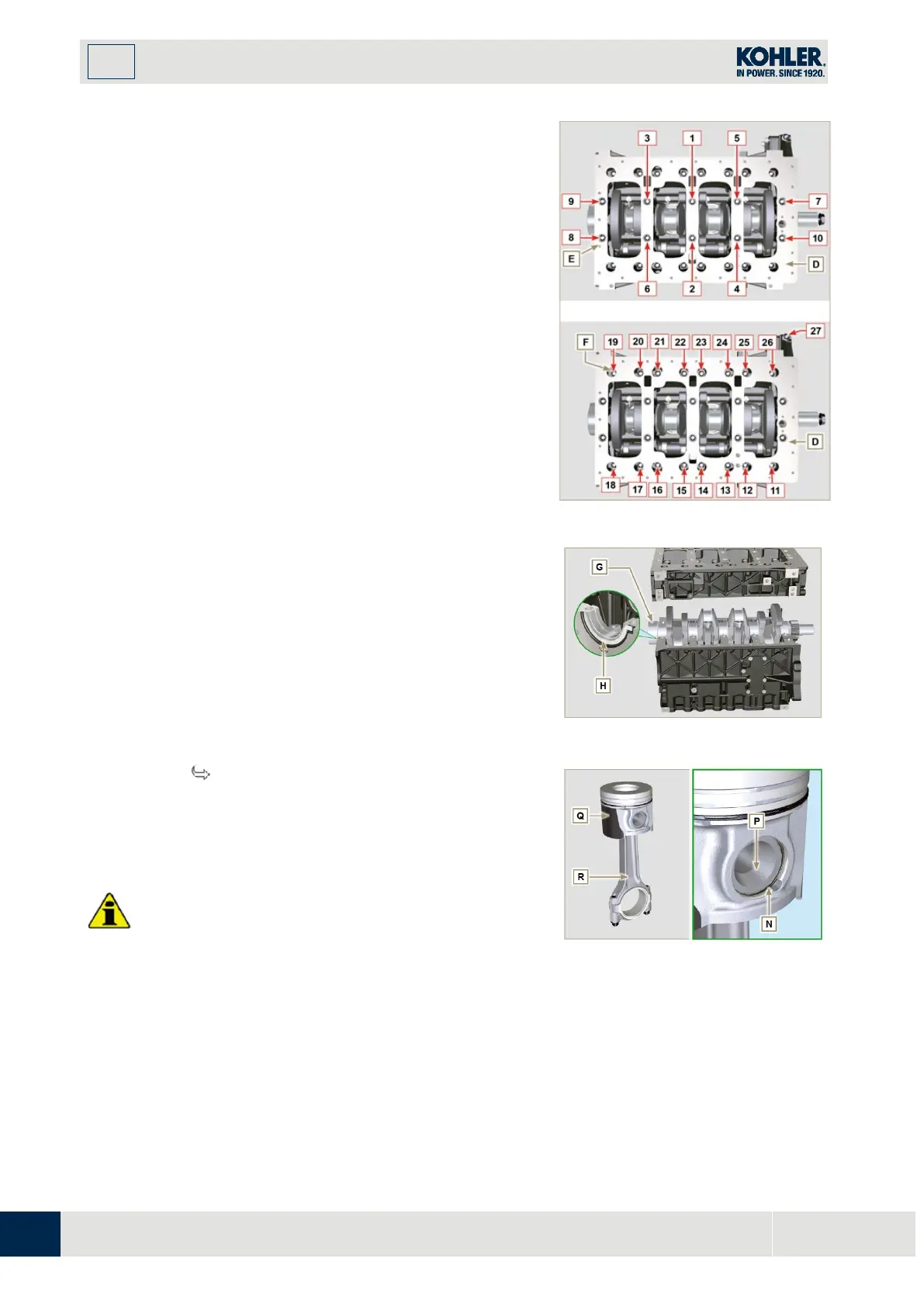

7.14.3 Lower semi-crankcase
1.
Undo capscrews E and F by following the orde
r
i
ndicated in the figure.
2.
Remove the lower semi-crankcase D and store it in a
suitable container for washing.
Fig 7.49
7.14.4 Crankshaft
Re
move:
1.
Crankshaft G.
2.
The four shoulder semi-rings H.
1.
R
emove the retainer ring N.
2.
Remove the pin P to separate the piston Q from the
connecting rod R.
I
mportant
•
If they are not replaced, keep the components together
(connecting rod - piston - gudgeon pin) by using
references in order to prevent them from getting mixed
up during assembly.
Fig 7.52
