Kohler KDI 2504TM Workshop Manual

INFORMATION FOR DISASSEMBLY
7
97
EN

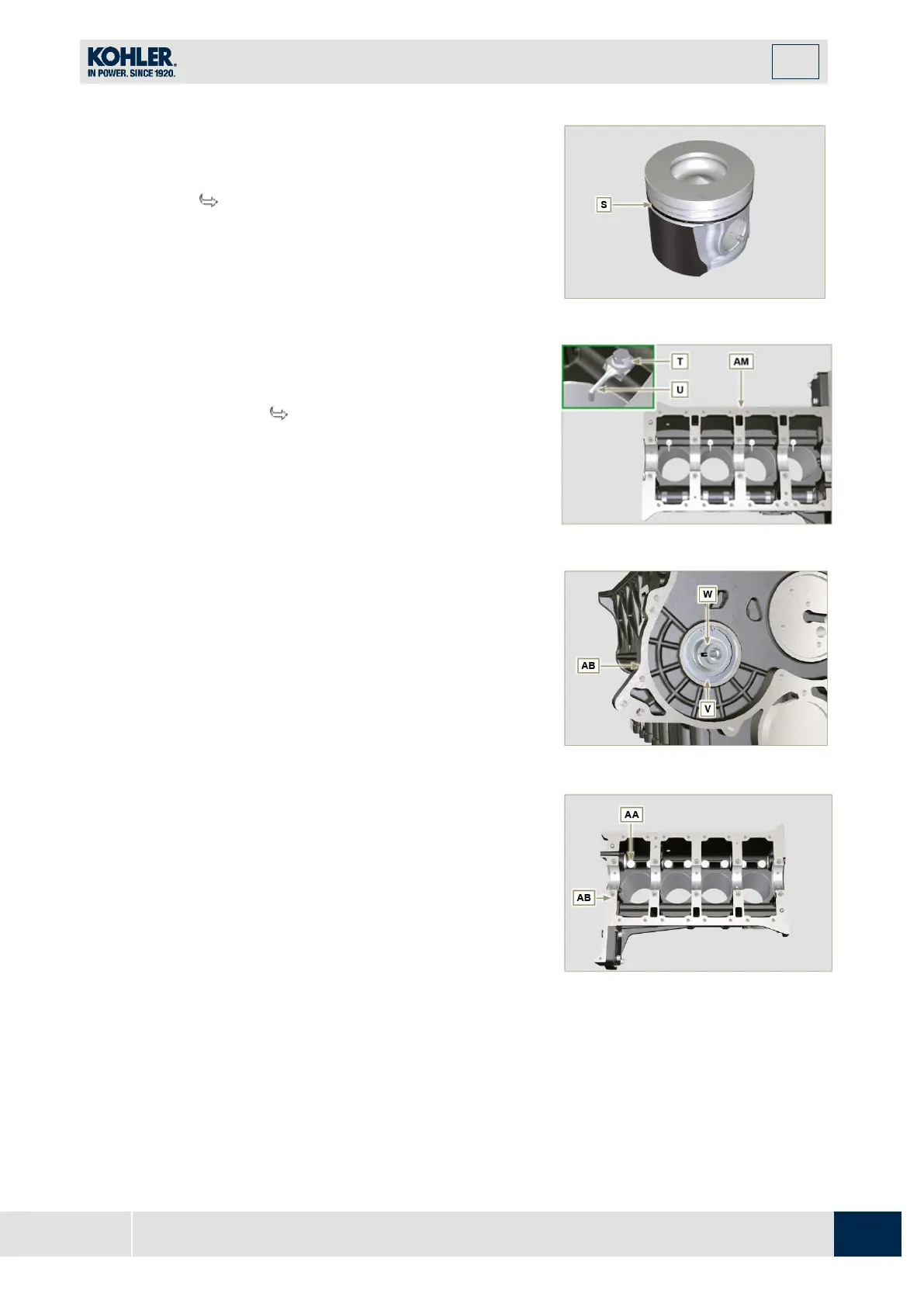

7.14.5.1 Rings ( )
1.
Remove the seal rings S.
Fig 7.53
7.14.6 Oil spray nozzles
( )
1.
Undo the screws T and remove the spray nozzles U
from the upper semi-crankcase AM.
Fig 7.54
7.14.7 Camshaft
1.
Remove the retainer ring V.
2.
Extract the camshaft W from the upper crankcase AB.
Fig 7.55
7.14.8 Camshaft tappets
1.
With a magnet, remove the tappets AA from the upper
semi-crankcase AB.
Fig 7.56
