Appendices
247

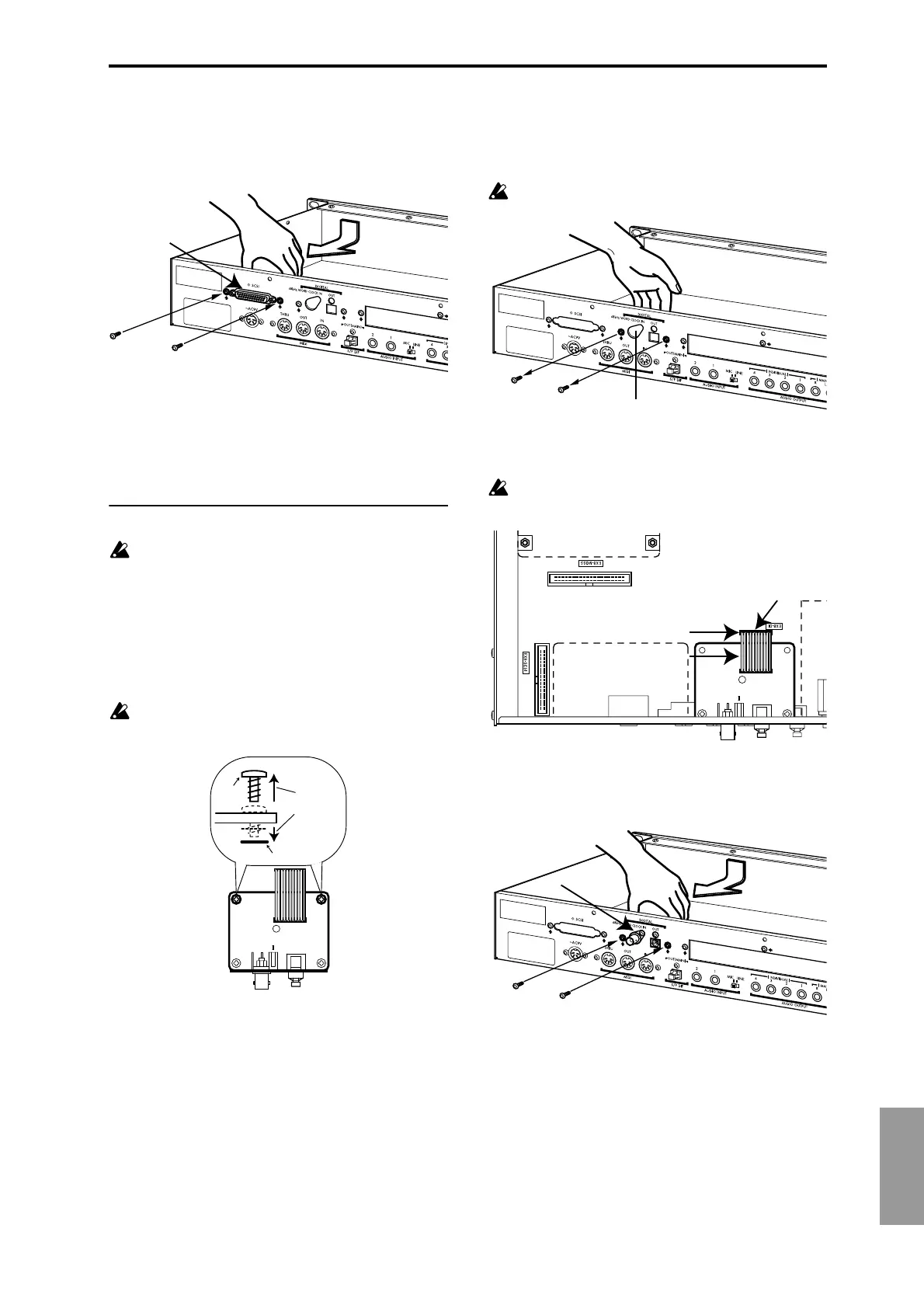

6 Insert the SCSI connector of the EXB-SCSI through the
opening so that it extends from the rear panel of the TRI-
TON-Rack. Hold the EXB-SCSI with one hand, and use
the two screws that you removed in step
4 to fasten the
connector from the outside of the rear panel.
7 Reattach the cover by reversing the steps by which you
detached it.
8 When all steps have been completed, turn on the power
and make sure that the EXB-SCSI has been installed cor-
rectly. (☞“Checking after installation”)
3–3. Installing the EXB-DI
You must leave the AC/AC power supply disconnected
until you finish the entire process of removing the lid,
installing the option board or memory, and reattaching
the lid.
1 Verify the location where the EXB-DI will be installed.
(☞the lower diagram in “2. Detaching the lid”)
2 Remove the EXB-DI from its bag.
3 Remove the two screws and washers from the two cor-
ners of the board
Be careful to save the screws that you remove. Some
models that can use the EXB-DI, will require these two
screws.
4 Remove the two screws holding the (DI) cover that
blocks the installation opening of the EXB-DI, and
remove the (DI) cover. The two screws you removed will
be used to fasten the EXB-DI.
The (DI) cover you removed will not be used. Take it
out so that it is not left inside the TRITON-Rack.
5 Attach the cable as shown in the diagram. Firmly press
the cable all the way into the connector.
Do not touch any part of the circuit board other than
the connector to which you are connecting the cable.
6 With the connectors of the EXB-DI protruding from the
rear panel of the TRITON-Rack, support the EXB-DI with
one hand and use the two screws you removed to fasten
the EXB-DI from the rear of the TRITON-Rack.
7 Reattach the cover by reversing the steps by which you
detached it.
8 After you have completed all the above steps, turn on the
power and verify that the EXB-DI has been installed cor-
rectly. (☞”Checking after installation”)
EXB-SCSI
Washer
Screw
Remove
screw and
washer.
Lid (for DI)
Press all the way in
Connector
Cable
Rear panel
EXB-DI
