10 TUNING THE CHASSIS 152
0
0
AA
0
0
BB
0
0
CC
401160-10

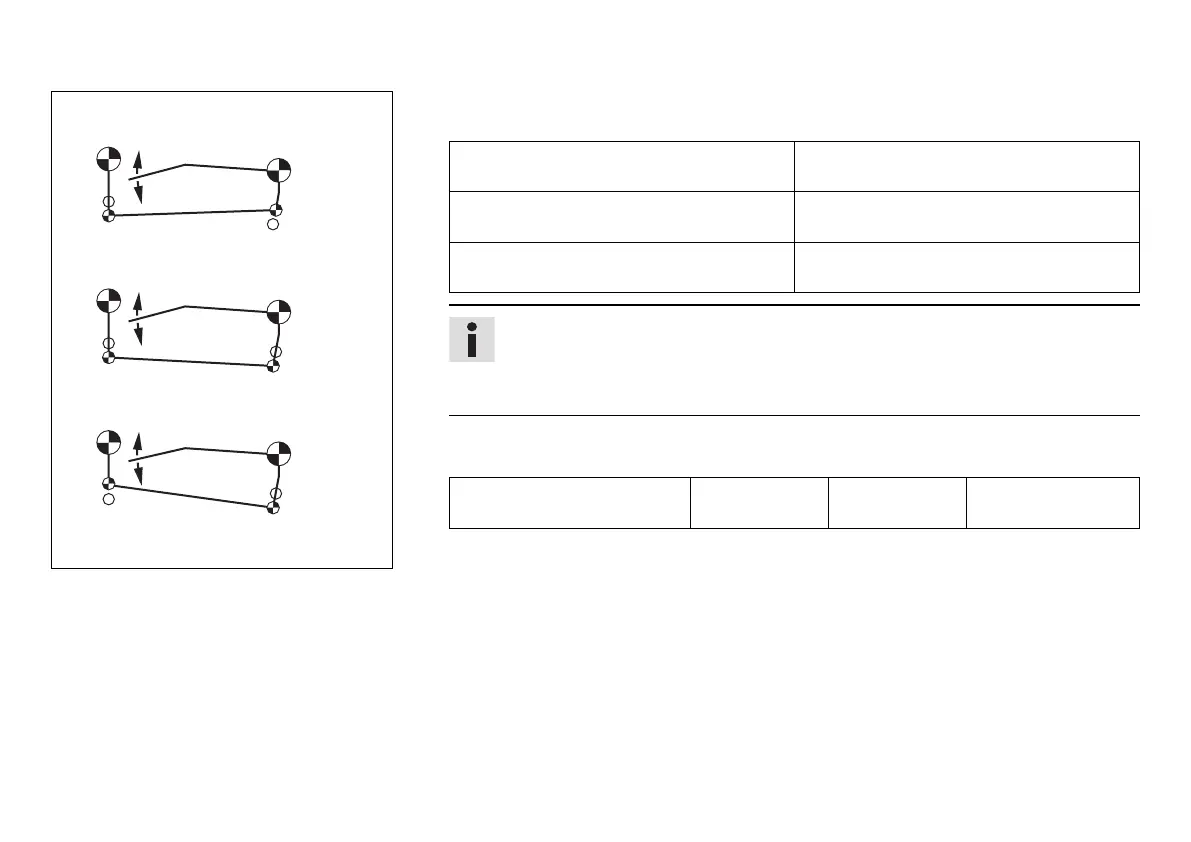

Position the shift rod.
Guideline
Standard
shift lever: upper drill hole,
shift shaft: lower drill hole
Medium shift force, medium shift
distance
shift lever: lower drill hole,
shift shaft: lower drill hole
Shift power high, short shift travel
shift lever: lower drill hole,
shift shaft: upper drill hole
Info
The shift rod can be mounted both on the shift lever variably at an upper or
lower position, and on the reverse gear change of the shift shaft in two differ-
ent positions.
Mount and tighten the screws.
Guideline
Screw, shift rod M6 12 Nm
(8.9 lbf ft)
Loctite
®
243™
