KTM 1190 RC8 R User Manual

10 TUNING THE CHASSIS 157
100757-10
–

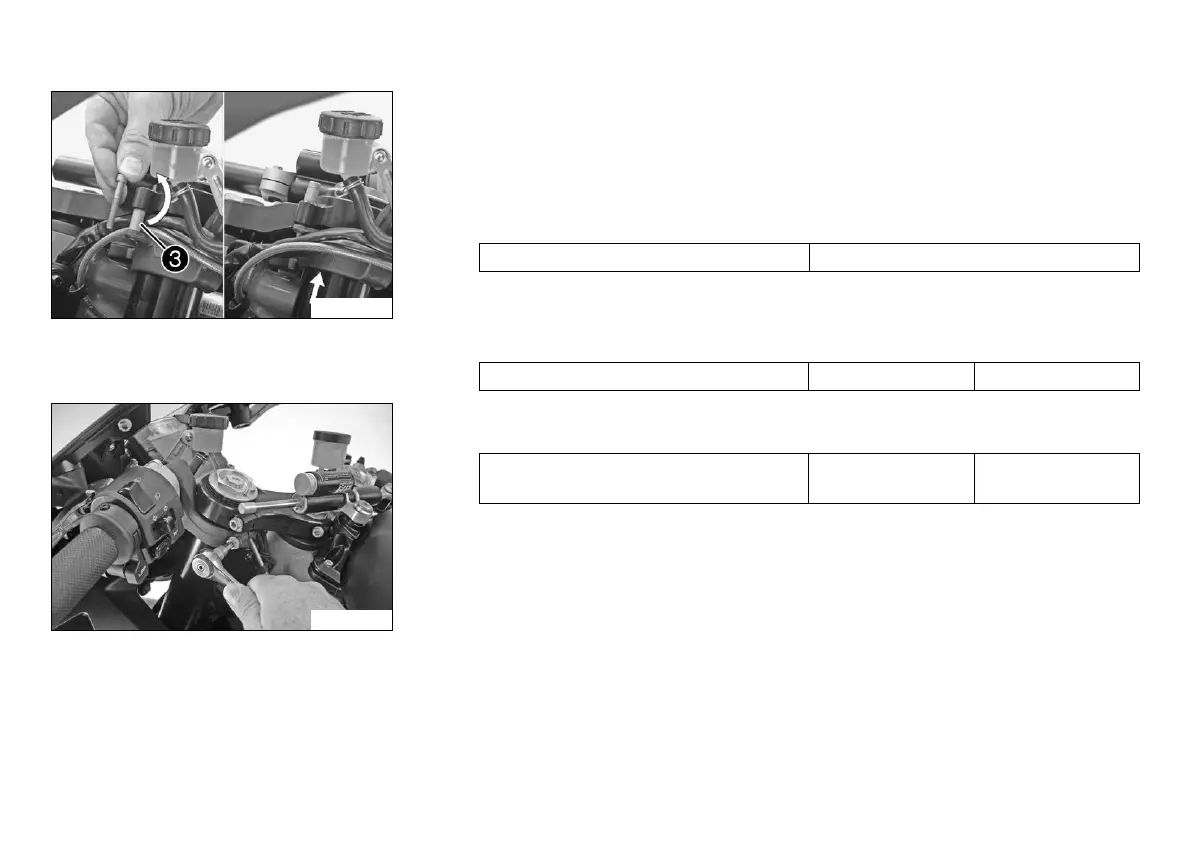

Remove distance sleeve

.
– All cables routed under the upper triple clamp must now be routed under the han-
dlebar stub.
– Push the handlebar stub carefully up to the upper triple clamp. Watch out for the
handlebar position difference.
Guideline
Handlebar position difference 6.5°
– Position the distance sleeve above the triple clamp.
– Mount and tighten screw.
Guideline
Remaining frame bolts M5 5 Nm (3.7 lbf ft)
100759-01
– Tighten the screw.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Move the handlebar to and fro over the entire steering range.
» If the cables restrict the freedom of movement of the steering:
– Correct the cable routing.
» If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
– Establish freedom of movement and reposition the component.

KTM 1190 RC8 R Specifications

General

Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	13.5:1
Transmission	6-speed
Rear Suspension	WP Monoshock
Fuel Tank Capacity	16.5 liters
Dry Weight	184 kg
Fuel System	Electronic fuel injection
Engine Type	V-twin, 4-stroke
Power	129 kW (175 hp) @ 10, 250 rpm
Torque	123 Nm @ 8, 000 rpm
Frame	Chromium-Molybdenum trellis frame, powder coated
Front Brake	2 x Brembo four-piston calipers, 320 mm discs
Rear Brake	220 mm disc, 2-piston caliper
Seat Height	805 mm
