KTM 1190 RC8 R User Manual

10 TUNING THE CHASSIS 158
100759-10

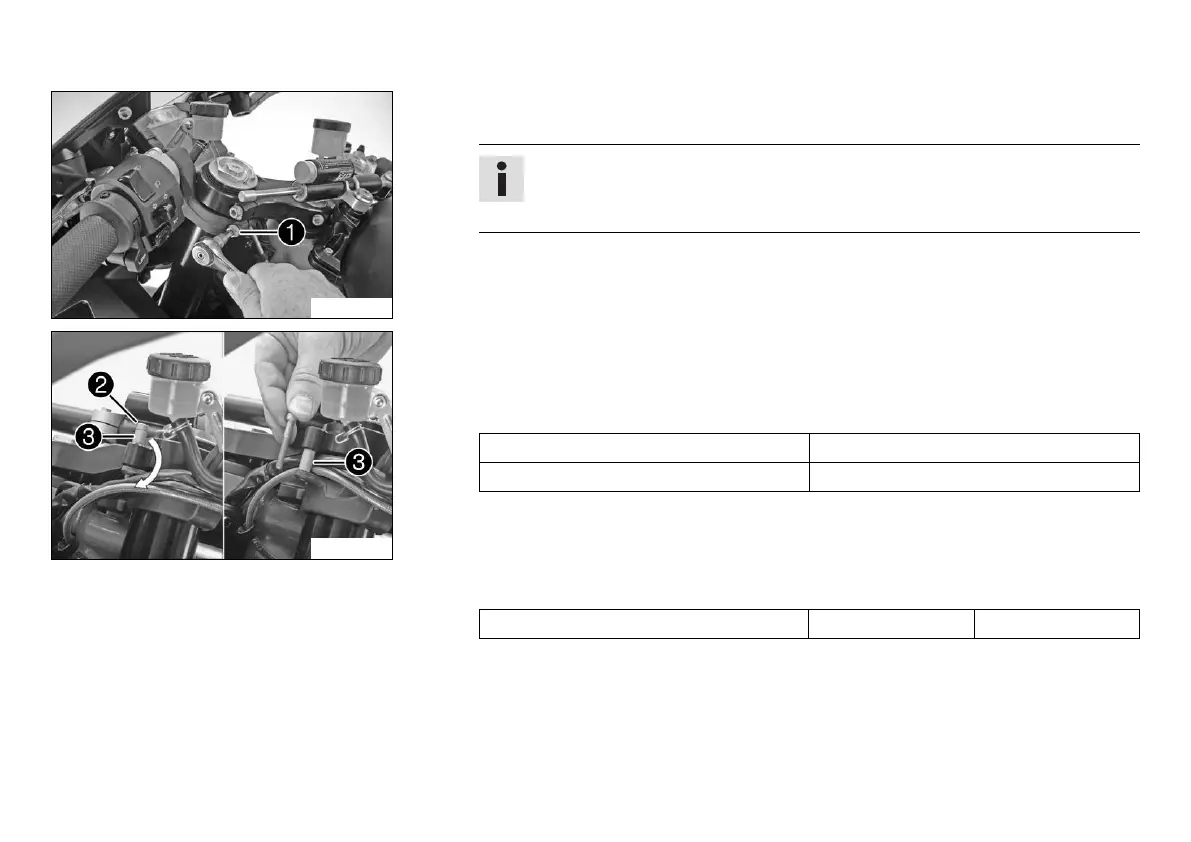

Adjusting the low position of the handlebar stubs:
–
Loosen screw

.
Info
Loosen the screw several turns to prevent damage to the fork paint when
moving the handlebar stub.
100760-10
–
Remove screw

with distance sleeve

.
– Carefully shift the handlebar stub by the length of the distance sleeve. Watch out
for the handlebar position difference.
Guideline
Length, distance sleeve 15 mm (0.59 in)
Handlebar position difference 6.5°
– Lay all cables between the upper triple clamp and the handlebar stub.
– Position the distance sleeve.
– Mount and tighten screw.
Guideline
Remaining frame bolts M5 5 Nm (3.7 lbf ft)

KTM 1190 RC8 R Specifications

General

Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	13.5:1
Transmission	6-speed
Rear Suspension	WP Monoshock
Fuel Tank Capacity	16.5 liters
Dry Weight	184 kg
Fuel System	Electronic fuel injection
Engine Type	V-twin, 4-stroke
Power	129 kW (175 hp) @ 10, 250 rpm
Torque	123 Nm @ 8, 000 rpm
Frame	Chromium-Molybdenum trellis frame, powder coated
Front Brake	2 x Brembo four-piston calipers, 320 mm discs
Rear Brake	220 mm disc, 2-piston caliper
Seat Height	805 mm
