KTM 1190 RC8 R User Manual

10 TUNING THE CHASSIS 159
100761-01
– Tighten the screw.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Move the handlebar to and fro over the entire steering range.
» If the cables restrict the freedom of movement of the steering:
– Correct the cable routing.
» If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
– Establish freedom of movement and reposition the component.
600986-11

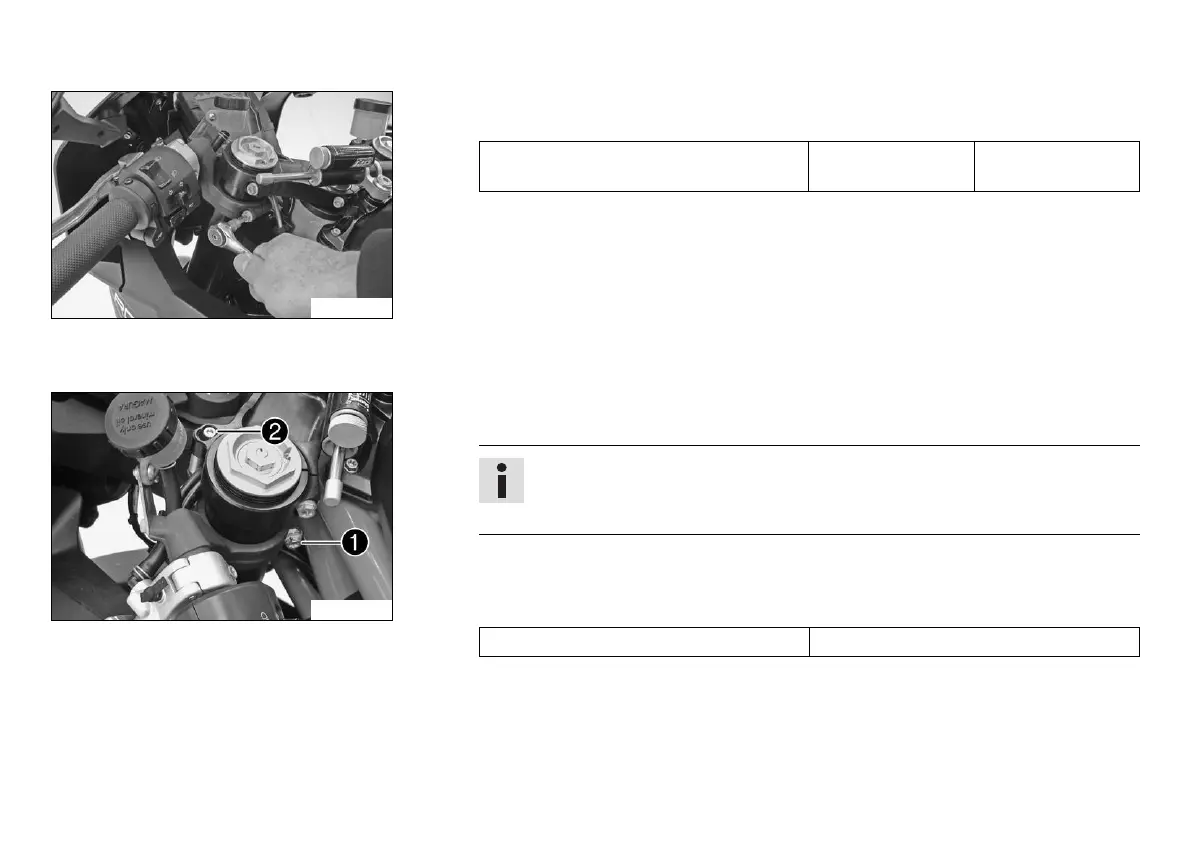

Adjusting the narrow position of the handlebar stubs:
–
Loosen screw

.
Info
Loosen the screw several turns to prevent damage to the fork paint when
moving the handlebar stub.
–
Remove screw

with distance sleeve.
– Carefully turn the handlebar stub toward the fuel tank.
Guideline
Handlebar position difference 6.5°

KTM 1190 RC8 R Specifications

General

Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	13.5:1
Transmission	6-speed
Rear Suspension	WP Monoshock
Fuel Tank Capacity	16.5 liters
Dry Weight	184 kg
Fuel System	Electronic fuel injection
Engine Type	V-twin, 4-stroke
Power	129 kW (175 hp) @ 10, 250 rpm
Torque	123 Nm @ 8, 000 rpm
Frame	Chromium-Molybdenum trellis frame, powder coated
Front Brake	2 x Brembo four-piston calipers, 320 mm discs
Rear Brake	220 mm disc, 2-piston caliper
Seat Height	805 mm
