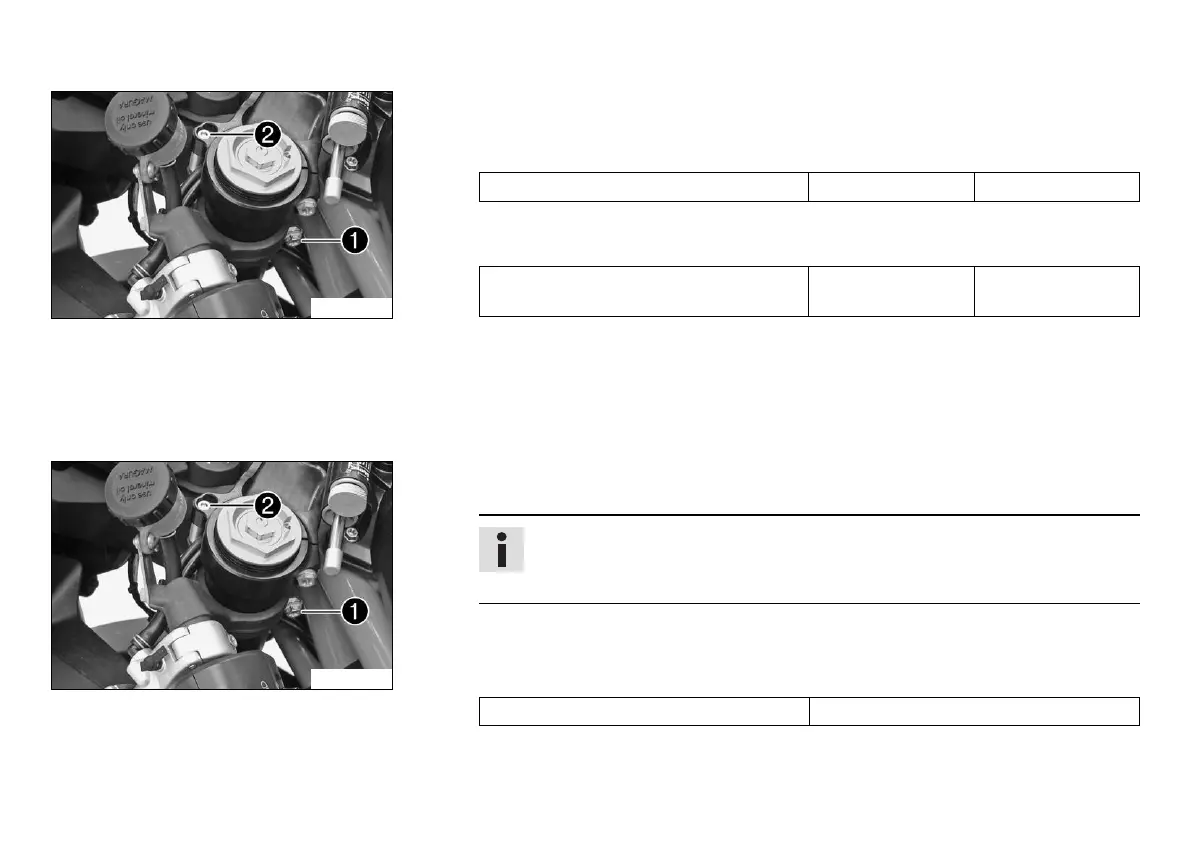

10 TUNING THE CHASSIS 160
600986-10
– Position the distance sleeve.
–
Mount and tighten screw
.
Guideline
Remaining frame bolts M5 5 Nm (3.7 lbf ft)
–
Tighten screw
.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Carefully move the handlebar to and fro over the entire steering range.
» If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
– Establish freedom of movement and reposition the component.
600986-10
Adjusting the wide position of the handlebar stubs:
–
Loosen screw
.
Info
Loosen the screw several turns to prevent damage to the fork paint when
moving the handlebar stub.
–
Remove screw
with distance sleeve.
– Carefully turn the handlebar stub away from the fuel tank.
Guideline
Handlebar position difference 6.5°
