10 TUNING THE CHASSIS 163

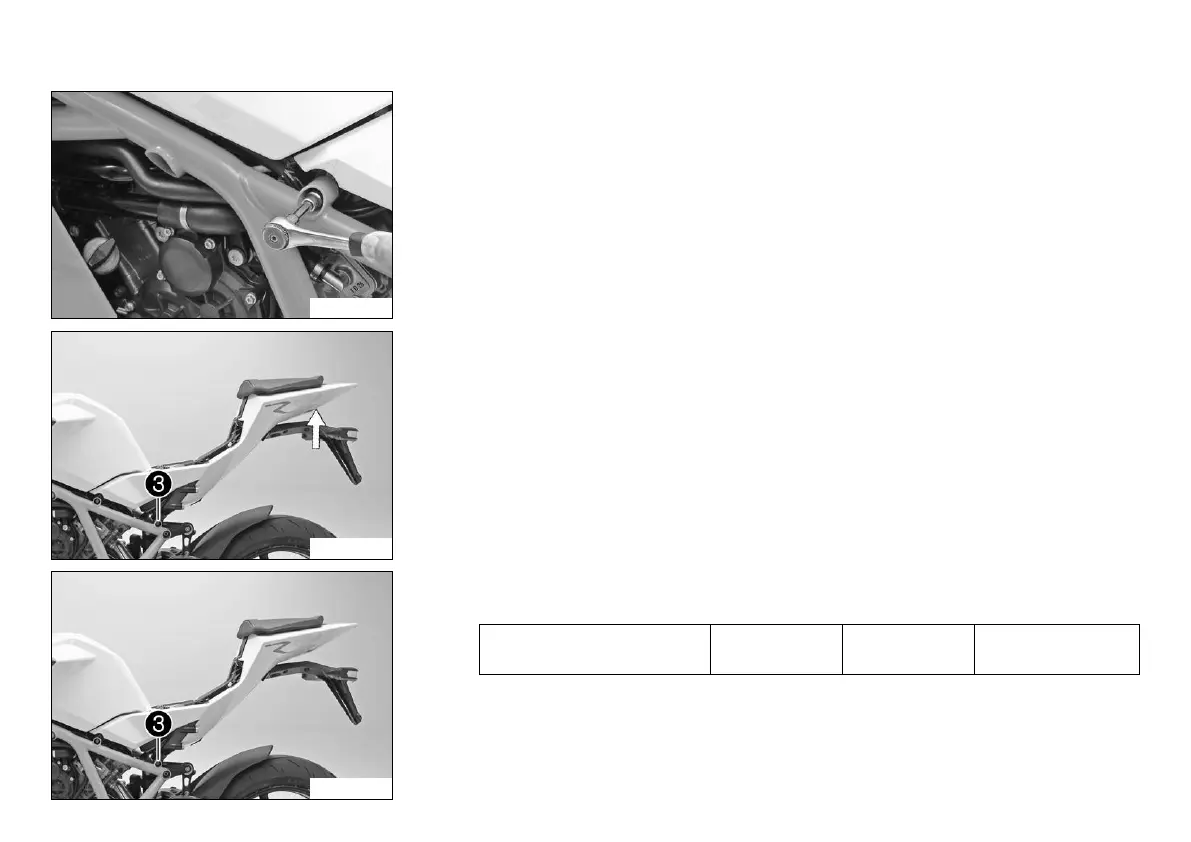

B01319-01
– Mount the screws with the washer on the left and right sides of the vehicle but do
not tighten yet.
B01318-11
–
Remove screws
with the washers on the left and right sides of the vehicle.
– Push up on the subframe until the drilled holes of the frame are aligned with the
holes at the bottom rear of the subframe.
B01318-12
–
Tighten screws
on the left and right sides of the vehicle.
Guideline
Screw, subframe M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
