13 WHEELS, TIRES 192
C00337-10
–

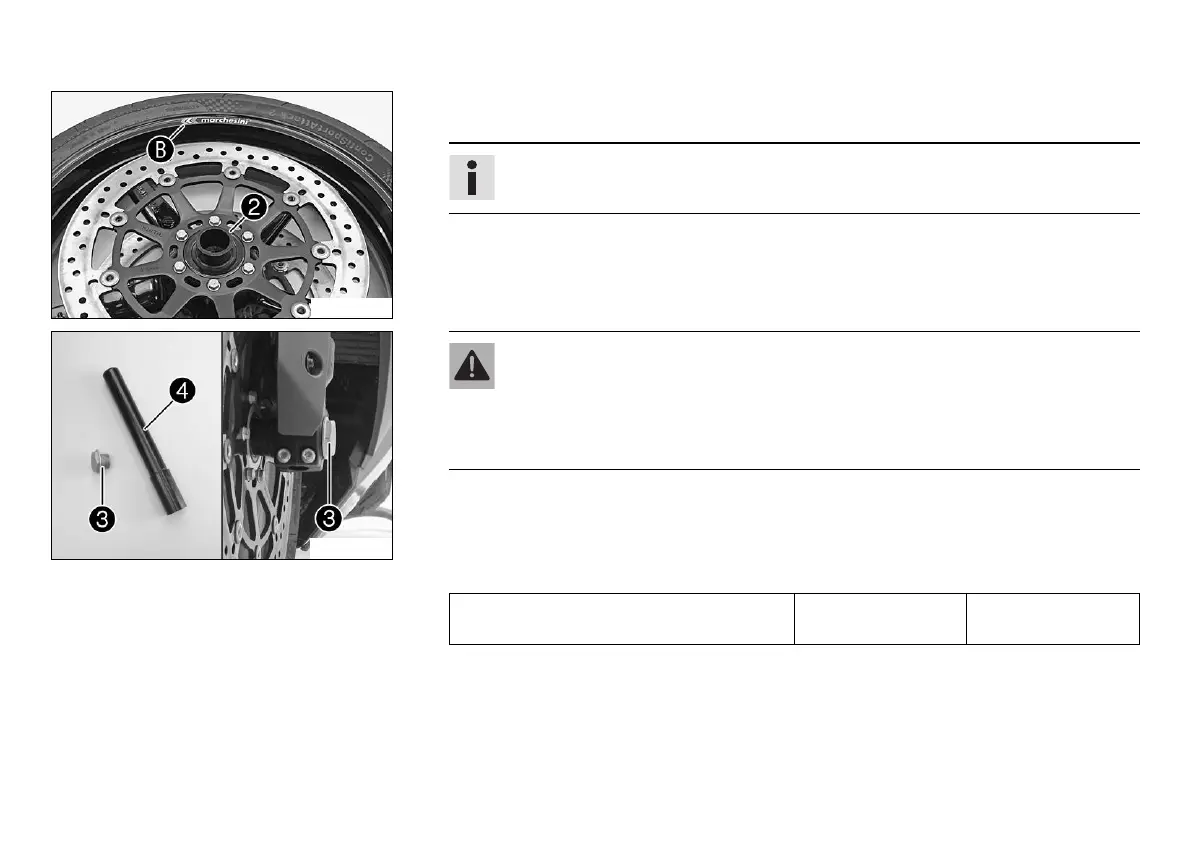

Insert the wide spacer on the left-hand side
(when looking in the direction of
travel).
Info
The arrow
indicates the direction of rotation of the front wheel.
– Insert the narrow spacer on the right-hand side (when viewed in the direction of travel).
B00584-10
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the
brake discs.
– Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
–
Clean screw
and axle
.
– Lift the front wheel into the fork, position it, and insert the wheel spindle.
–
Mount and tighten screw
.
Guideline
Bolt, front axle M25x1.5 45 Nm
(33.2 lbf ft)
